Transparent Inner Housing (1*1) / Cold runner / Three-plates mold No.19015 & 19016
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 640.000 X 541.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 1158KG | Gate | Pin Point Gate |
| Part Material | PC/TPU | Slide | 3 |
| Lifter | 3 | ||
| High Light | 180T tpu material injection molding,500k Shots tpu material injection molding,LKM tpu material injection molding |
||
Product Description
Transparent Inner Housing (1*1)
No.19015 & 19016
☆ Custom mold base P/N: FCI4050.A140B150C130 is adopted
☆ Better meet the design needs of mold
| Brand | Origin | Net weight |
| Chitwing | Guangdong, China | 1158kg |
| Type | Standard | Length | Width | Height | Net weight | IMM tonnage | |
| Three-plates mold | LKM | 400 | 640 | 541 | 1158kg | 180 (T) | |
| Considering the mass production, production cost, quality and cycle time, this three-plate mold is designed with reasonable 3 slides and 3 lifters to better support the precise molding. Partial surfaces polished with VDI 18#; harden the cavity and core with 1*1/S136 to have good hardness and anti-wearing performance, with tool life up to 500k shots. The mold good fitted, with no leakage, stable cavity pressure, uniform wall thickness; molded parts have smooth surface, sharp edges, no burrs, with precise thread and uniform thickness | |||||||
| Injection/runner type | |
| Cold runner |

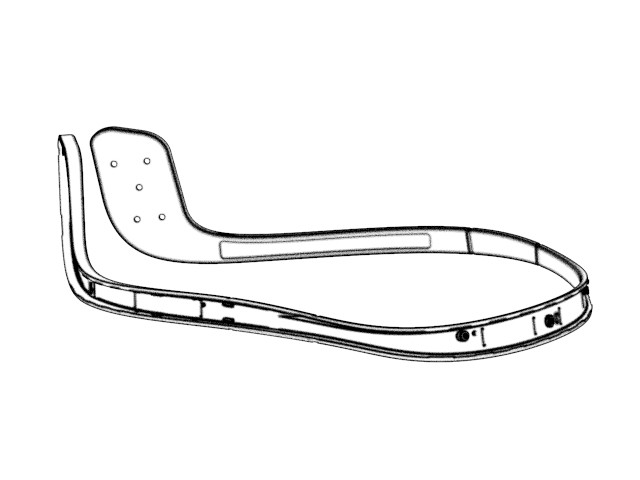

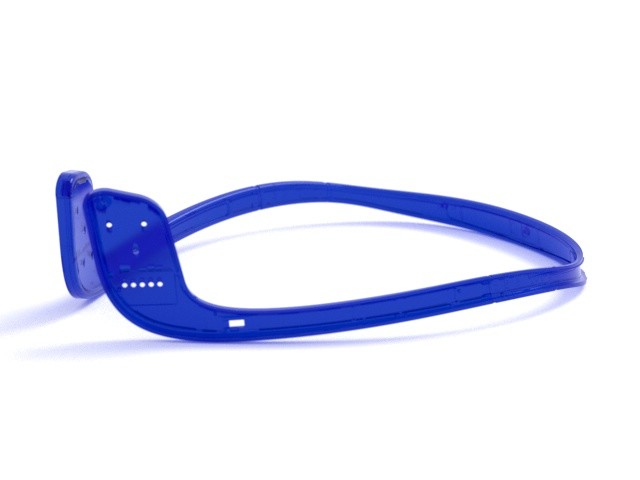

| Part ① Material ② Size ③ Weight | |||||||
| ① PC/TPU | ② 129.44 X 163.28 X 60.35mm | ③ 9.84g | |||||

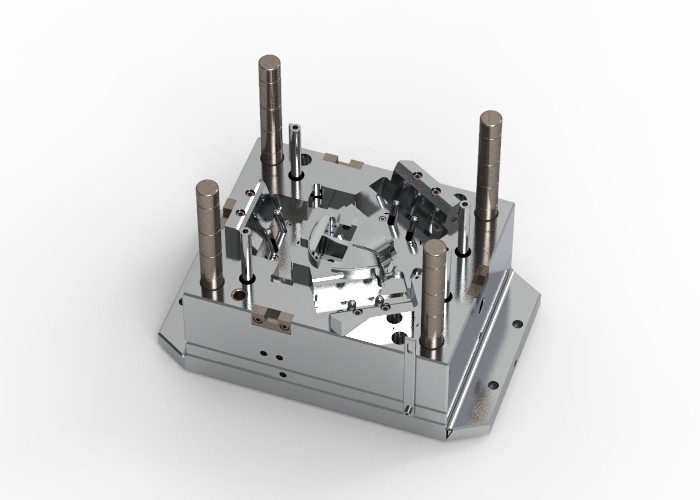

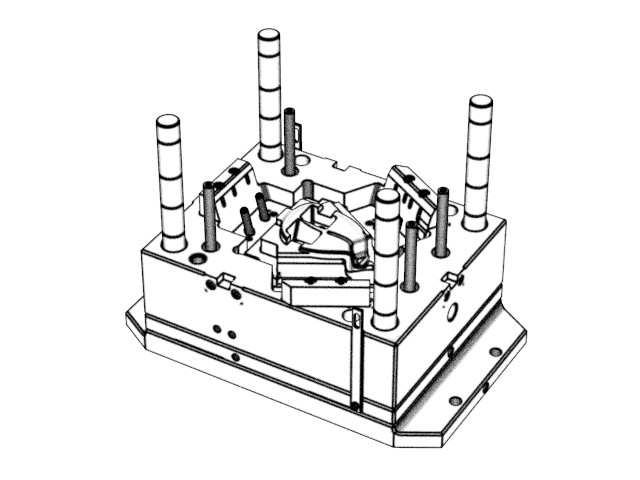

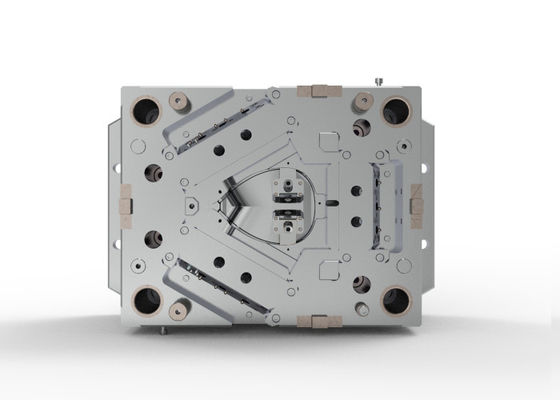

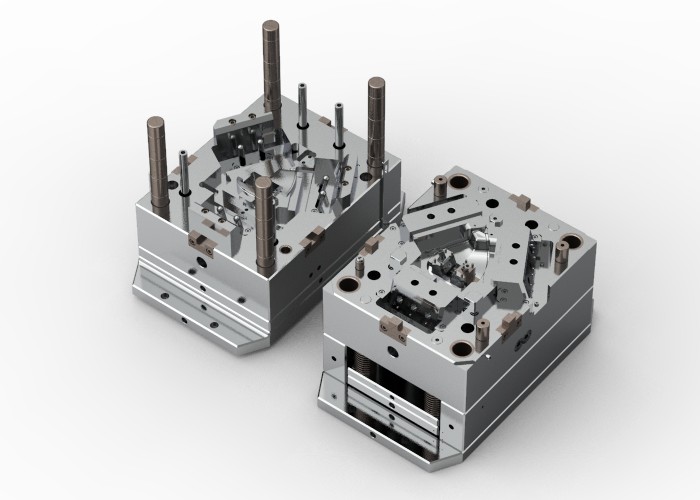

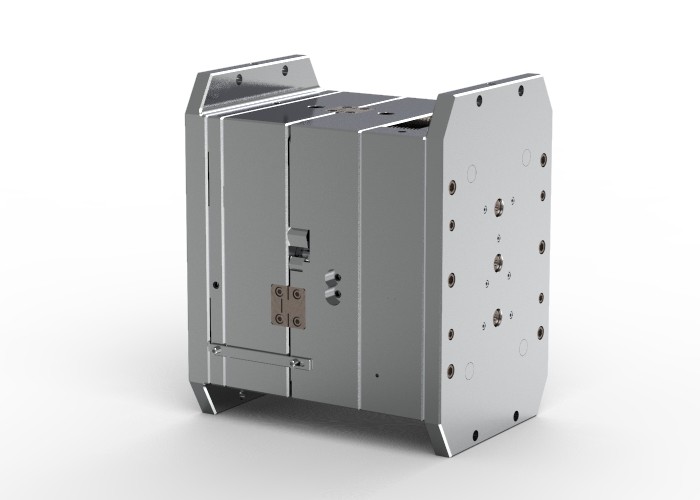

Display diagram
