Housing Base (1*16) / Hot runner / Three-plates mold No.24309 & 24310
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | E -cigarettes |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400 X 660 X 545mm | IMM Tonnage | 250（T） |
|---|---|---|---|
| Mold Weight | 505（KG） | Part Material | PC+ABS |
| Standard | LKM | Type | Three-plates Mold |
| Gate | Pin Point Gate | Design Software | (3D)UG 4.0/ (2D）CAD |
| High Light | 250T Double Injection Molding,LKM Double Injection Molding,500k Shots Three Plate Injection Molding |
||
Product Description

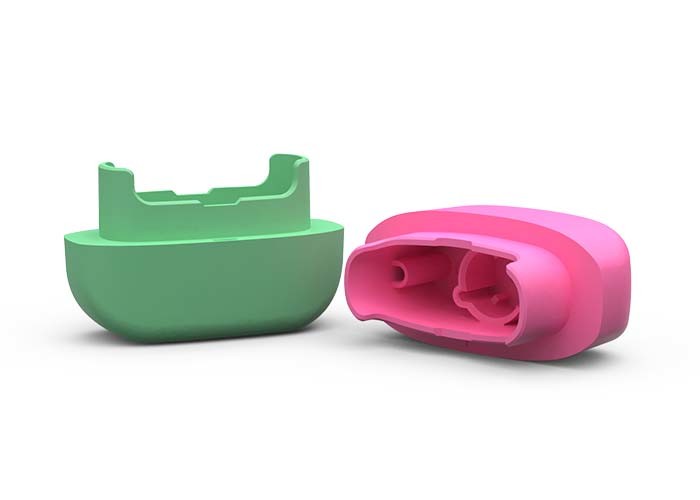

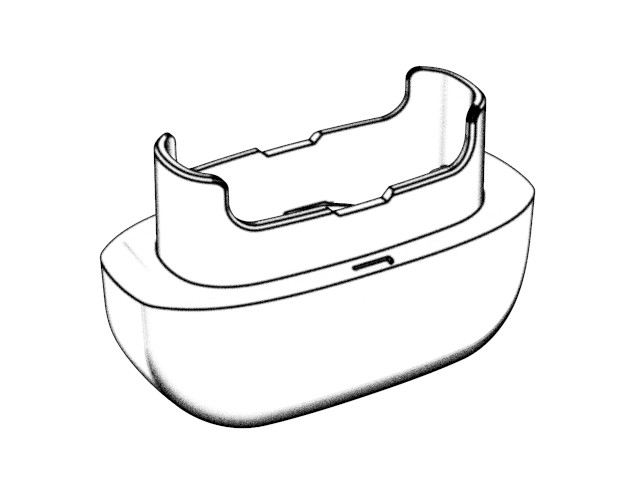

Housing Base (1*16)
No.24309 & 24310
| Mold information | Standard mold base P/N: CI4050.A60 B60 C100 | Net weight | ||||||
| Brand | Chitwing | Length | 400 | Width | 660 | Height | 545 | 505KG |
Origin: Guangdong, China
Injection/runner type: Hot runner
Features: 2k mold
| Surface finish | |||||
| Second-color A surface polished to SPI-A2 | First-color A surface EDM with VDI 15# | ||||
| Cavity | Harden (1*2/S136) | Core | Harden (1*2/S136) | ||
| The fully processing by Chitwing has greatly improved the anti-wearing performance, anti-seizure and anti-fracture performance. The mold good fitted with a very high part quality | |||||||
| Gate | Type | Part material | Standard |
| Pin point gate | Three-plates mold | PC+ABS | LKM |
IMM tonnage: 250T
Part weight: 1g+1.1g
Size: 12.13 * 15.54 * 25.44mm

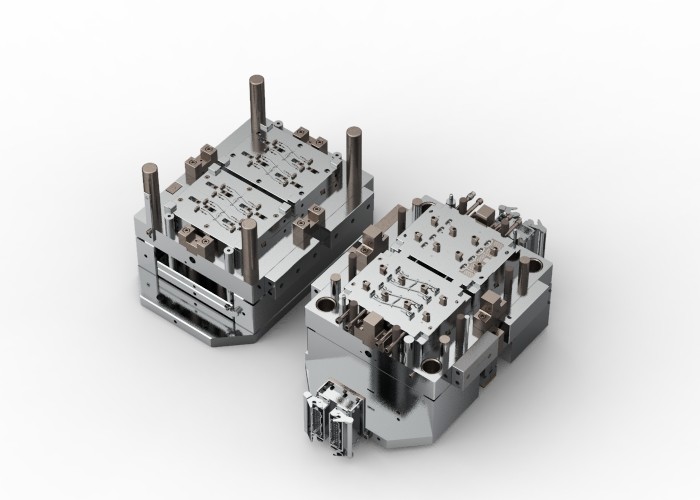

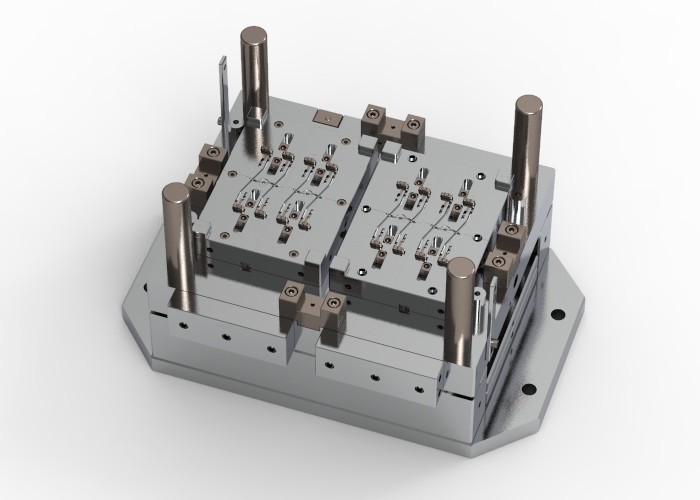

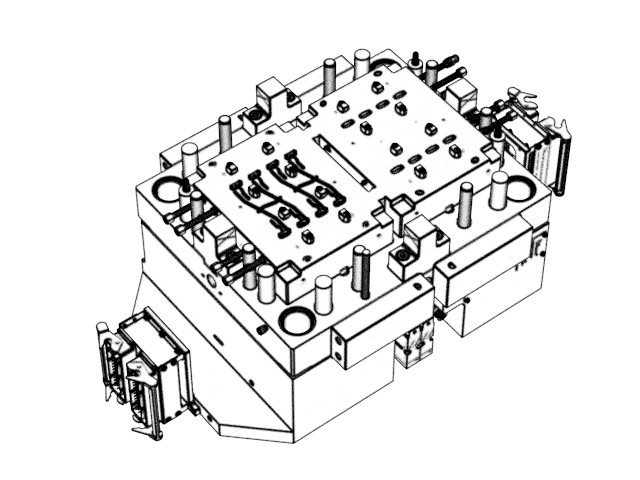

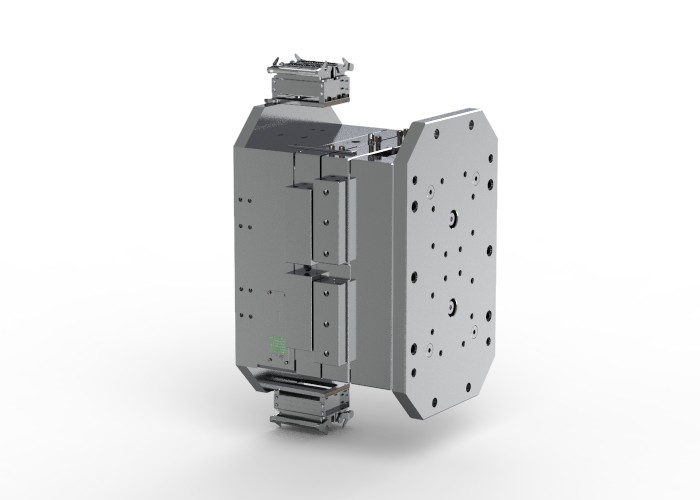

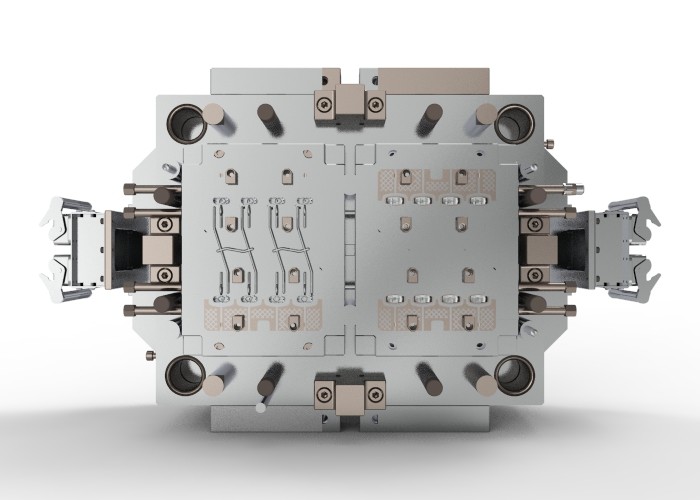

Display diagram
