Transparent Housing Base (1*16) / Hot runner / Three-plates mold No.24309 & 24310
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | E -cigarettes |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Double-shot Molding | Size | 400 X 660 X 545mm |
|---|---|---|---|
| IMM Tonnage | 250（T） | Mold Weight | 505（KG） |
| Standard Mold Base P/N | CI4050.A60 B60 C100 | Part Material | PC+ABS |
| Part Weight | 1g/1.1g | Injection/runner Type | Hot Runner |
| Standard | LKM | Gate | Pin Point Gate |
| Highlight | Housing Base Double Injection Molding,500k Shots Double Injection Molding,LKM three plate mold |
||
Product Description

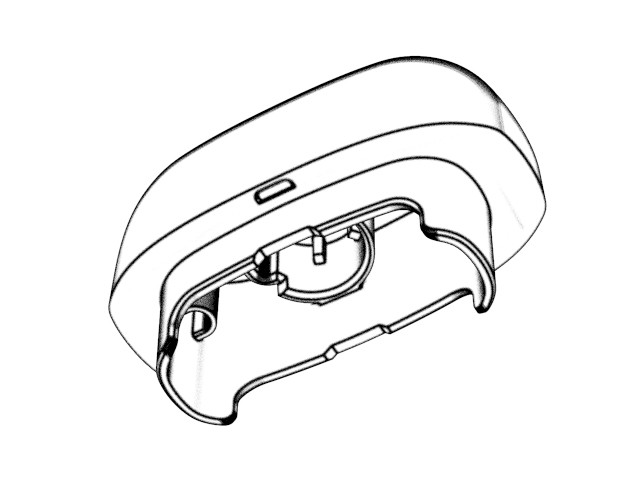

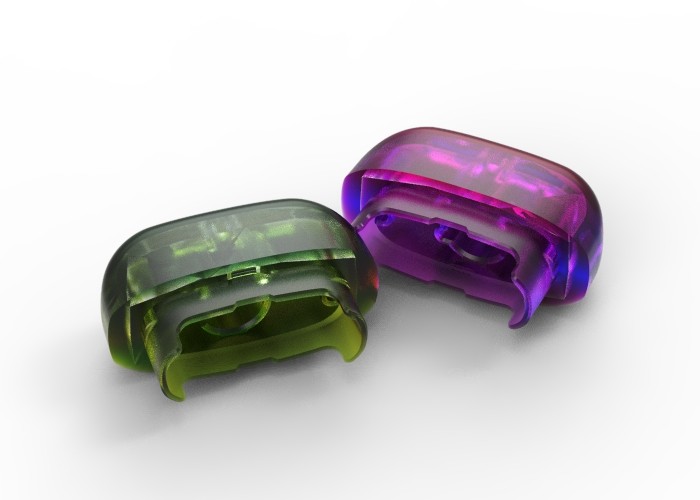

Transparent Housing Base (1*16)
No.24309 & 24310
| Mold information |
Standard mold base P/N: CI4050.A60 B60 C100 |
Net weight | ||
| Brand | chitwing | 505KG | ||
| Origin | Guangdong, China | Length | 400 | Features |
| Standard | LKM | Width | 660 | 2k mold |
| Type | Three-plates mold | Height | 545 | |
Standard: LKM
Injection/runner type: Hot runner
Gate: pin point gate (hot runner turns to cold runner)
| The second-color A surface polished to SPI A-2 and the first-color A surface EDM with VDI 15#. Harden the cavity and the core with S136, so that the mold has higher anti-wearing and anti-fracture performance. The mold good fitted and the part has good molding quality | ||||||
| Part material | Part size | Part weight | |||
| Length | Width | Height | |||
| PC+ABS | 12.13 | 15.54 | 25.44 | 1g | 1.1g |

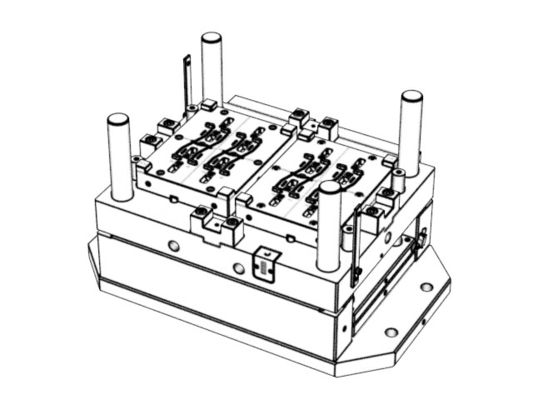

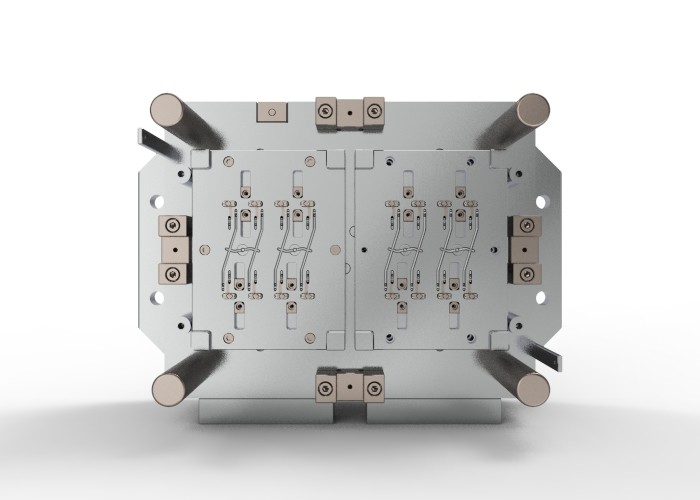

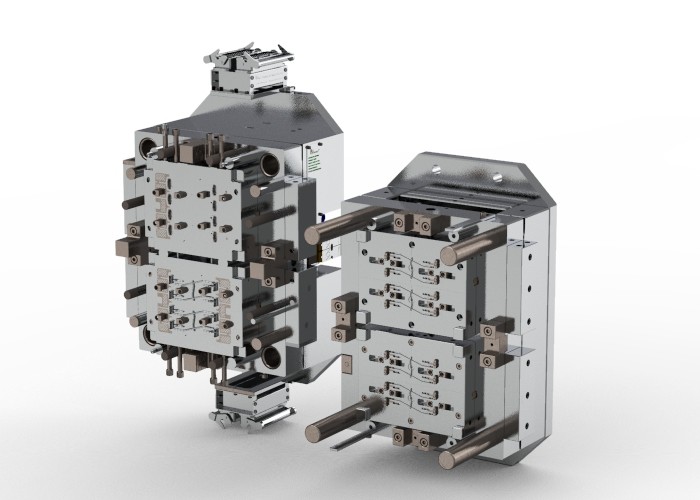

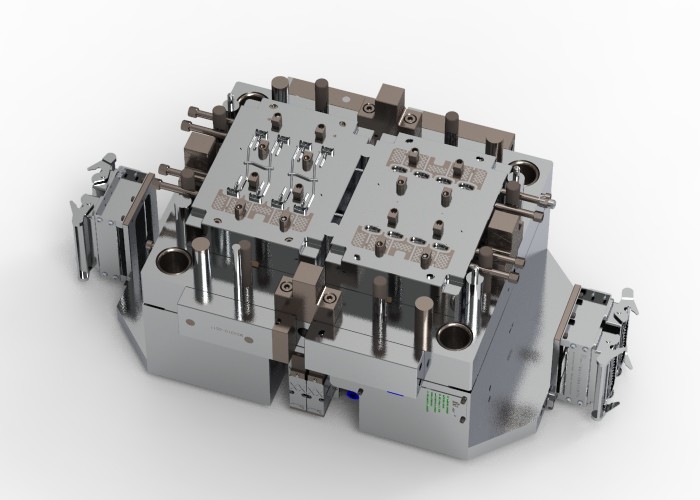

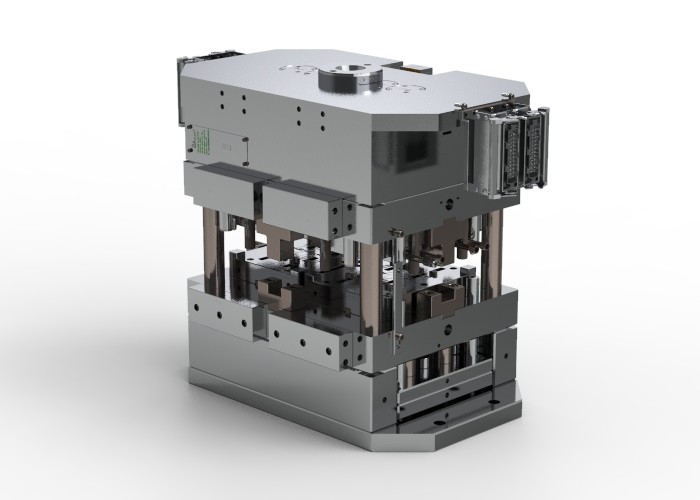

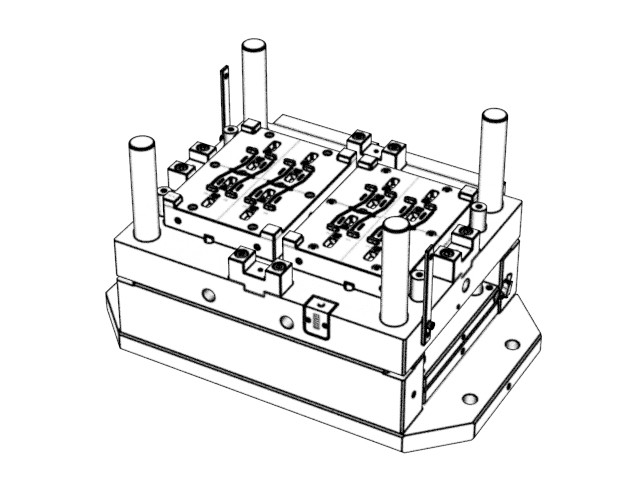

Display diagram
