OEM / ODM ： Double Injection Molding & Transparent Smart Doorbell Button (1*4) No.23675 & 23676
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Doorbell |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 230 X 390 X 336 | IMM Tonnage | 2 Shtos 120T |
|---|---|---|---|
| Mold Weight | 145KG | Part Material | PC/TPU |
| Part Weight | One Shot 0.5g/Two-shot 1.3g | Gate | Side Gate+pin Point Gate (hot Runner Turns To Cold Runner) |
| High Light | Doorbell Double Injection Molding,Hot Runner Double Injection Molding,TPU 2 plate injection mould |
||
Product Description

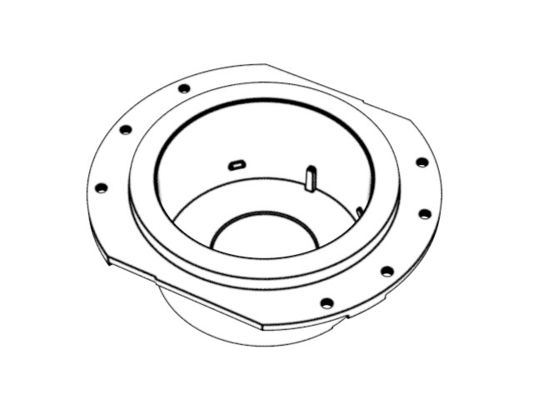

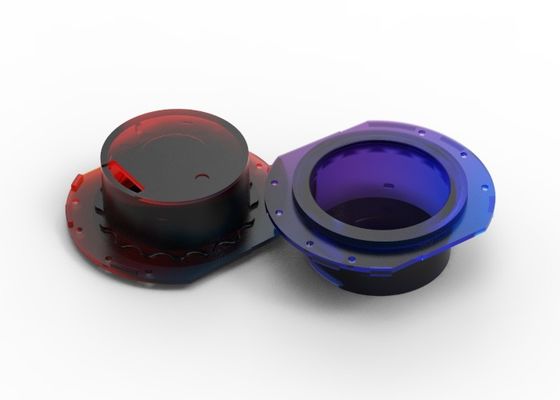

Transparent Smart Doorbell Button (1*4)
No.23675 & 23676
Custom mold base P/N: FCI2330.609080.
General plastic mold standard LKM in China
| Size |
The mold net weight is 145 kg, fits 120T 2k machine. The molded part size is 28.36 X32.16 X11.6mm, and the part weight is about 0.5g for one shot/1.3g for two shots. |
|||||
| Length | Width | Height | ||||
| 230 | 390 | 336 | ||||
| A surface polished to SPI-A1; harden the cavity and core with S136 to have higher hardness and anti-wearing performance. Hardening and tempering at different temperatures greatly improve the strength and anti-fatigue performance of the mold, with the tool life up to 500k shots | ||||||
| Gate | Side gate+pin point gate (hot runner turns to cold runner) | ||||
| Type | Two-plates mold | ||||
| Injection/runner type | Hot runner | ||||
| Part material | PC/TPU | ||||
| Features | 2k mold |
Display diagram
