OEM / ODM ： Double Injection Molding & Transparent Smart Watch Lower Housing (1*4) No.23309 & 23310
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Double-shot Molding | Size | 270*465*356mm |
|---|---|---|---|
| Mold Weight | 357(kg） | Part Material | PA (transparent)/PA + 60% GF (black) |
| Design Software | (3D)UG 4.0/ (2D）CAD | Mould Base | LKM |
| High Light | Earphone high precision injection molding,LKM high precision injection molding,200T PA Injection Molding |
||
Product Description

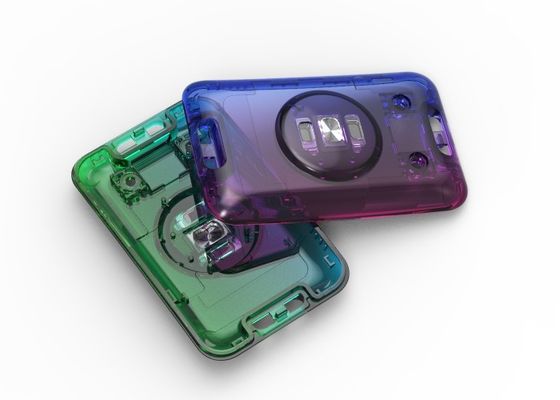

Transparent Smart Watch
Lower Housing (1*4)
No.23309 & 23310
| Mold size | Mold base P/N | ||||
| 270 X 465 X 356 | FCI2735 6011080 | ||||
| Gate | Standard | ||||
| Pin point gate + submarine gate | LKM | ||||
| Mold life | Type | ||||
| 500k shots | Three-plates mold | ||||
| Injection/runner type | Features | ||||
| Cold runner | Double-shot molding | ||||
| Mold weight | IMM Tonnage | ||||
| 357kg | 200T |
| Part material | PA (transparent)/PA + 60% GF (black) | ||||
| Part size : 26.42 X 42.24 X 5.79mm, net weight: about 2.2g/pcs | |||||
| Surface finish | |||||
| ⑴ A surface EDM with SPI-A2 ⑵ A surface EDM with SPI-B2 ⑶ A surface EDM with VDI24# (Makino) |
|||||
| Steel of cavity & core : Harden (1*4/S136) | |||||

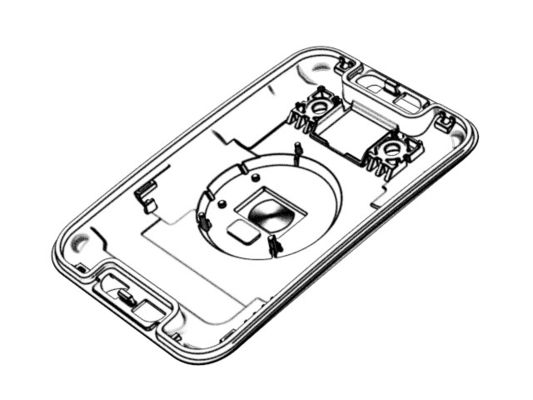

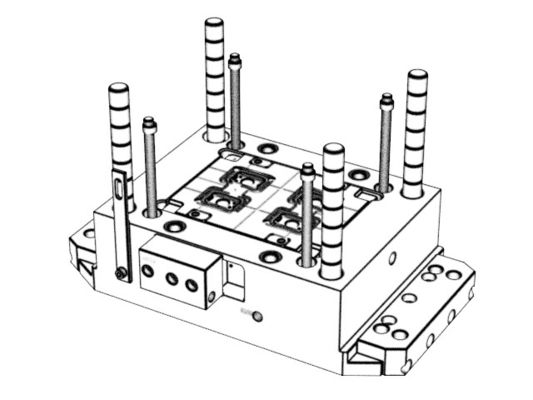

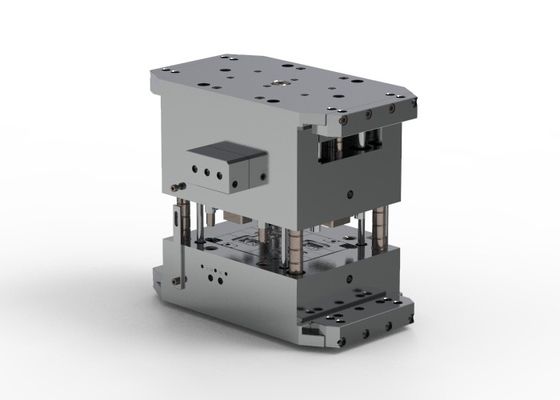

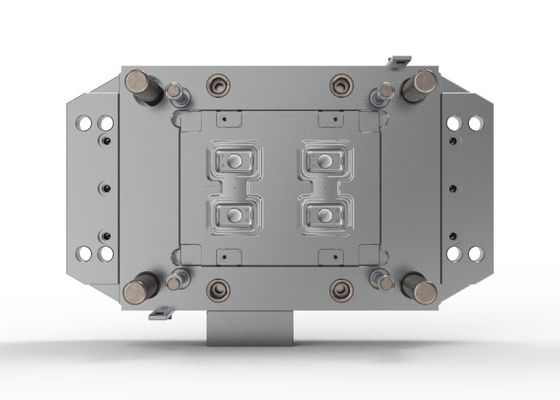

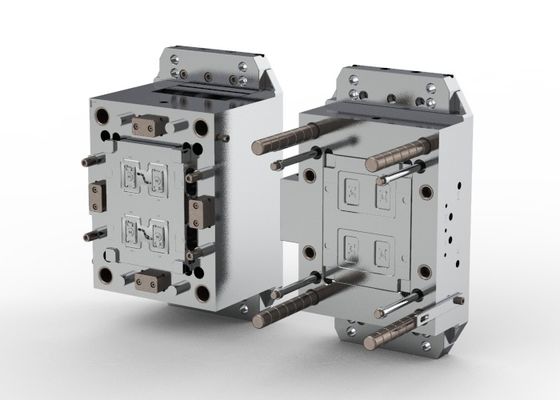

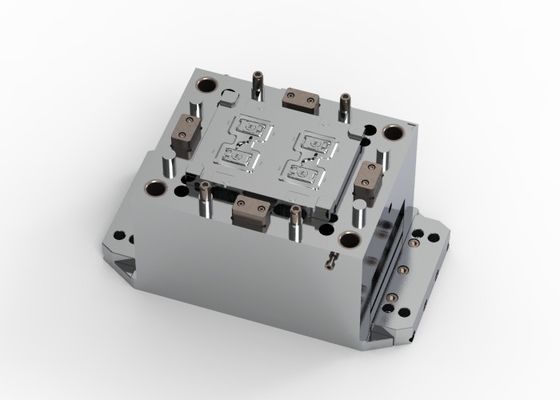

Display diagram
