Transparent Housing (1*8) / Cold runner / Three-plates mold No.24307 & 24308
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | E -cigarettes |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.00 X 660.00 X 546.00 | IMM Tonnage | 250T |
|---|---|---|---|
| Part Material | PC+ABS | Gate | Pin Point Gate |
| Tool Life | 500k Shots | Injection/runner Type | Hot Runner |
| Surface Finish | EDM With VDI 15# | Part Weight | 0.83g +0.75g |
| High Light | EDM Double Shot Injection Molding,250T Double Shot Injection Molding,Hot runner 3 plate Mold |
||
Product Description

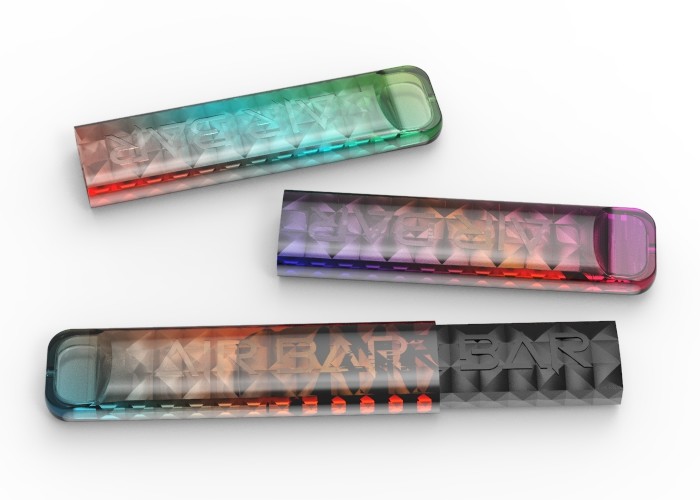

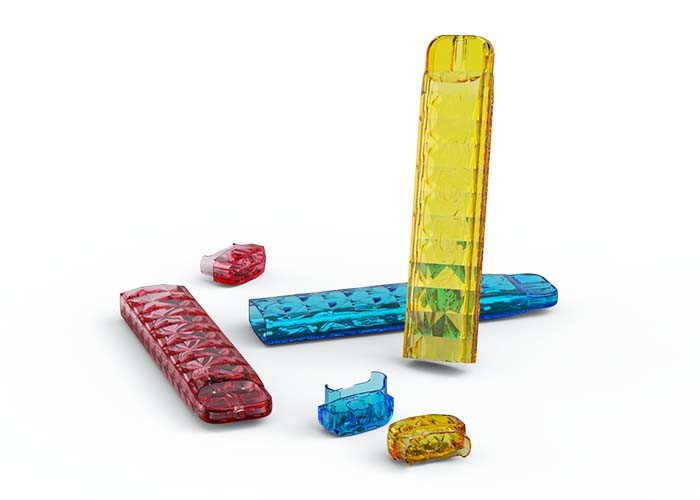

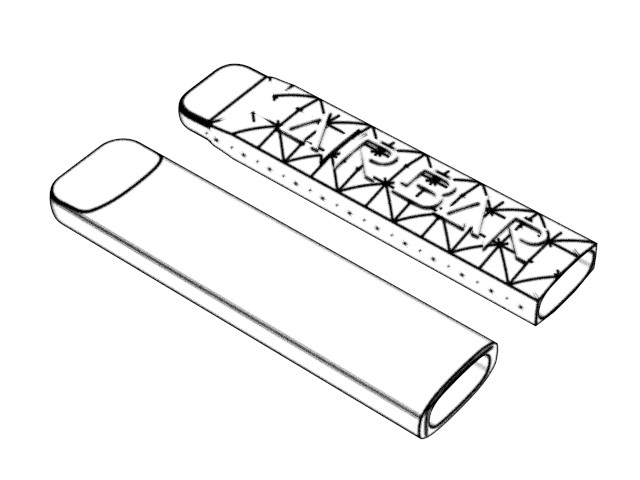

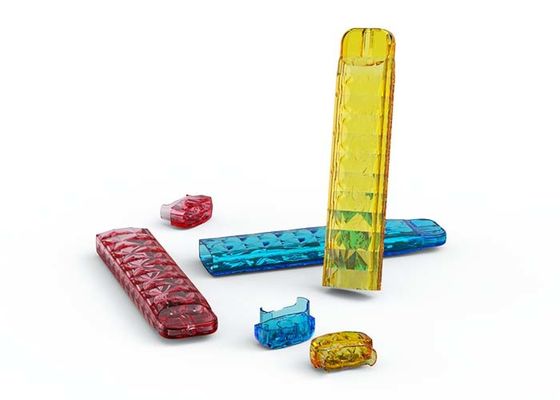

Transparent Housing (1*8)
No.24307&24308
| Features: 2k mold Mold size: 400.00 X 660.00 X 546.00mm Custom mold base FCI4050-A130-B115-C95 Net weight: 505KG+505KG Harden cavity & core with S136 |
Part material | ||
| PC+ABS | |||
| Surface finish | Second-color A surface polished to SPI-A2 | ||
| First-color A surface EDM with VDI 15# | |||

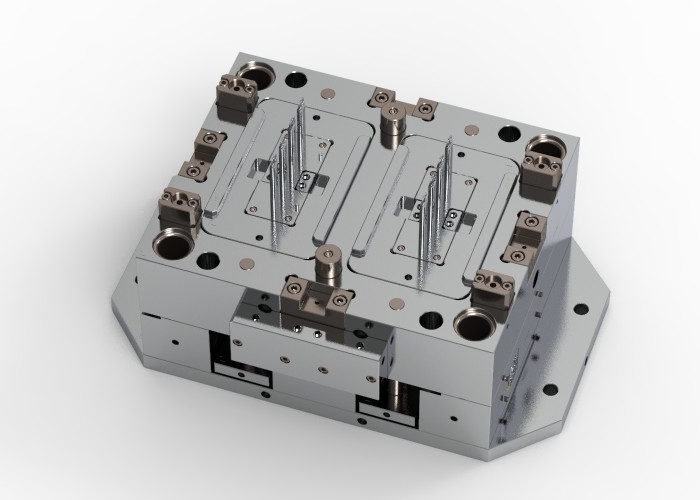

The mold is designed with three-plate mold structure and pin point gate, hot runner turns to cold
runner, LKM standard. After physical treatment, the surface hardness > 600HV, with high anti-wearing
performance and the service life up to 500k shots
| IMM tonnage: | 250T | |||
| Part size: | 25.63 X 12.26 X 100.10mm | |||
| Part weight: | 0.83g +0.75g | |||

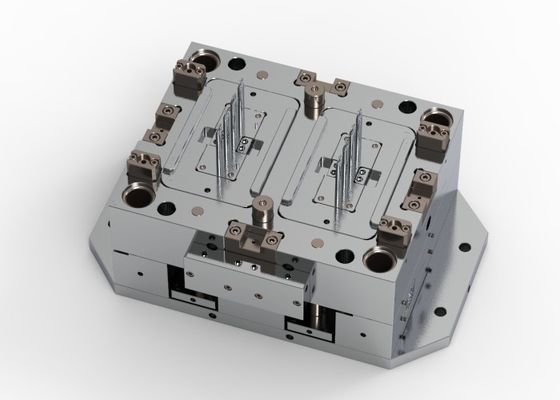

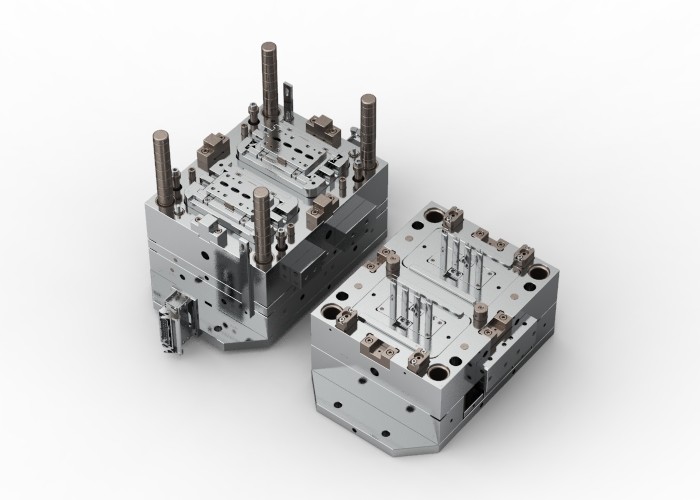

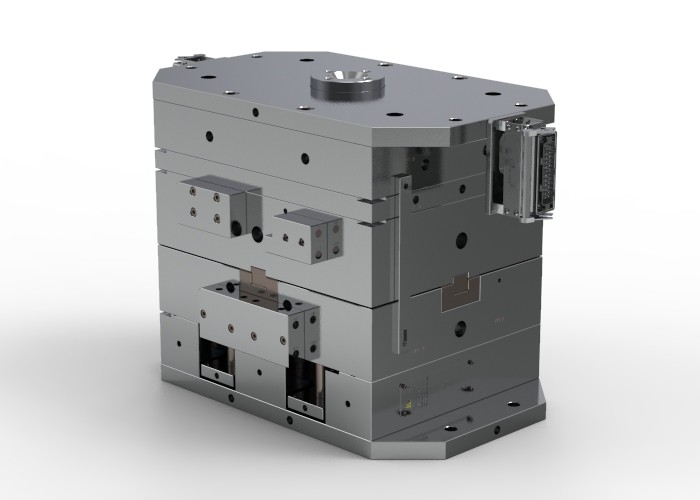

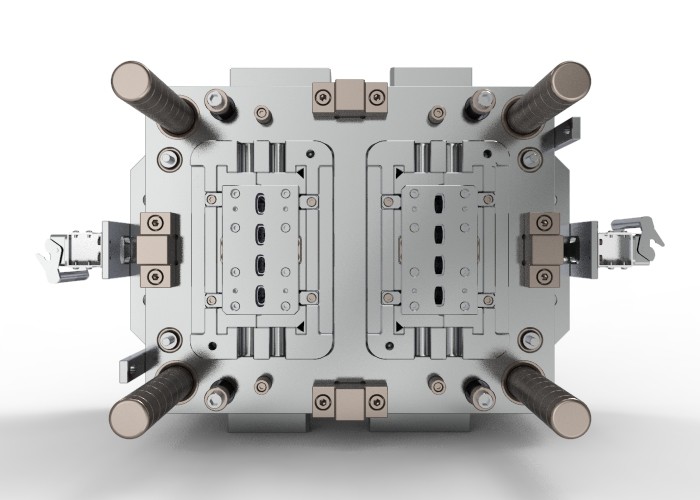

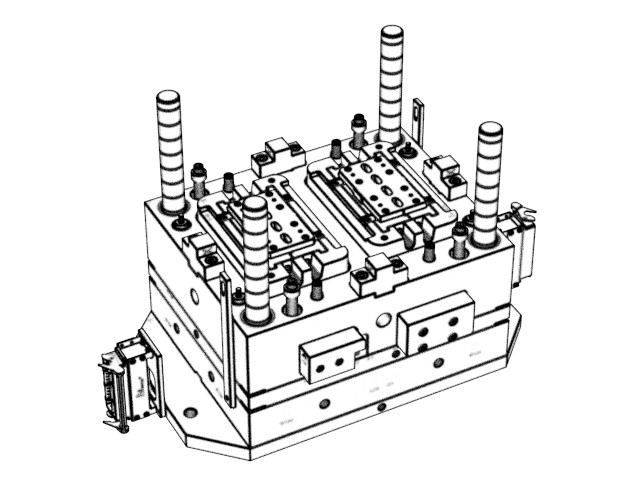

Display diagram
