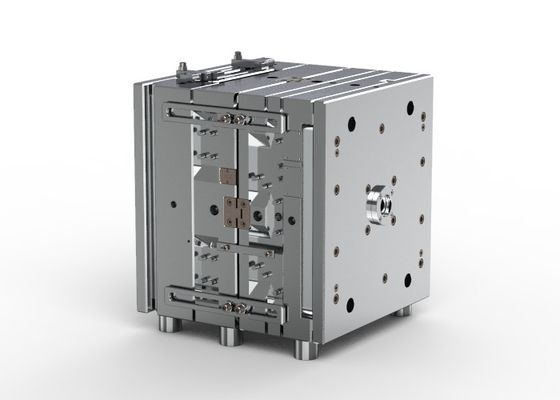

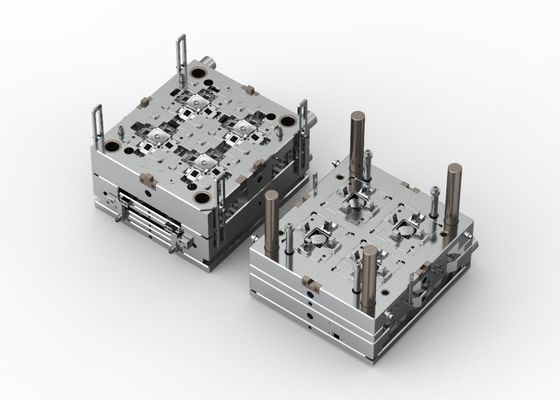

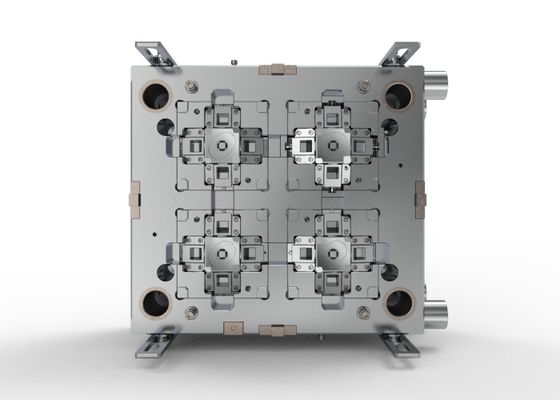

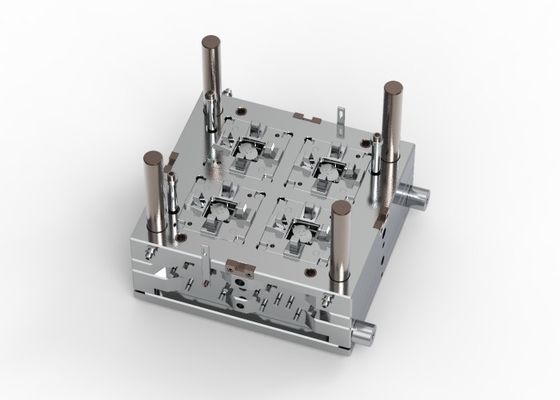

OEM / ODM ： Multi Cavity Injection Mold & On-board Universal Joint Base (1*4) No.23910
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Xslides And 2x Lifters | Size | 550.000 X 600.000 X 567.210 |
|---|---|---|---|
| IMM Tonnage | 100T | Mold Weight | 1335kg |
| Standard | LKM | Type | Three-plates Mold |
| Gate | Pin Point Gate | Part Material | PC |
Product Description

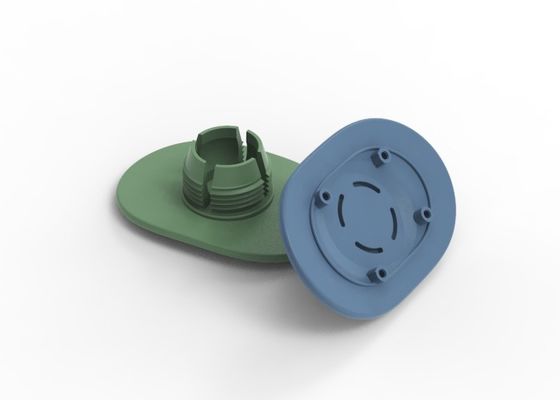

On-board Universal Joint Base (1*4)
No.23910
| Mold base P/N: FCI5560 85130150 | Mold net weight | ||||||
| Overall size | Standard | Type | Gate | 1335kg | |||
| Length | Width | Height | LKM | Three-plates mold | Pin point gate | IMM Tonnage | |
| 550 | 600 | 567.21 | 100T | ||||
[Injection/runner type]: Hot runner [the hot runner turns to the cold runner]
|
This mold with cost-effective filling system(hot sprue to cold runner, W/O cold sprue) Benefits: save runner material, self-degating, full-automatic molding, post-treatment free, low pressure loss. |
|||||
|
[Surface finish] ①A surface EDM with VDI24# |
|||||
| With smoothly part surfaces, touch-friendly and good for jointing. |
|
[Features] - 4 xslides and 2x lifters [Part material]: PC [Part weight]: 7.15g [Part size]: 54.78 X 54.78 X 20.38mm |
Tool life: 500k shots

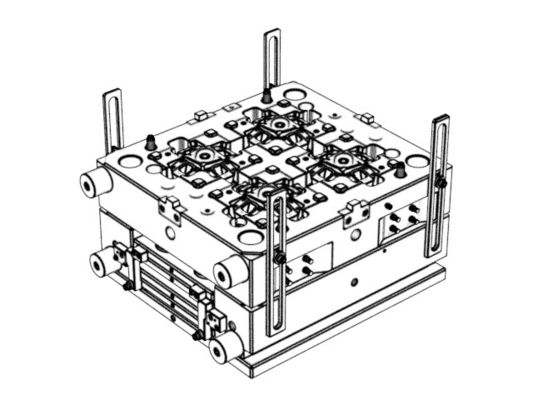

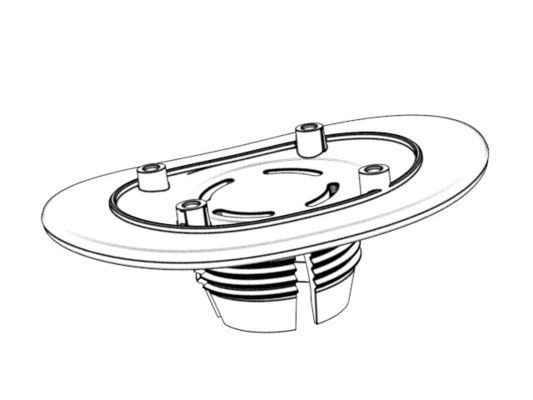

Display diagram
