OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677

  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
  • OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677
Place of Origin China
Brand Name Chitwing
Certification ISO 9001:2015
Model Number Mobile Phone
Minimum Order Quantity 1set
Price Negotiable
Packaging Details The mold is packaged with a wooden box and placed on a wood pallet.
Delivery Time 30 day(s)
Payment Terms L/C, T/T
Supply Ability 200 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 350.000 X 450.000 X 374.400mm IMM Tonnage 130T
Mold Weight 371.71KG Mould Life ≥500000 Shots
Mould Material Harden With S136 Design Software 3D:UG 4.0, 2D:CAD
Part Net Weight 23.3g Gate Type Pin Point Gate
Type Three Plate Surface Finish Case Hardening VDI21#
Mold Material Steel Mold Mold Type Custom Electronic Enclosures Mold
Runner System Hot Sprue Cold Runner Forming Method Encapsulation Molding
Structure Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate Section Steel Ingot
High Light

130T Multi Cavity Injection Mold

,

Cold Runner Multi Cavity Injection Mold

,

500000 shots Three Plate Injection Mold
Leave a Message
Product Description

Bottom cover bracket (1*2)

No.24677



Mold steel Mold size (mm) Mold net weight Lifter Surface finish
Cavity Core L*W H
Harden with S136 350*450 374.4 371.71kg 6 VDI21#

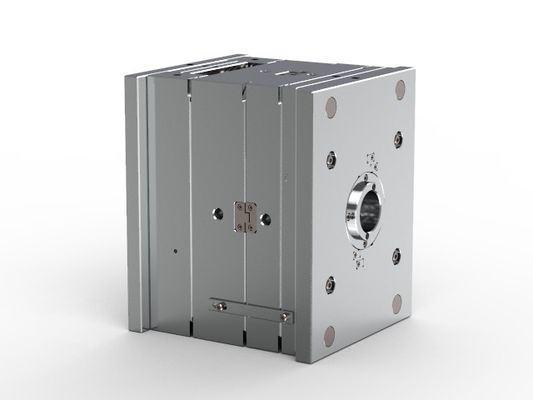

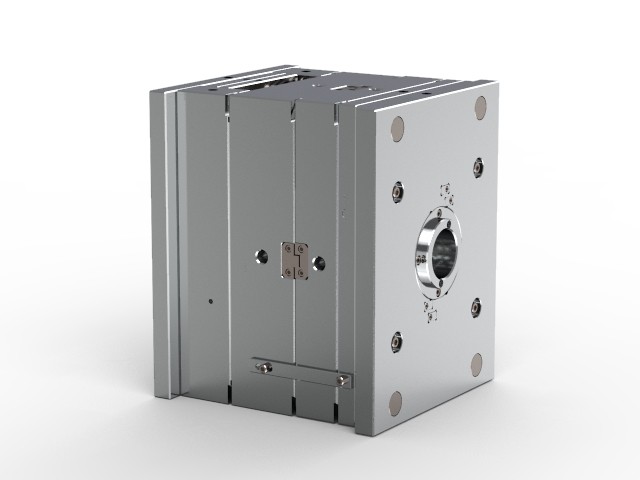

OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 0



  Part material   Part size (mm)   Part net weight
  Diameter   H
  PC+ABS   ￠95   14.1   23.3g

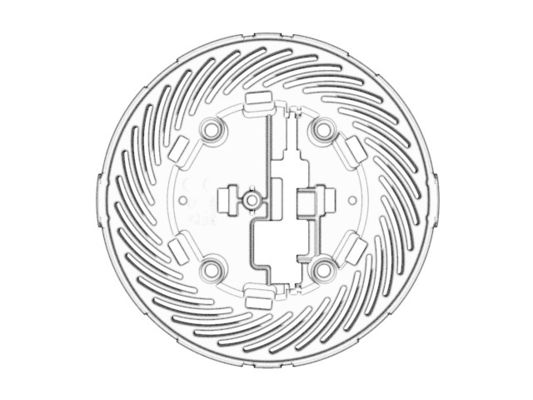

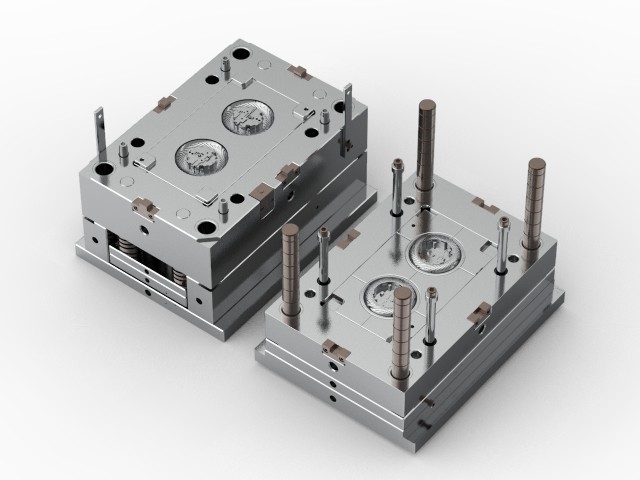

OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 1



This is a three-plates mold with pin point gate and LKM standard, self=degating with minimized gate marks, meeting automated production requirements and reducing labor cost Fit 130T machine, with tool life up to 500k shots

Injection/runner type:Cold runner

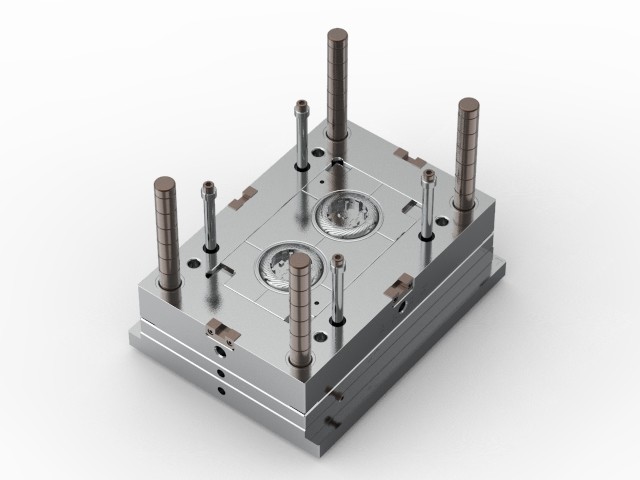

OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 2

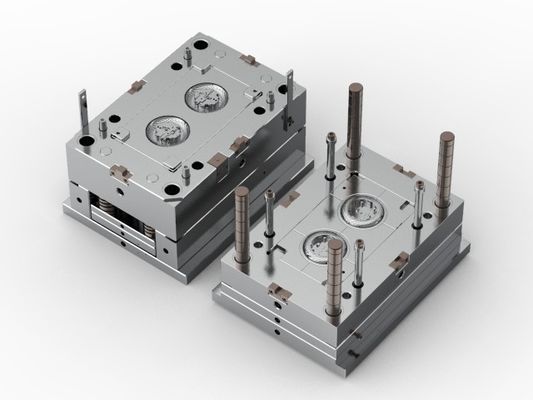

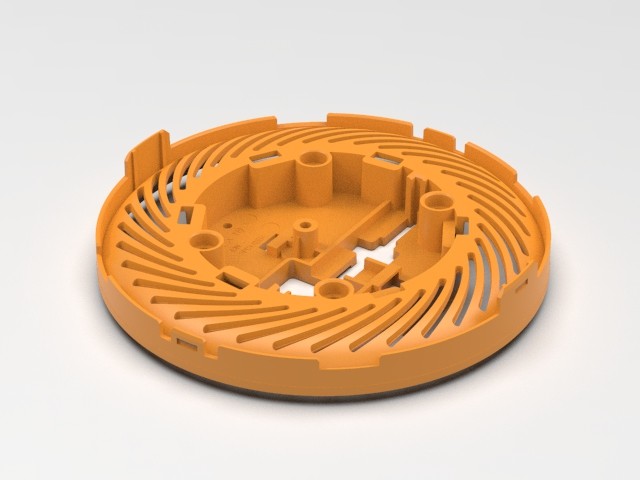

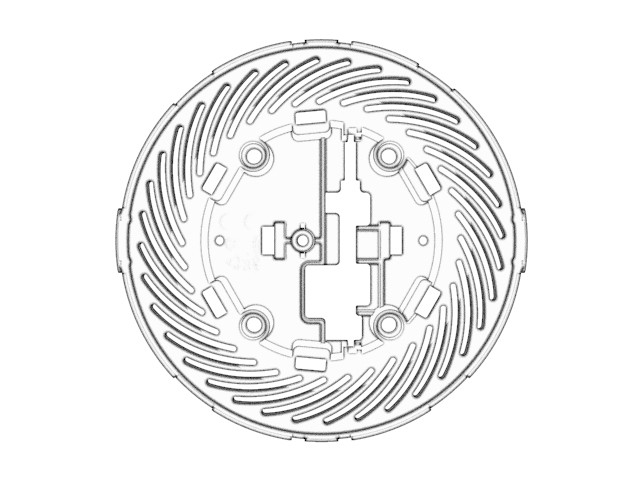

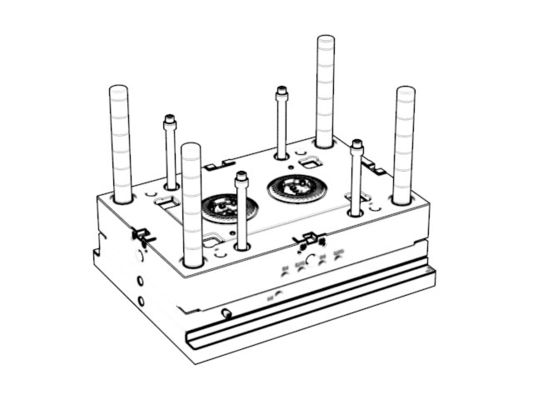

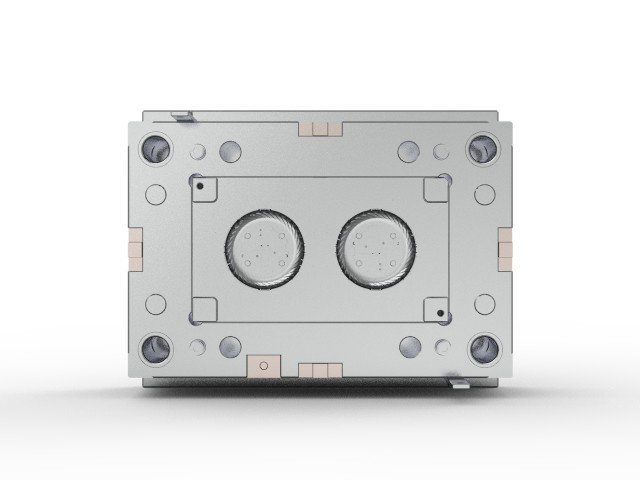

Display diagram



OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 3OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 4OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 5OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 6OEM/ODM: Custom electronic enclosures / Bottom cover bracket (1*2) No.24677 7
