OEM/ODM：Custom Precision Machining Molds / Seal bracket (1*8) No.22678
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250 X 230 X 231mm | IMM Tonnage | 60T |
|---|---|---|---|
| Mold Weight | 80KG | Tool Life | 500k Shots |
| Standard | LKM | Surface Finish | VDI 24# |
| Steel Of Cavity | Harden With 1*8/S136 | Steel Of Core | Harden With 1*8/S136 |
Product Description

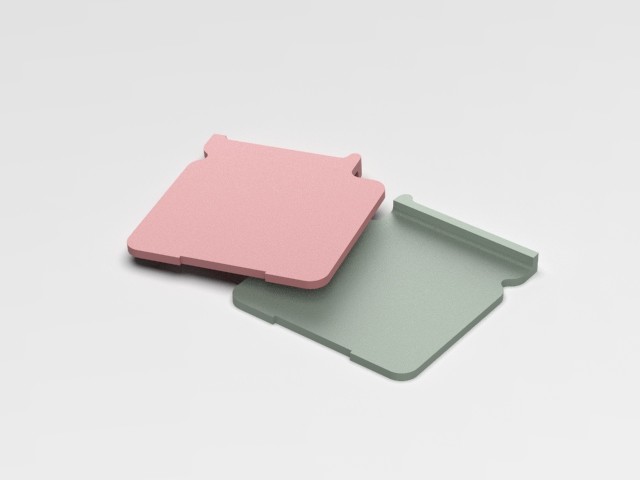

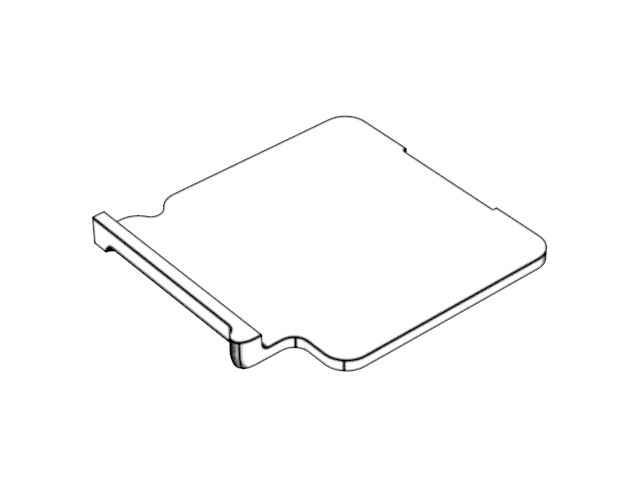

Seal bracket (1*8)
No.22678
| Mold information: | |||||
| [Size]: (L) 250 x (W) 230 x (H) 231mm [Gate]: side gate [Mold weight]: 80 kg [Tool life]: 500k shots |
|||||
Mold details:
| This is a two-plates mold with high-quality LKM mold (fast filling, low pressure and good feeding capacity, suitable for PC with high viscosity and low fluidity, minimized pressure loss) to meet the production requirements of PC parts; part size: 9.40*10.30*0.97mm, part weight: 0.3g with minimized error and precise molding; the mold fits 60T machine | |||||
|
|
||||||
| Steel of cavity | Harden with 1*8/S136 | |
| Steel of core | ||
| Injection type | Cold runner | |
| Runner type | ||

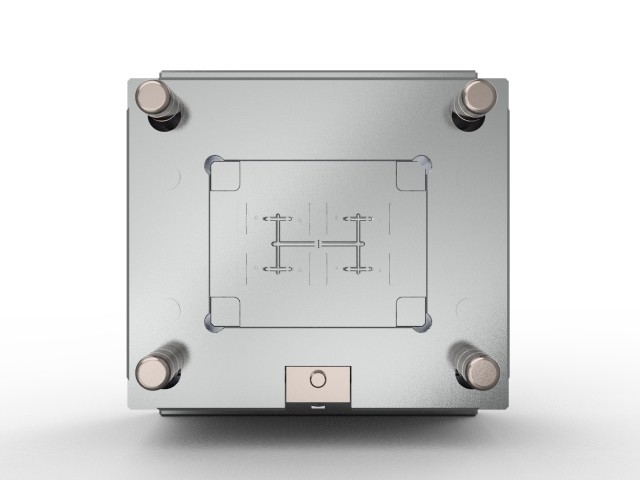

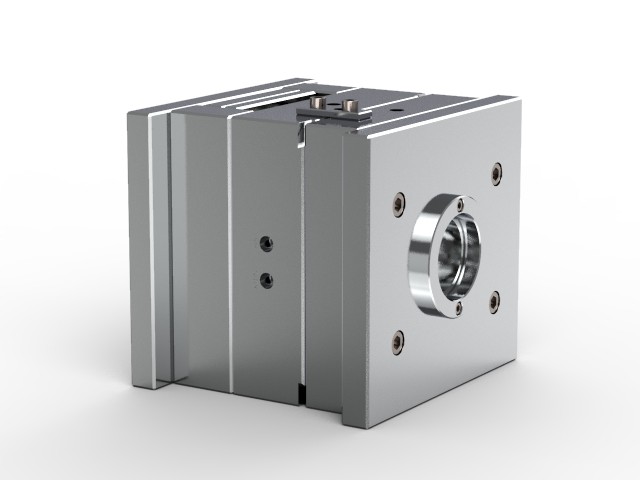

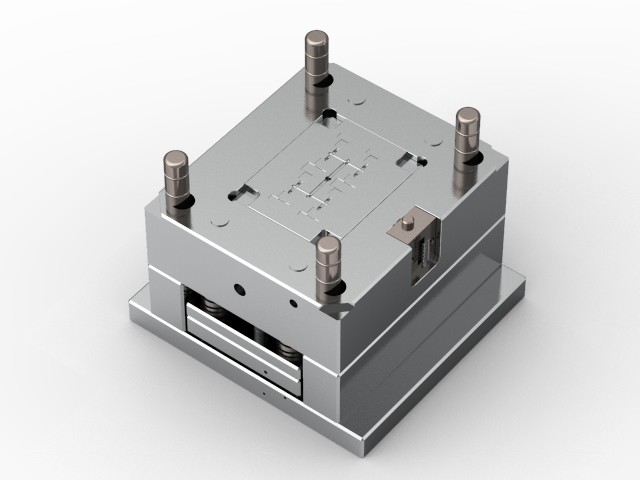

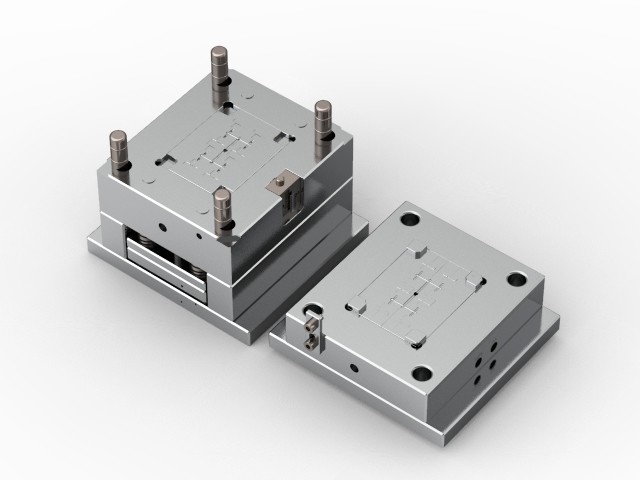

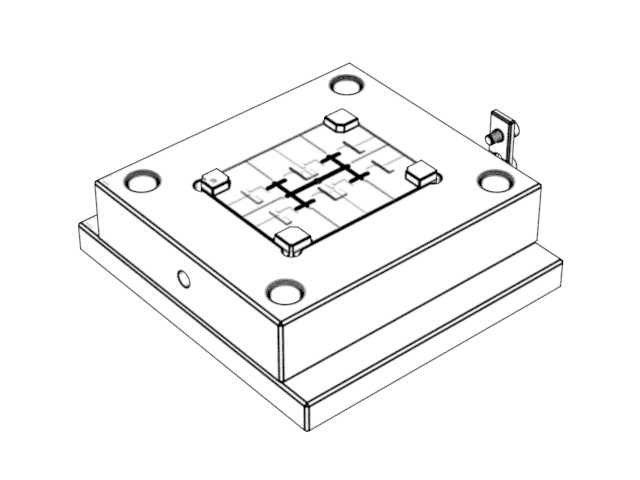

Display diagram
