OEM/ODM：Custom Precision Machining Molds / Transparent seal bracket (1*8) No.22678
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | (L) 250 X (W) 230 X (H) 231mm | IMM Tonnage | 60（T） |
|---|---|---|---|
| Mold Weight | 80（KG） | Mould Life | 500000 Shots |
| Mould Base | LKM | Design Software | (3D)UG 4.0/ (2D）CAD |
| Runner | Cold Runner | Mould Cavity | Harden（1*4/S136） |
| Gate | Side Gate |
Product Description

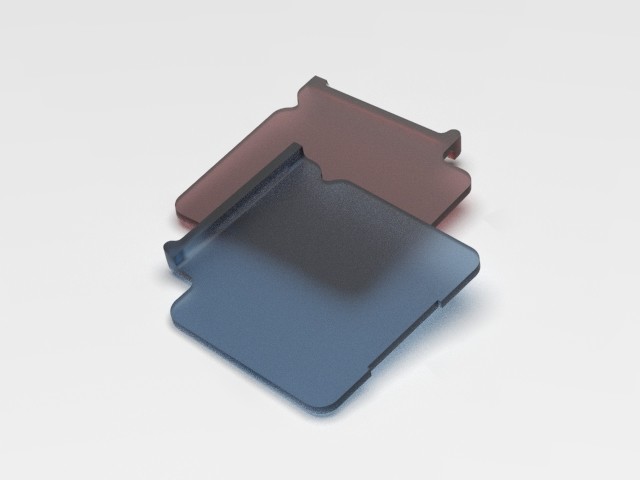

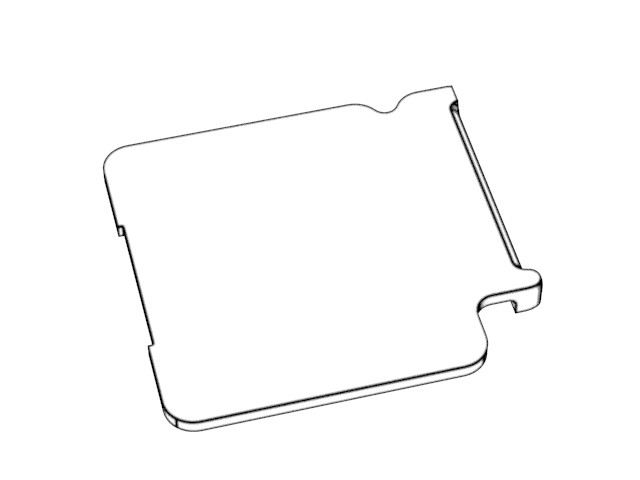

Transparent seal bracket (1*8)
No.22678
| Gate | Side gate |
| Type | Two-plates mold |
| Injection/runner type | Cold runner |
| Mold size (mm) | Part size (mm) | ||
| L*W | H | L*W | H |
| 250X230 | 231 | 9.40X10.30 | 0.97 |
| Mold weight | Part weight | ||
| 80KG | 0.3g | ||
| The tool life is 500k shots; surface EDM with VDI 24# (Ra ≤ 1.6μm, w/o processing marks); harden the cavity and core with 1*8/S136 to improve the hardness, anti-wearing and anti-corrosion performance, so that no special protection is required for use and storage in complicated environment, with longer tool life and lower maintenance cost | ||||

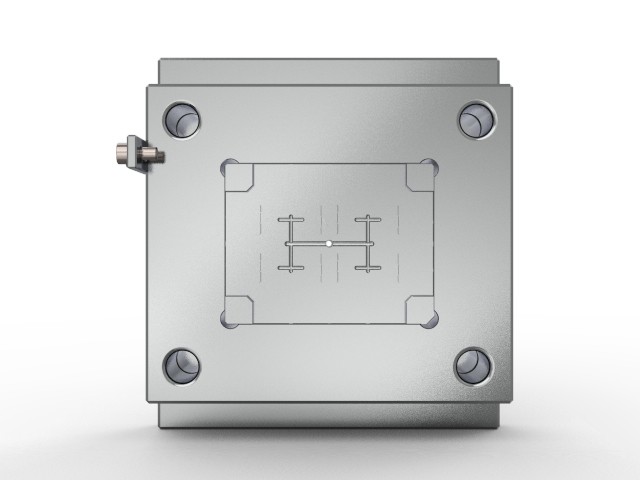

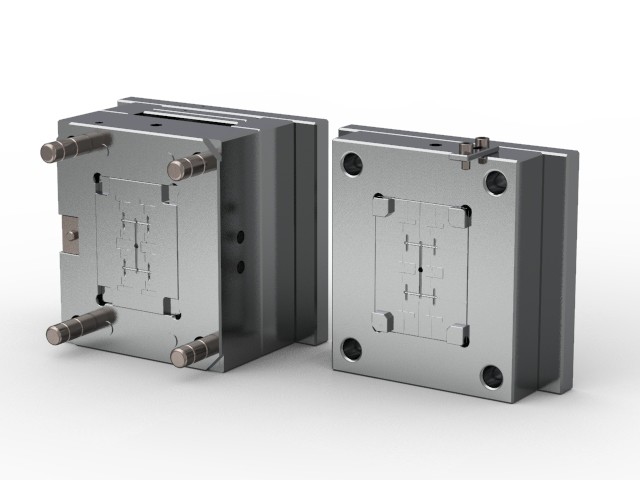

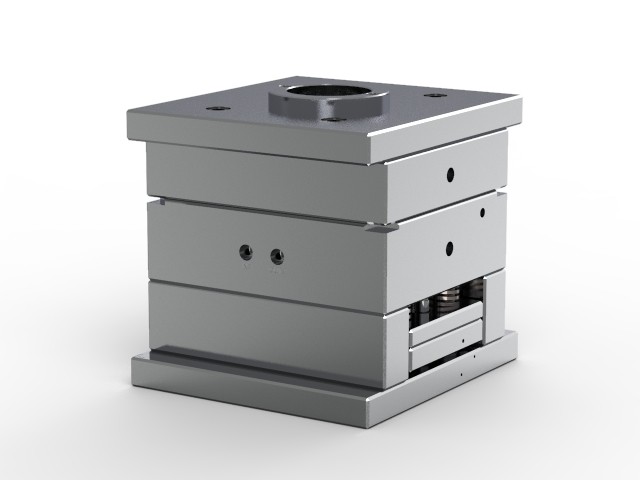

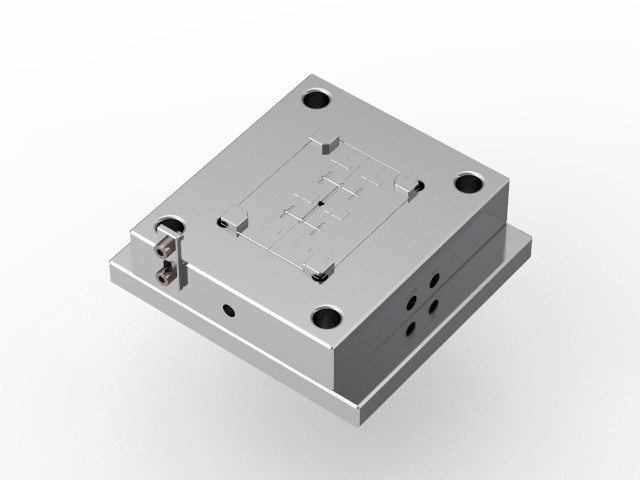

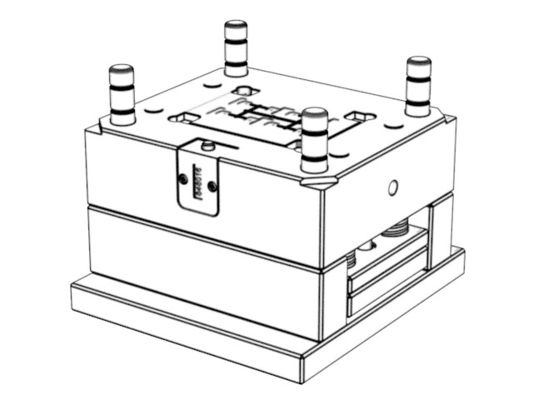

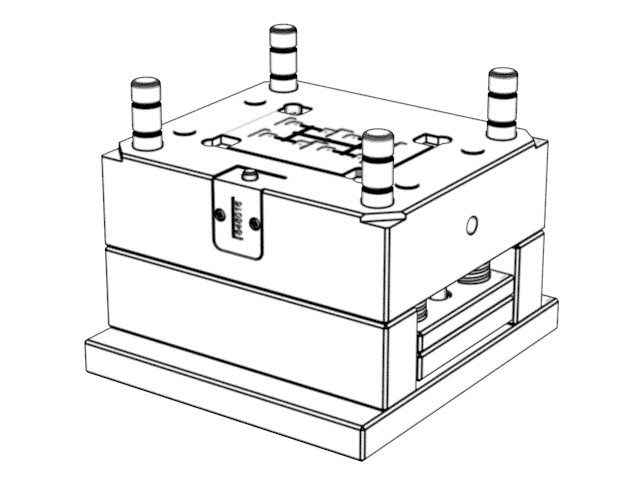

Display diagram
