OEM / ODM ： Multi Cavity Injection Mold & On-board Foot Rest Ball (1*4) No.23916
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 336.000 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 191kg | Part Material | POM |
| Gate | Horn Gate | Tool Life | 500K Shots |
| Mold Base P/N | Custom CI2530 659090. | ||
| High Light | Two Plate Low Cost Injection Molding,LKM Low Cost Injection Molding,POM Low Cost Injection Molding |
||
Product Description

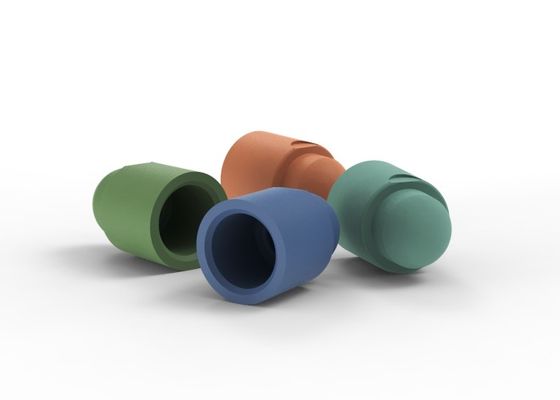

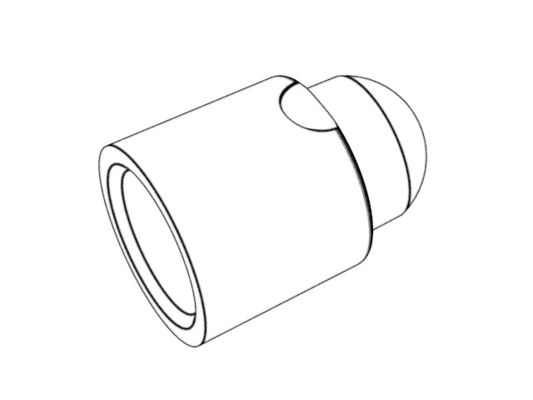

On-board Foot Rest Ball (1*4)
No.23916
Mold base P/N:Custom CI2530 659090
| Mold size | Standard | Type | Net weight: 191kg, IMM tonnage: 130T |
||
| Length | Width | Height | |||
| 300 | 300 | 336 | LKM | Two-plates mold | |
| Gate | The gate is hidden on secondary surface of the core, and it is invisible after the product is assembled. |
||||
| Horn gate | |||||
| Inner surface polished to SPI-B2, the mold surface is slightly glossy, w/o cutting marks. Part surface is smoother and cleaner, free of sticking with the mold. |
||||
Harden the cavity and core with 1*4/S136, so that the mold has higher hardness and good
anti-wearing and anti-corrosion performance. The tool life is up to 500K shots, and makes
the mold suitable for mass production.
Part material: POM
Part size: 5.20 X 5.20 X 7.45mm
Part weight: 0.07g
|
The mold is designed with hot runner, with no material loss of runner,which greatly reduces the cost of materials. The molded part has more uniform high quality and smooth surface. The mold has good cavity seal performance, short cycle time, w/o flow marks and gas marks |
||||

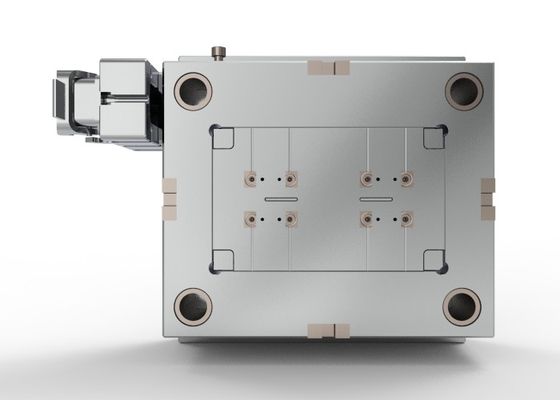

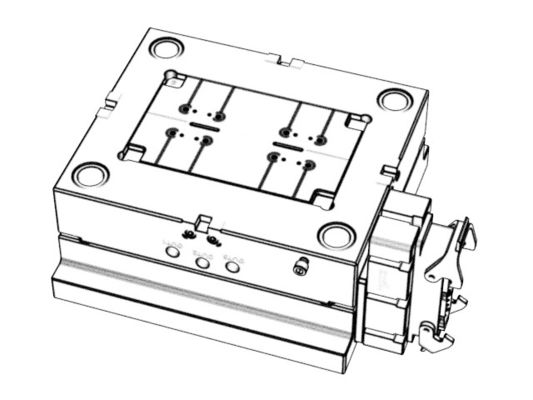

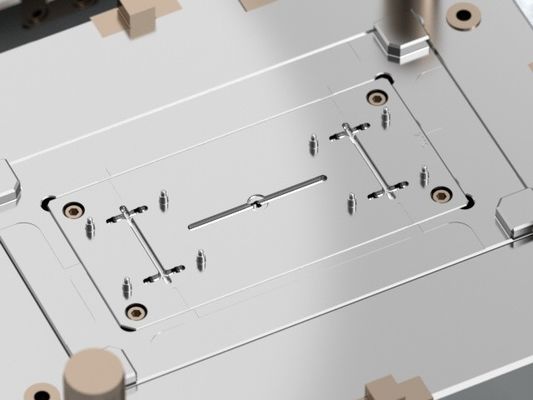

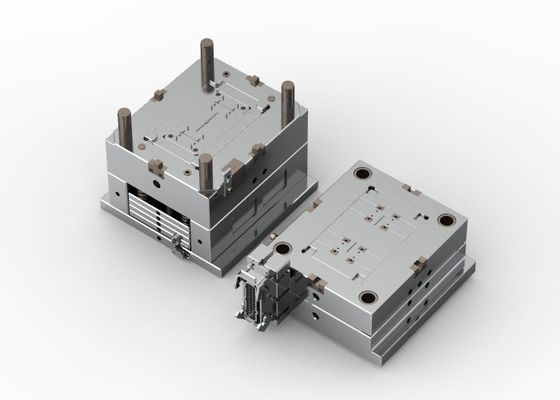

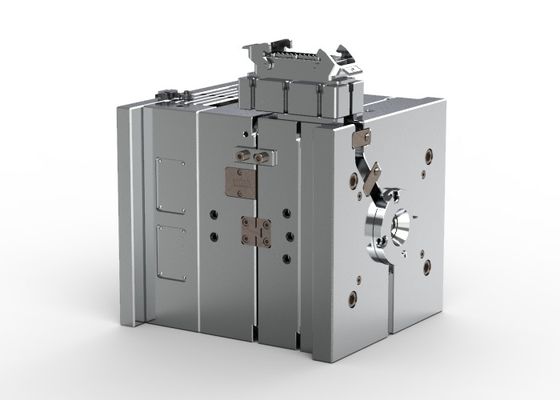

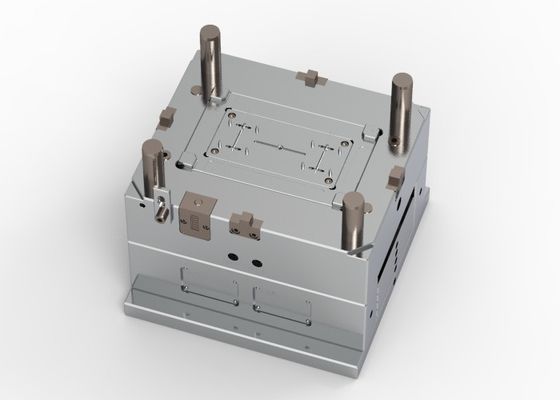

Display diagram
