OEM / ODM ： Multi Cavity Injection Mold & Transparent On-board Universal Joint Lock Nut(1*4) No.23915
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | In-Car Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.00 X 500.00 X 527.00 | IMM Tonnage | 220T |
|---|---|---|---|
| Mold Weight | 708kg | Mould Life | ≥500000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0, 2D:CAD |
| Type | Three-plates Mold | Part Material | PC |
| Part Weight | 7.75g | ||
| High Light | Three Plate Cavity Pressure Injection Molding,LKM Cavity Pressure Injection Molding,PC Hot Runner Injection Molding |
||
Product Description

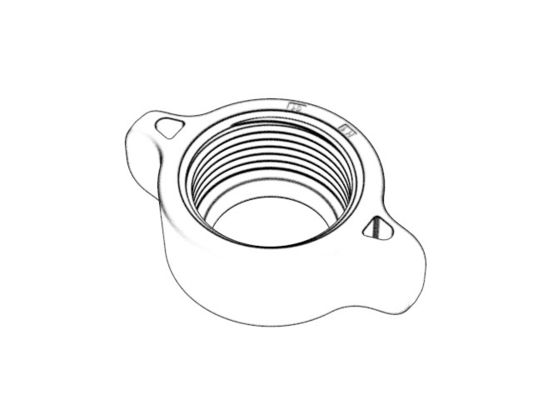

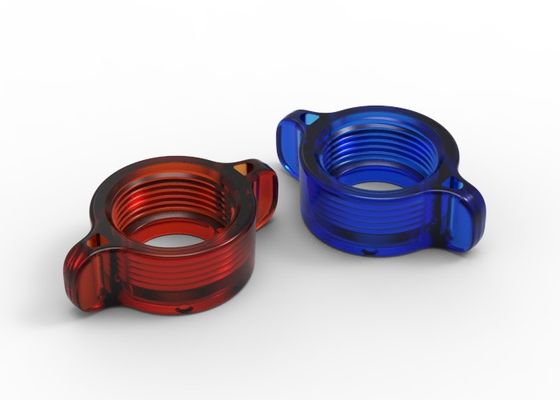

Transparent On-board
Universal Joint Lock Nut(1*4)
No.23915
| Brand | Chitwing | Mold size | Mold net weight | ||
| Mold base P/N | |||||
| Length |
Width |
Height | 708kg | ||
| FCI3550 7010070 |
400 |
500 | 527 | ||
| ☆ [Standard]: LKM | ☆ [Type]: Three-plates mold |
| ☆ [Part material]: PC | ☆ [Part size]: 30.91x47.60x14.45mm |
| ☆ [Part weight]: 7.75g | ☆ [Gate]: Pin point gate |
| ☆ [Injection/runner type]: Hot runner | ☆ [IMM Tonnage]: 220T |
| ★ Surface finish | ★ Steel of cavity & core | ||||
| A surface EDM with VDI24# | Harden (1*4/S136) |
|
Injection / runner type: |
This is a hot runner mold, no material loss of runner, with stable molding quality and low residual stress and warpage. Can meet requirement of mass production quality, save material and labor cost. |
||||
| Hot runner | |||||

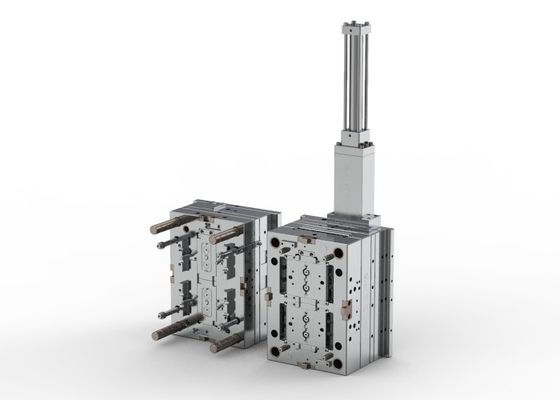

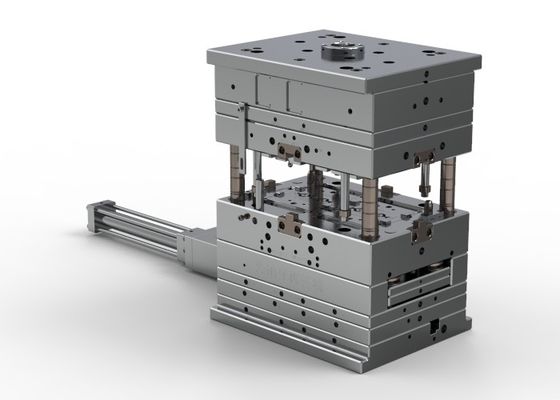

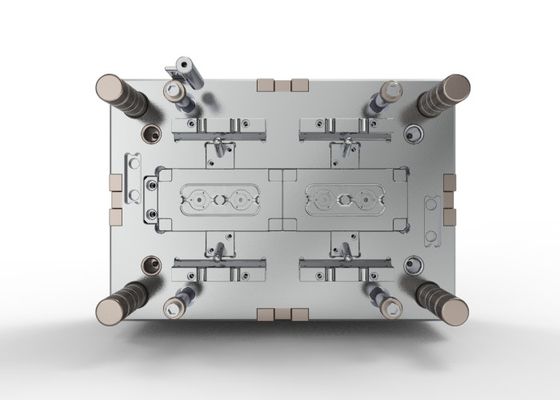

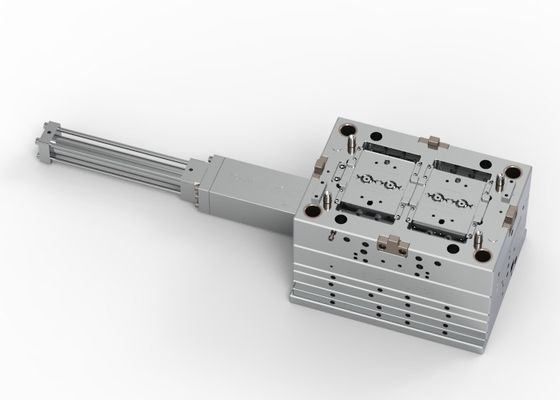

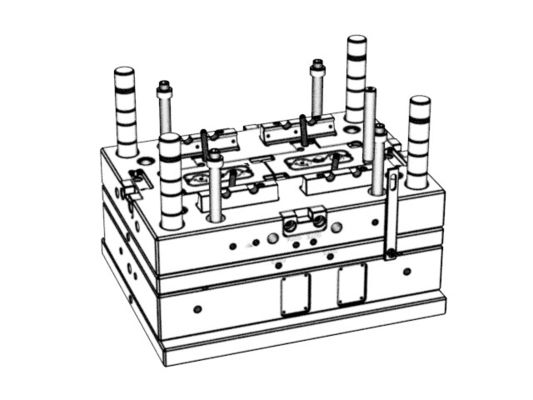

Display diagram
