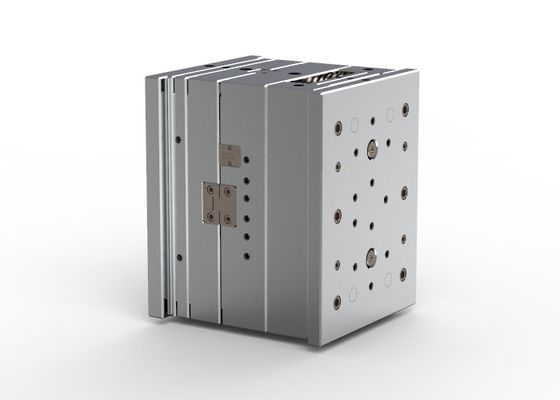

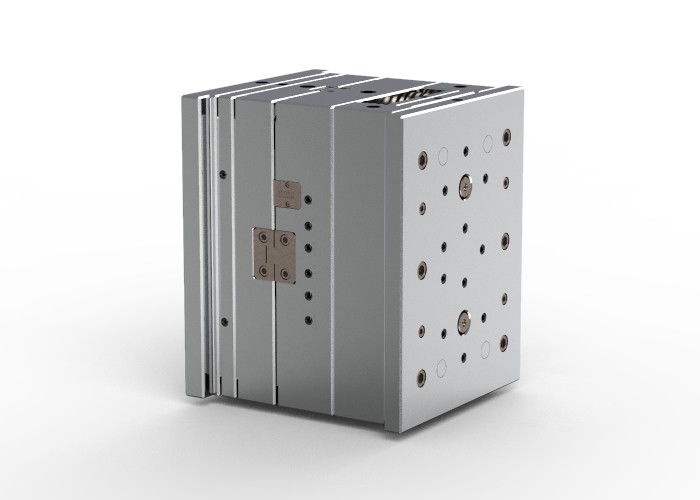

OEM / ODM ： Polypropylene Injection Molding & Disinfection box upper cover (1*1) No.23770
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Disinfection Box |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 3 Lifters | Size | 350 X 450 X 376（mm） |
|---|---|---|---|
| IMM Tonnage | 180（T） | Mold Weight | 362（KG） |
| Part Weight | 50g | Cavity | Harden (1*2/S136) |
| Core | Harden (1*2/S136) | Part Material | PC+ABS |
| Standard | LKM | ||
| High Light | 500k Shots Polypropylene Injection Molding,3 lifters Polypropylene Injection Molding,ABS 4 Cavity Mold |
||
Product Description
Disinfection
box upper cover (1*1)
No.23770
| Brand | Chitwing | Size | Net weight | |||
| Standard mold base P/N: FCI3045.70100100. | 350 X 450 X 376mm | 362KG | ||||
IMM tonnage: 180T
| Gate | |||||
| Sub gate | Pin point gate turns to side gate, sub gate | ||||

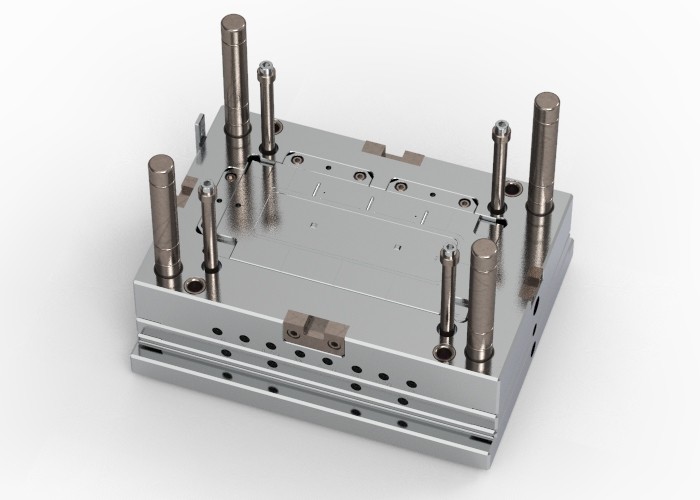

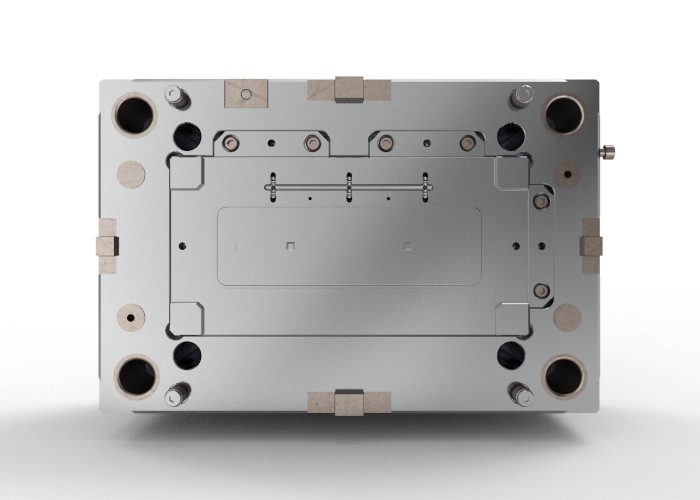

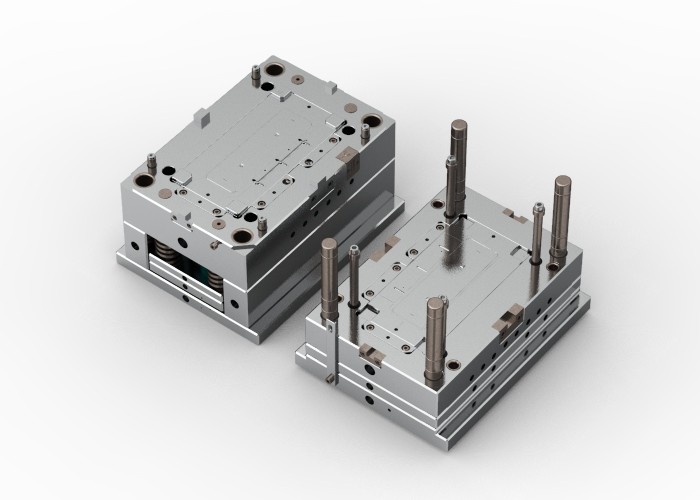

| The mold is designed with a three-plates mold structure and cold runner; the A surface with VDI18# etch; harden the cavity and the core with 1*1/S136; with good strength and toughness, short cycle time; the molded part has aesthetic appearance and clear details w/o burrs; the tool life is up to 500k shots. | |||||
| Features | 3 lifters | Part material | |
| Standard | LKM | PC | ABS |
| ☆ Part weight: 50g | ☆ Keyword: disinfection box product |

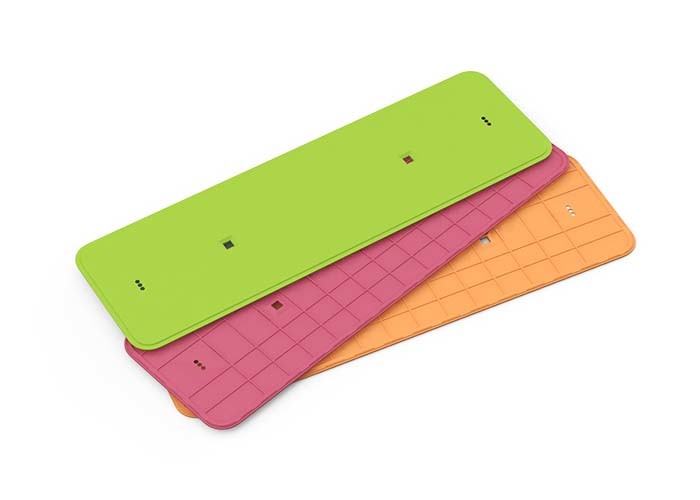

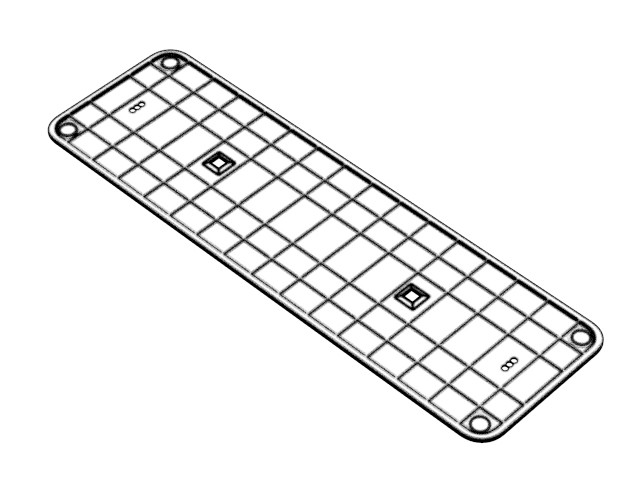

| ☆ Part size: 240x75x5.5mm |

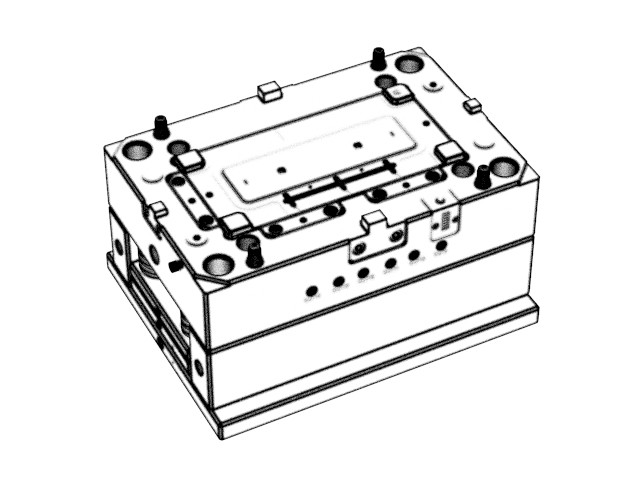

Display diagram
