OEM/ODM：Custom Consumer Electronics Molds / Front Housing LDS (1*2) No.22397
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 500.000 X 346.000 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 373kg | Type | Three Plates Mold |
| Standard | LKM | Part Material | PC |
| Tool Life | 500k Shots | Cavity | Harden (1*2/S136) |
| Core | Harden (1*2/S136) | Mould Type | Mould For Plastics |
| Gate Type | 2x Hot Runner Valve Gates Turn To Cold Runner Pin Point Gates | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| High Light | LDS Metal Injection Molding,LKM Metal Injection Molding,80T Injection Molding Hot Runner |
||
Product Description

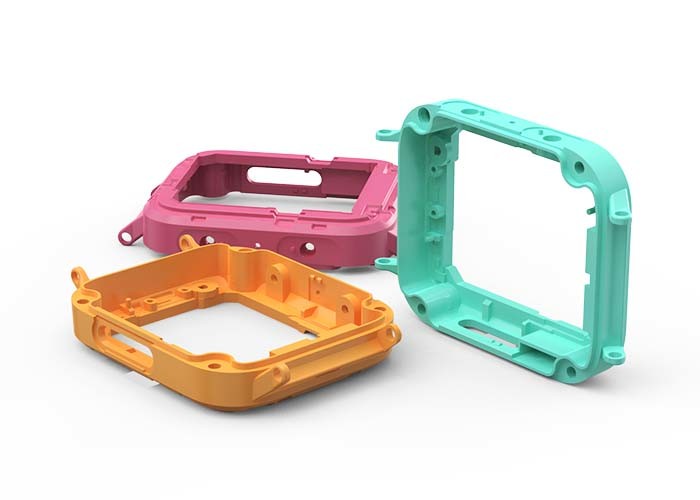

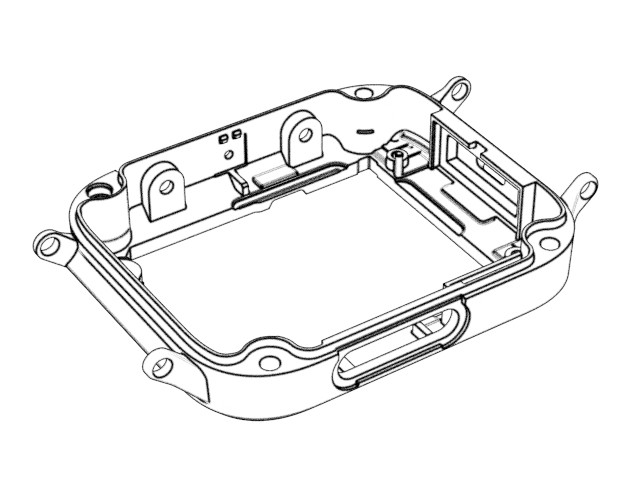

Front Housing LDS (1*2)
No.22397
Brand: Chitwing
Mold base: standard (FCI3050 1 set A60-B90-C90)
| Standard | Size |
The mold net weight is 373 kg, fit 80T machine; the part size is 41.3 * 56.24 * 10.6mm, and the part weight is 3g |
|||
| LKM | Length | 350 | |||
| Type | Width | 500 | |||
|
Three-plates mold |
Height | 346 | |||
2x hot runner valve gates turn to cold runner pin point gates; the middle gate goes through
subsequent CNC processing, tool life up to 500k shots; with 4 slides and 5 lifters, smooth
molding with shorter cycle time; three-plates mold structure, the large surface EDM with VDI 18#,
waterproof surface polished to 1000# sandpaper, with higher hardness, good anti-wearing and
anti-corrosion performance

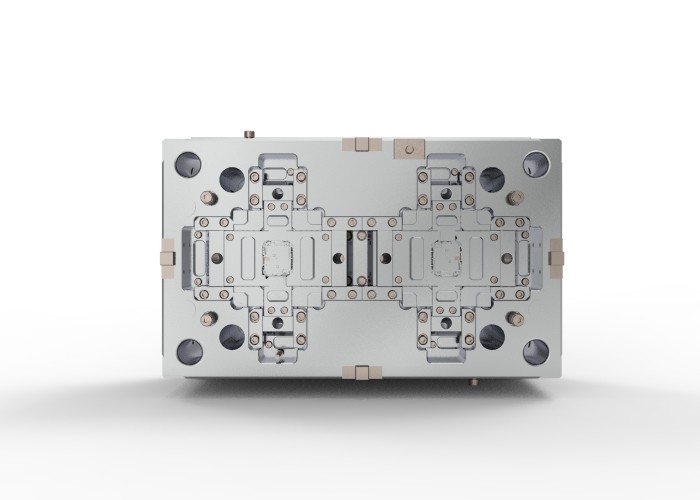

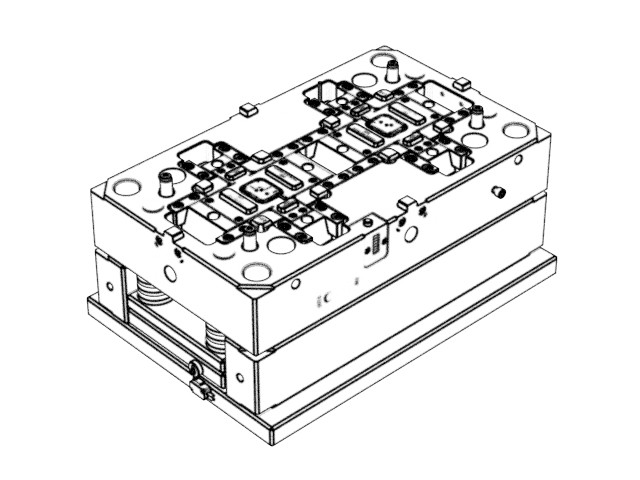

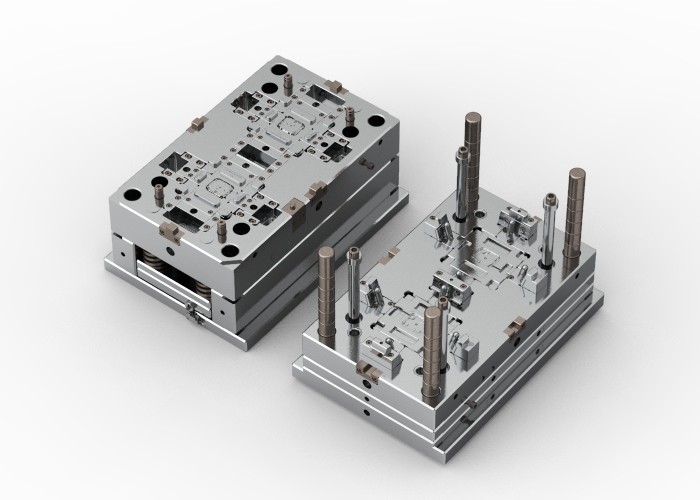

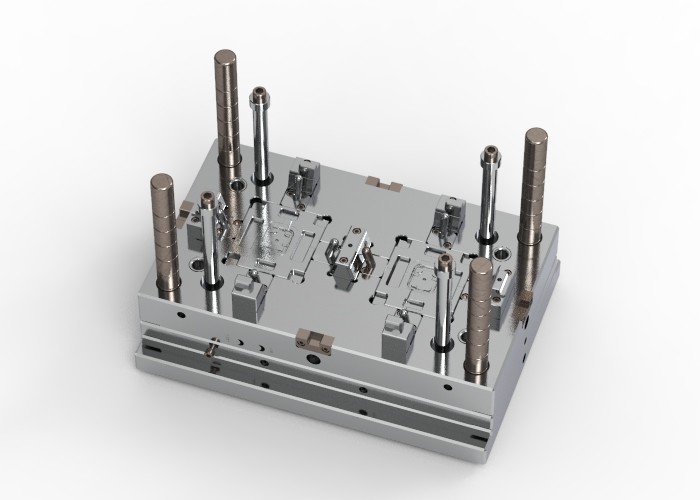

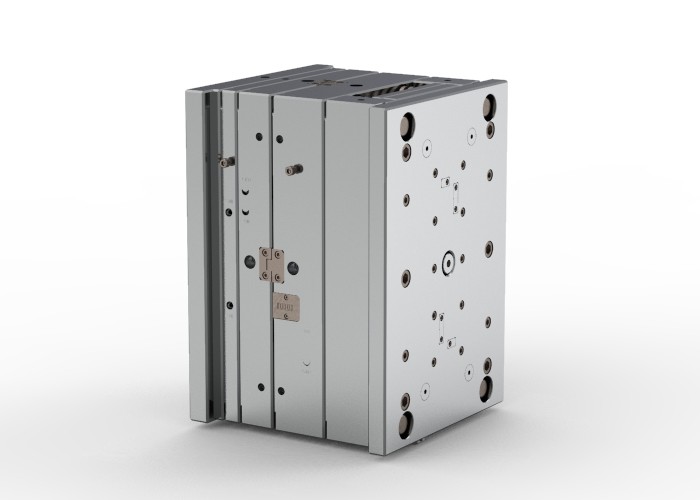

Display diagram
