OEM/ODM：Custom Consumer Electronics Molds / Transparent Front Housing LDS (1*2) No.22397
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Smart Watch |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350.000 X 500.000 X 346.000 | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 373kg | Mold Base | FCI3050 1 Set A60-B90-C90 |
| Brand | Chitwing | Type | Three Plates Mold |
| Part Material | PC | Tool Life | 500K Shots |
| Injection Runner System | Hot Runner | ||
| High Light | LDS Polypropylene Injection Molding,Polypropylene Injection Molding Three Plate,Hot Runner abs injection moulding |
||
Product Description
Transparent Front Housing LDS (1*2)
No.22397
2x hot runner valve gates turn to cold runner pin point gates, standard mold base FCI3050,
mold size: 350 X 500 X 346mm
Origin: Guangdong, China
| Part material | PC |
| Tool life | 500k shots |
| Surface finish | 1. Large surface EDM with VDI 18# |
| 2. Waterproof surface polished to 1000# sandpaper | |
| Cavity | Harden (1*2/S136) |
| Core |

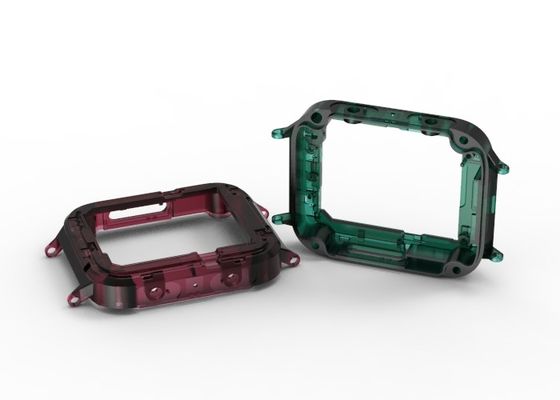

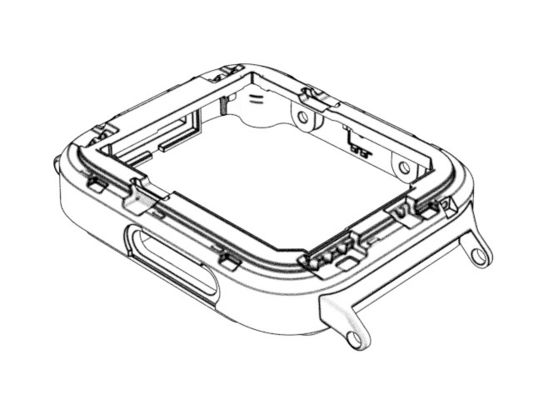

Part size: 41.3 * 56.24 * 10.6mm, Part weight: 3g

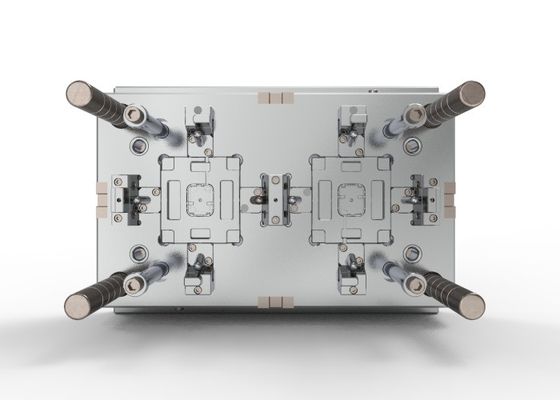

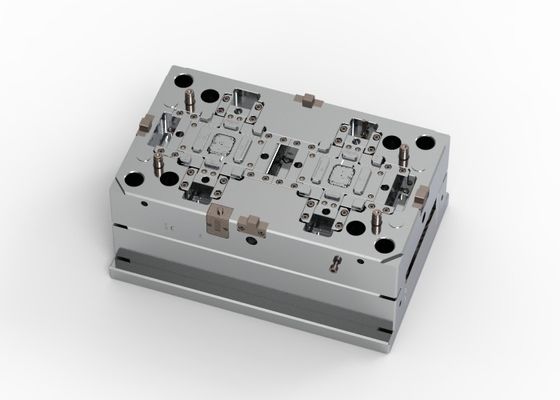

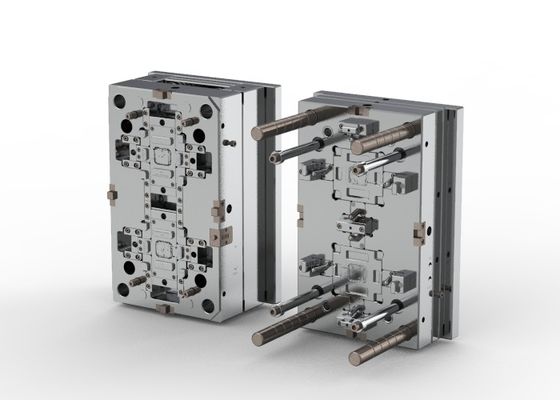

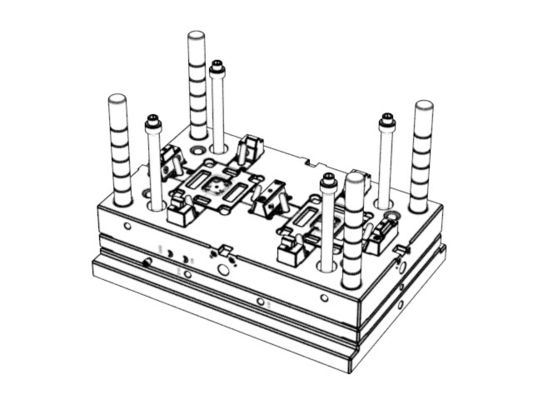

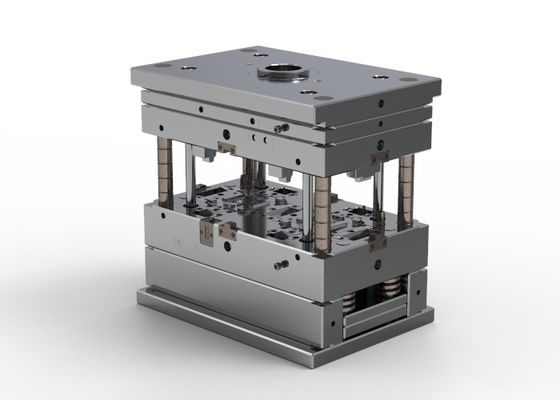

With 4 slides and 5 lifters, three-plate mold structure, the tool life up to 500k shots, the high
degree of automation greatly shortens the cycle time
Display diagram
