OEM / ODM ： Polypropylene Injection Molding & Transparent disinfection box lower cover (1*1) No.23771
| Place of Origin | India |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Disinfection Box |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 450.00 X 550.00 X 451.00 | IMM Tonnage | 140T |
|---|---|---|---|
| Mold Weight | 707KG | Surface Finish | VDI18#/EDM With Charmilles VDI30# |
| Steel Of Cavity And Core | Harden (1*1/S136) | Standard | LKM |
| Gate | Sub Gate | Type | Three-plates Mold |
| High Light | Box Cover Polypropylene Injection Molding,140T Polypropylene Injection Molding,LKM Injection Mold Cold runner |
||
Product Description

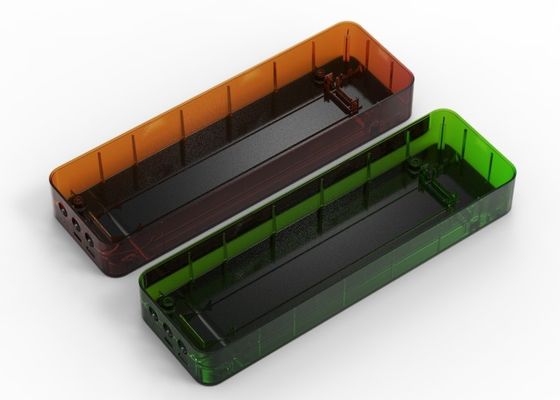

Transparent disinfection
box lower cover (1*1)
No.23771

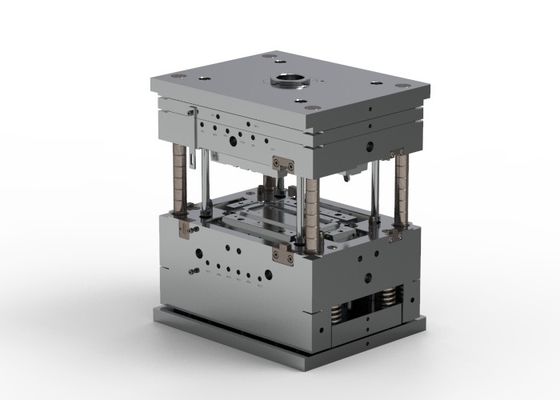

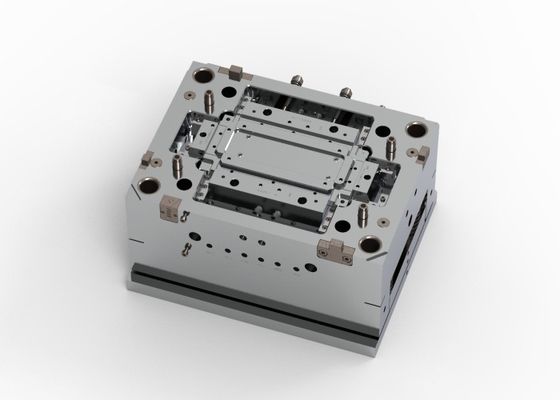

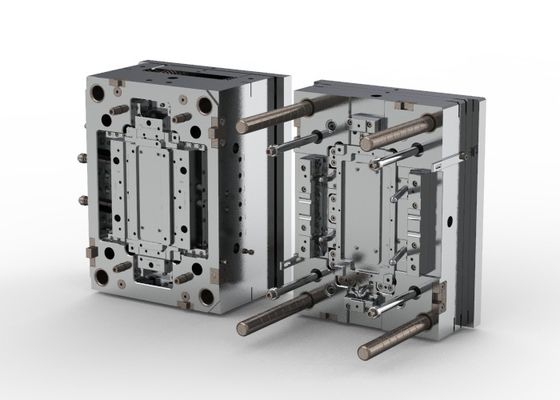

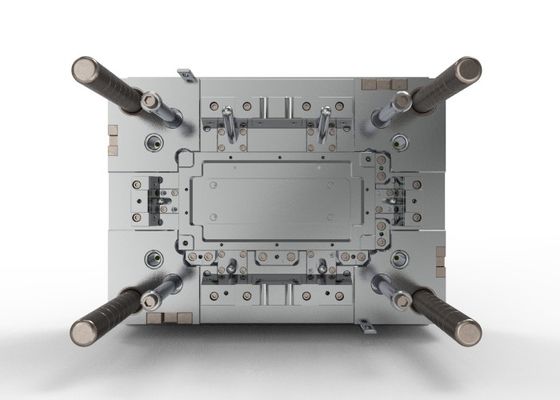

| This is a three-plates mold developed (designed and manufactured) by Chitwing with standard mold base, the pin point gate turns to the side gate and sub gate, harden the surface to have good anti-fatigue and anti-wear performance and high hardness, with uniform wall thickness; the mold size is (L)450x(W)550x(H)451mm, the net weight is 707 kg, LKM standard. The molded part size is (L)240x(W)32.1x(H)75mm, and the part weight is about 87g; the mold fits 140T machine | |||||
|
||||||||||
| Steel of cavity and core | ||
| Harden (1*1/S136) |
| Mature mold design concept greatly reduces loss of material, shortens the cycle time, improves molding quality, with clear details and no burrs | |||||

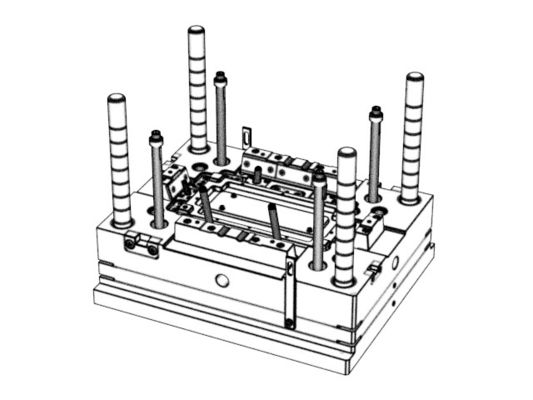

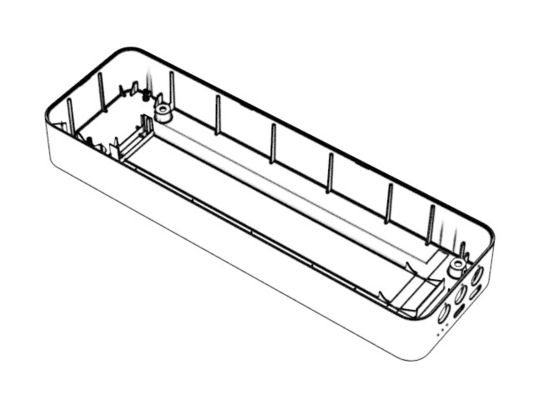

Display diagram
