Medical Instrument PN-2055 (1*2) / Two-plates mold / Hot runner No.21061
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 450.000 X 356.000 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 310kg | Injection/runner Type | Hot Runner |
| Slide | 1 | Part Weight | 7.3g |
| Part Size | 43.75 X 85.49 X 14.88mm | Type | Two-plates Mold |
| Steel Of Cavity And Core | Harden With 1*2/S136 |
Product Description

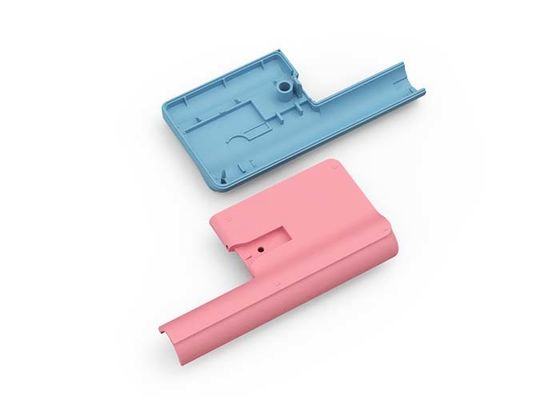

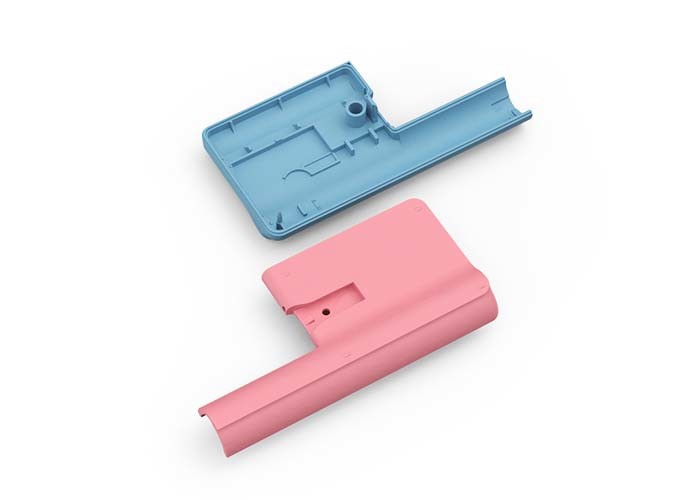

Medical Instrument PN-2055 (1*2)
No.21061
|
Standard mold base P/N: CI2545.609080. Net weight: 310 kg |
LKM standard | ||||||
| Gate: cashew gate Type: Two-plates mold |
Steel of cavity and core: harden with 1*2/S136 |
||||||
| Surface finish: ⑴ MT11010 (2) Partial surfaces polished to SPI-A2 ⑶ Partial surfaces polished to SPI-B2 |
Greatly improve surface hardness, anti-wearing performance and smoothness; parts not sticking with the mold, with smooth surface free of burrs, flow mark and gas marks, more aesthetic |
||||||
| Injection/runner type: Hot runner | Features: 1 slide | ||||||
△ IMM tonnage: 130T
△ Part material: PC/Part weight: 7.3g/Part size: 43.75 X 85.49 X 14.88mm

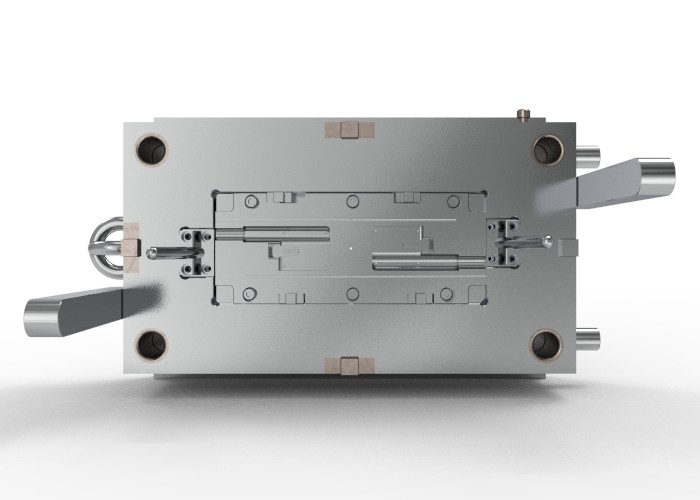

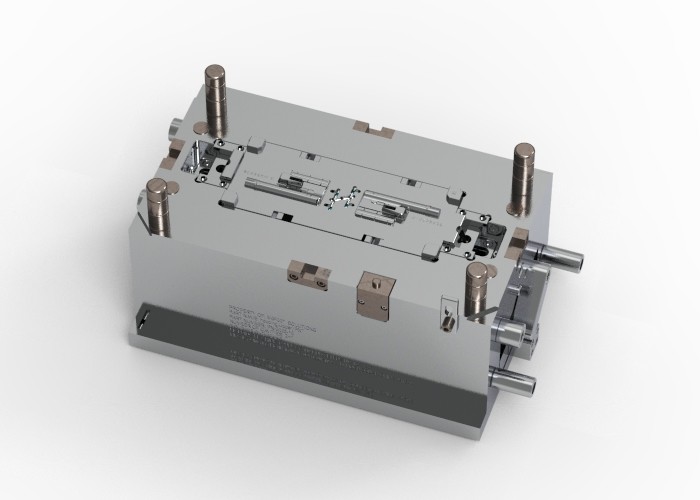

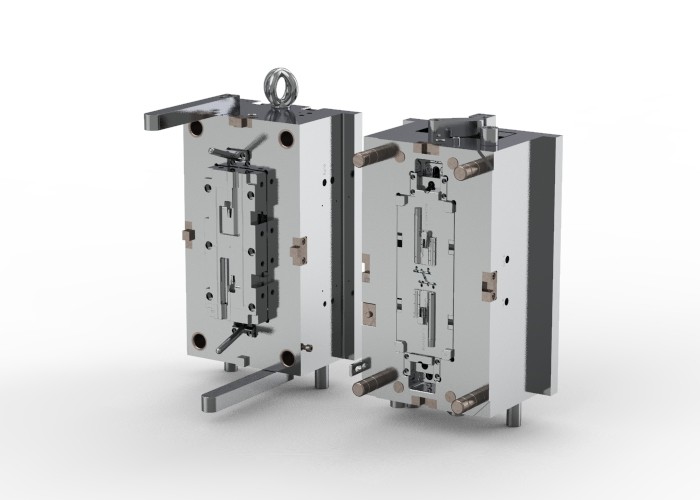

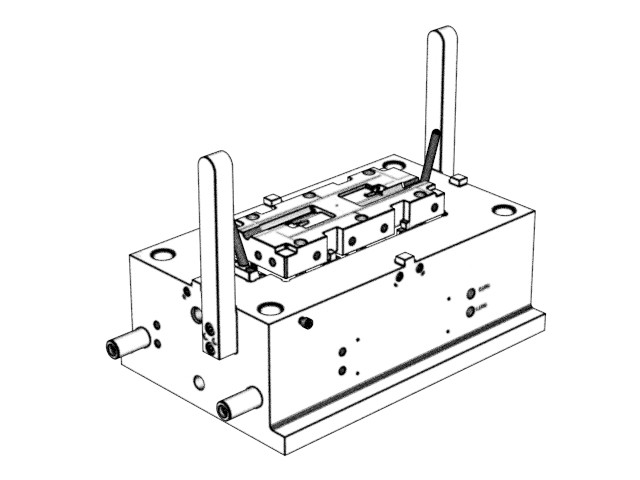

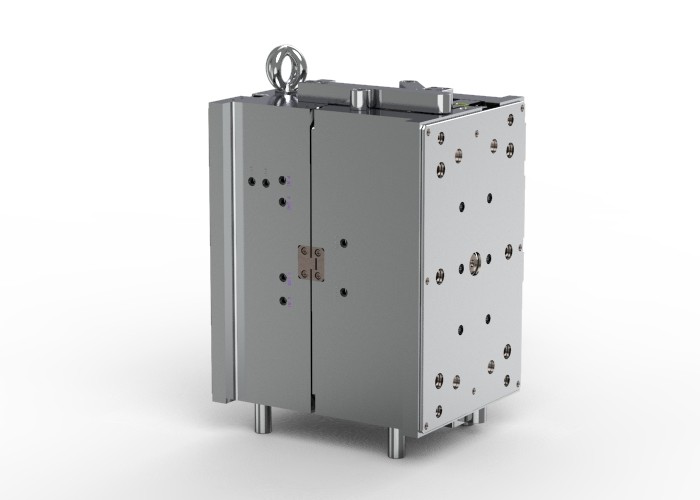

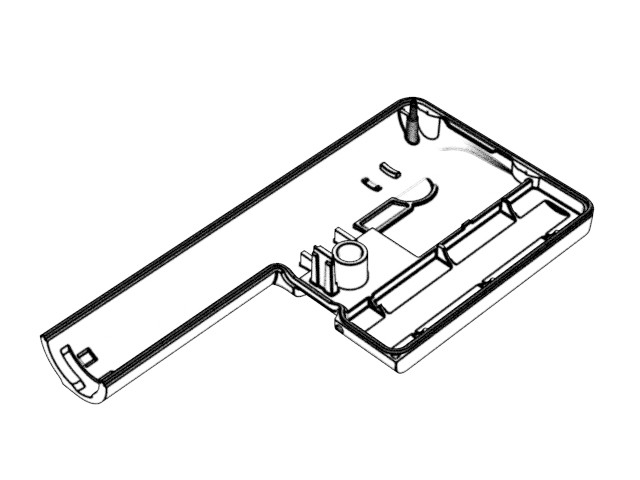

Display diagram
