OEM/ODM Custom Medical Device Molds / Medical Instrument PN-1395 (1*4) No.21066
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | (3D)UG 4.0/ (2D）CAD |
| Mould Life | 500000 Shots | Runner | Cold Runner |
| Type | Two-plates Mold | Gate | Side Gate |
| Mold Type | Medical Device Molds |
Product Description

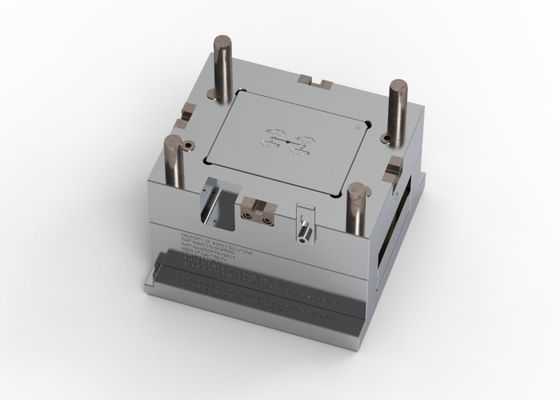

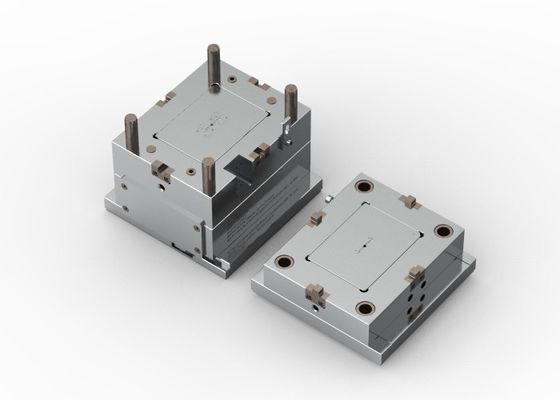

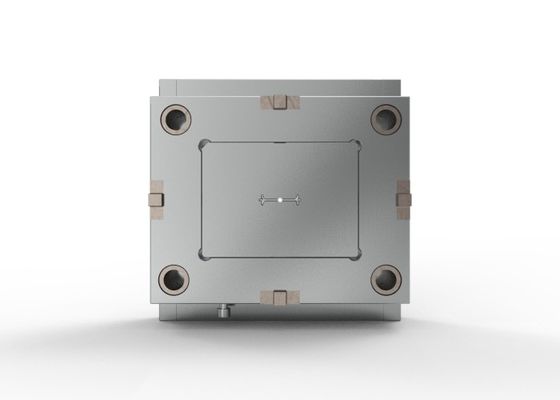

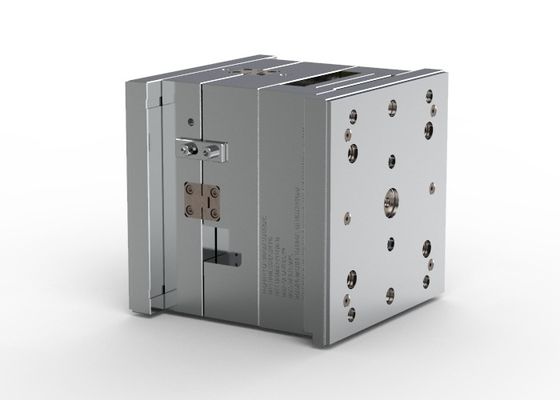

Medical Instrument
PN-1395 (1*4)
No.21066
| Standard mold base P/N: CI2025.507070 | LKM standard Mold size: 250X250X251mm | Net weight: 94 kg |
|||||
| Type: Two-plates mold | Gate: Side gate | Part material: PC | |||||
| Injection/Runner Type: Cold runner |
[Surface finish]: Polished to SPI B-2
[Steel of cavity and core]: harden with 1*4/S136
To improve the surface smoothness, hardness, anti-wearing and anti-corrosion performance
Tool life up to 500k shots
[IMM tonnage]: 100T
[Weight]: 0.05g

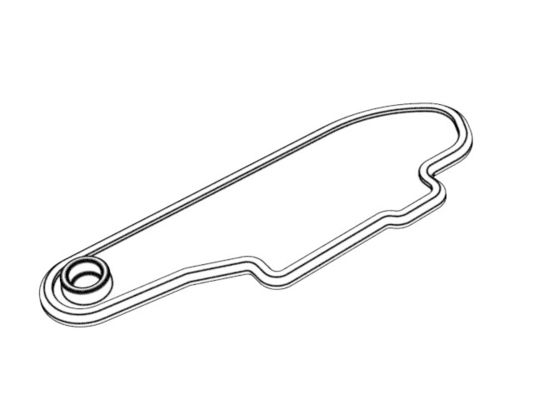

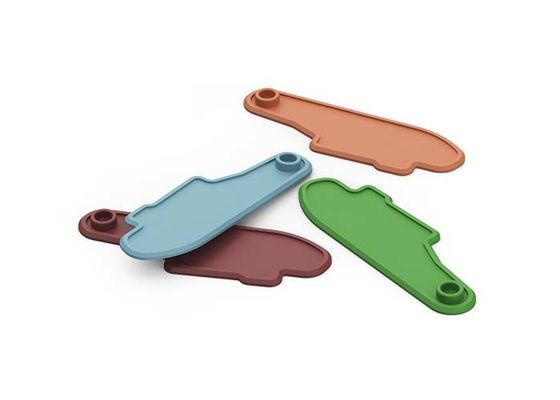

[Part size]: 7.33 X 21.44 X 1.11 mm

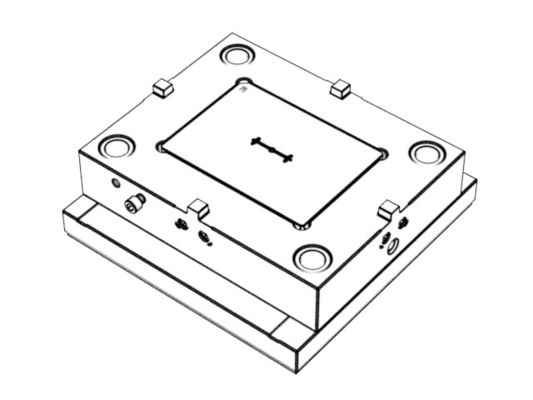

Display diagram
