OEM / ODM ： Precision Injection Molding & Earphone terminal (1*8) No.23570
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 110.000 X 330.000 X 125.000 | IMM Tonnage | 60T |
|---|---|---|---|
| Mold Weight | 27.54kg | Standard | LKM |
| Type | Two-plates Mold | Slide | 2 |
| Part Material | PA | Gate | Sub Gate |
| Design Software | <3D:UG 4.0>/ <2D:CAD> | ||
| High Light | 60T Precision Injection Molding,PA Precision Injection Molding,PA Cold Runner Injection Molding |
||
Product Description

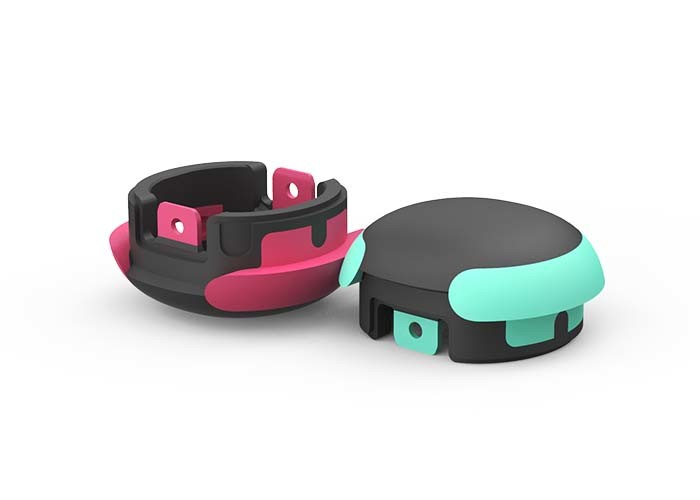

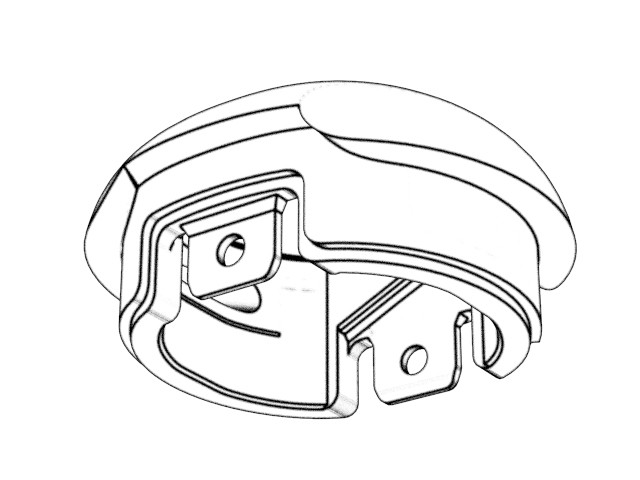

Earphone terminal (1*8)
No.23570
| Mold information | ||
| Size | 110 X 330 X 125mm | |
| Type | Standard | Gate |
| Two-plates mold | LKM | Sub gate |
|
|
| Cavity | Core |
| Harden with 1*8/S136 | |
| Part material/weight | Part size | IMM Tonnage | ||||
| PA/0.03g | 6.21 X 5.61 X 2.91mm | 60T | ||||
Considering the cost and the feasibility, the two-plate mold is designed with cold runner and
two slides, scientific and stable molding quality, good fitted; A surface polished to SPI-A3, and
harden the surface to improve smoothness, hardness, anti-wearing and anti-corrosion
performance and prevent sticking of molten PA. The molded parts have short cycle time,
minimized loss of material, complete and smooth appearance, low cost and high quality

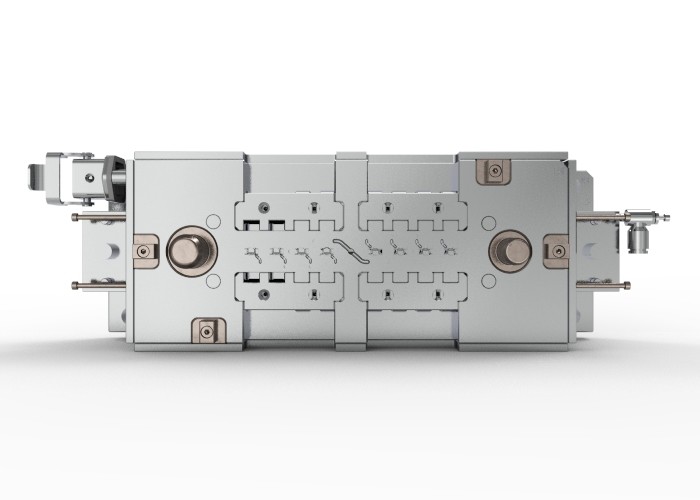

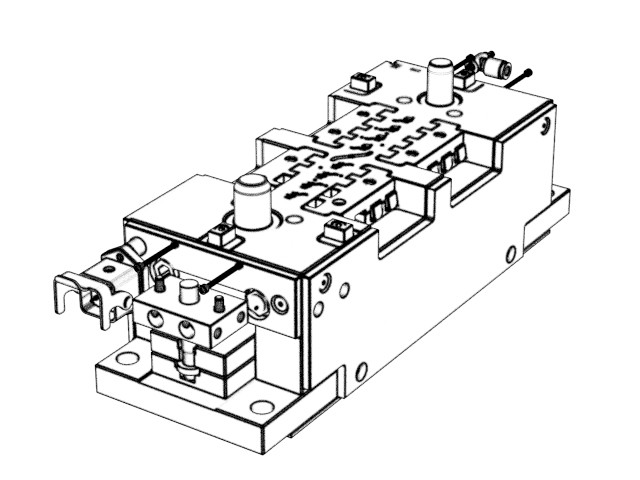

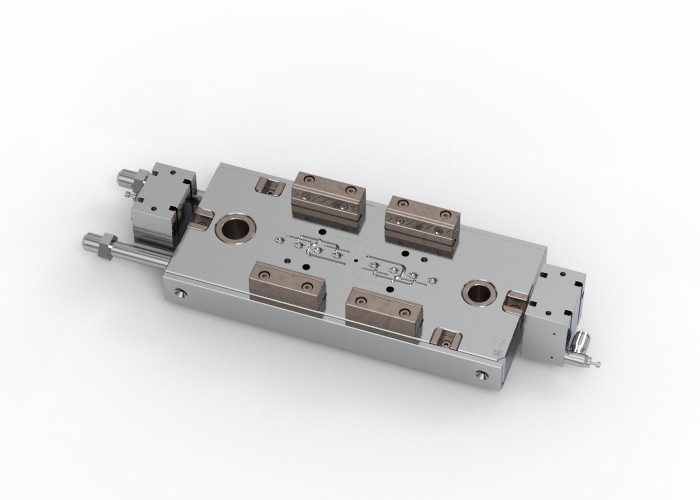

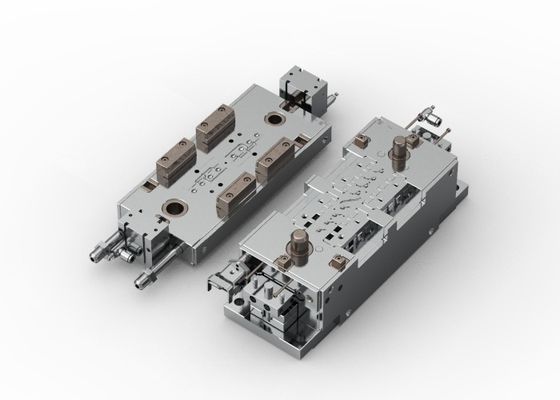

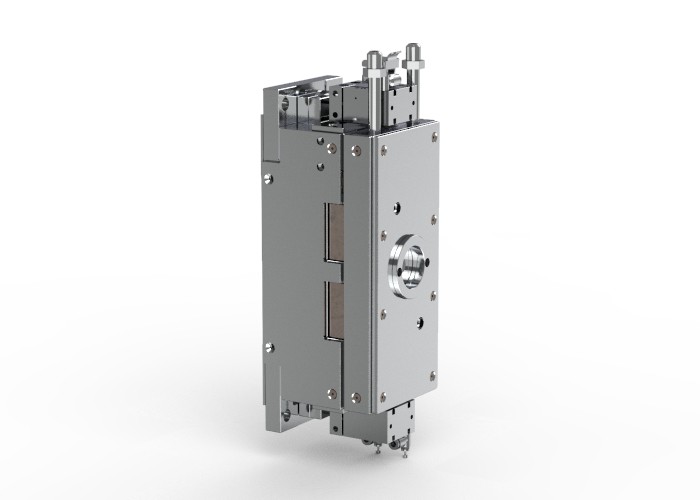

Display diagram
