OEM / ODM ： Precision Injection Molding & Left Bracket Of Earphone Charging Box (1*4) No.24199
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone Charging Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300 X 270 X 281 | IMM Tonnage | 110T |
|---|---|---|---|
| Mold Weight | 137KG | Material | PC+ABS |
| Part Weight | 0.6g | Steel Of Cavity And Core | Harden (1*4/S136) |
| Type | Two-plates Mold | Standard | LKM |
| Design Software | 3D:UG 4.0, 2D:CAD | ||
| High Light | 500k Shots Injection Moulding,LKM injection moulding,Cold Runner injection moulding |
||
Product Description
left bracket of
earphone charging box (1*4)
No.24199
Standard mold base P/N: CI2527.609080
| Length | Width | Height | Net weight |
| 300 | 270 | 281 | 137kg |

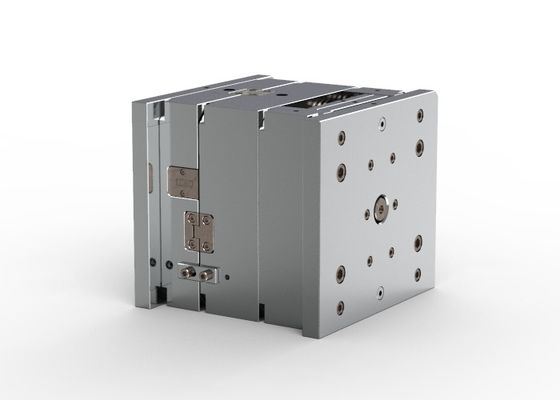

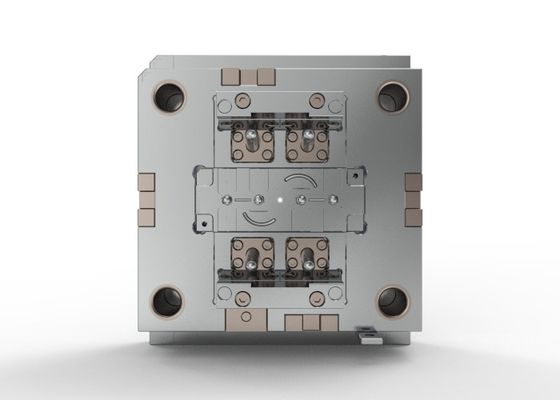

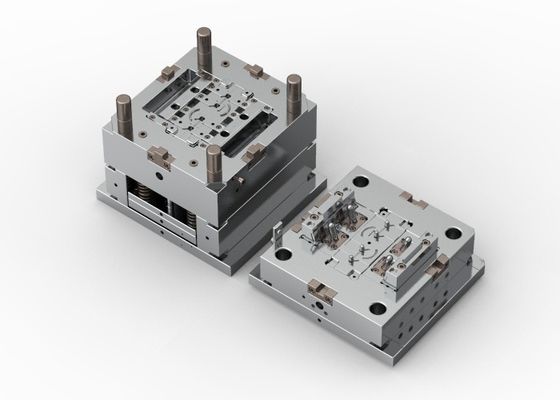

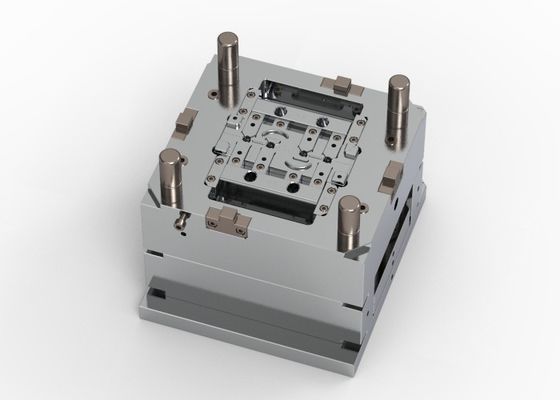

The mold was developed (designed and manufactured) by Chitwing. It is made of high-quality
steel, with consideration of cost control, molding quality optimization and production capacity,
being a set of mold with high cost performance. The mold adopts side gate and mature
manufacturing process. A surface polished to SPI-A1, and the inner surface EDM with
VDI21# (Makino). Harden the cavity and core with 1*4/S136 to improve the hardness and
anti-wearing performance. The part has clear details. The tool life is up to 500k shots and fits
110T machine.
Standard: LKM
Injection/runner type: cold runner
Type: Two-plates mold
Features: 2 slides

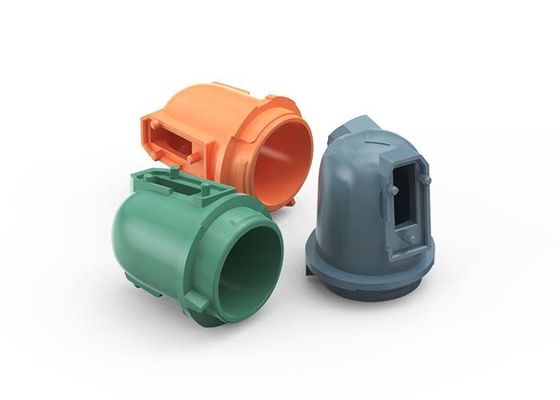

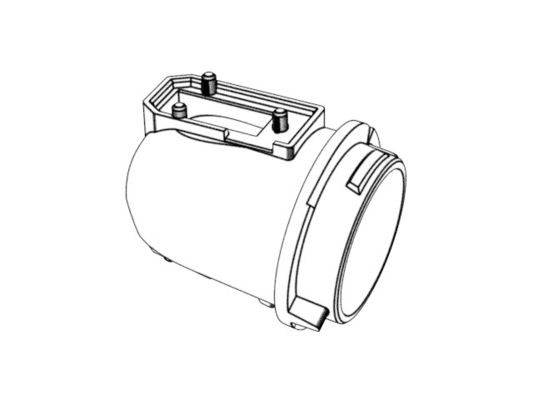

| Molded part | ||
| ① Material | ② Size | ③ Net weight |
| PC+ABS | 12.10 X 11.86 X 14.09mm | 0.6g |

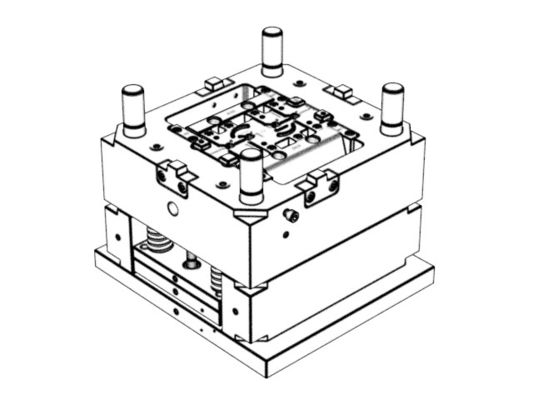

Display diagram
