OEM / ODM ：Consumer Electronics Molds / Earphone left front shell (1*4) No.24205
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 550 X 600 X 551 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 856KG | Type | Three-plates Mold |
| Gate | Cashew Gate | Tool Life | 500k Shots |
| Custom Mold Base P/N | DAI4560 | Design Software | 3D:UG 4.0, 2D:CAD |
| Runner Design | Insulated Runner Hot Runner | Forming Method | Encapsulation Molding |
| Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate | Mold Type | Consumer Electronics Molds |
| High Light | Earphone Housing Precision Injection Molding,100T Precision Injection Molding,LKM Injection Molding Hot Runner |
||

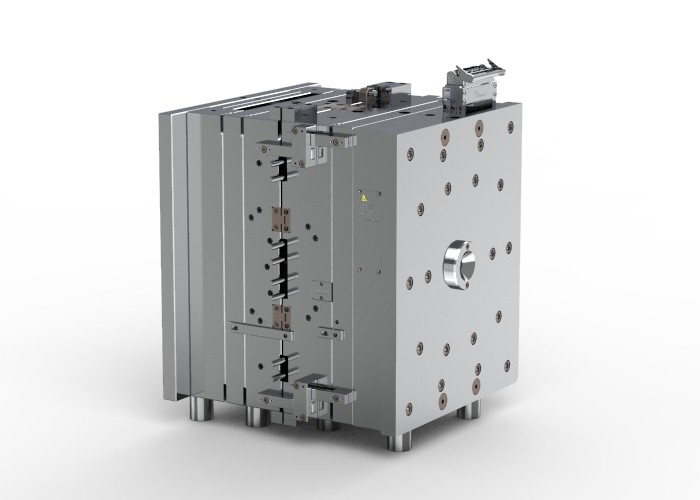

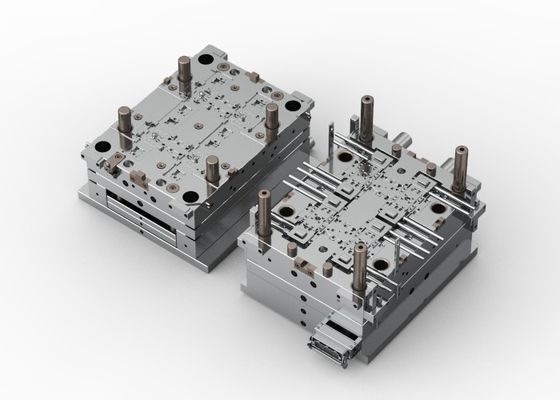

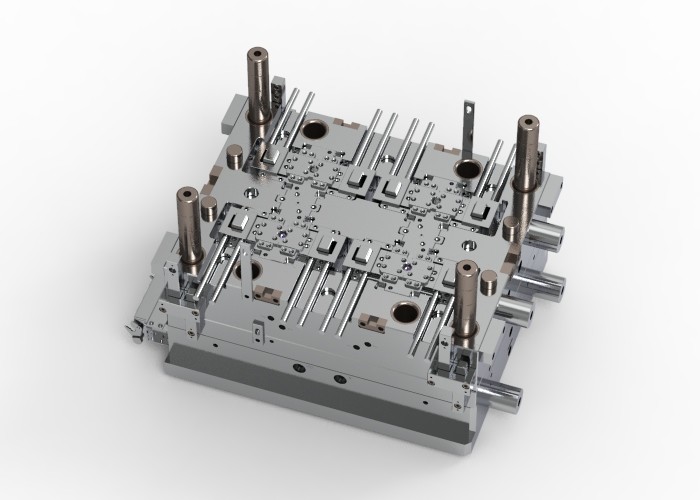

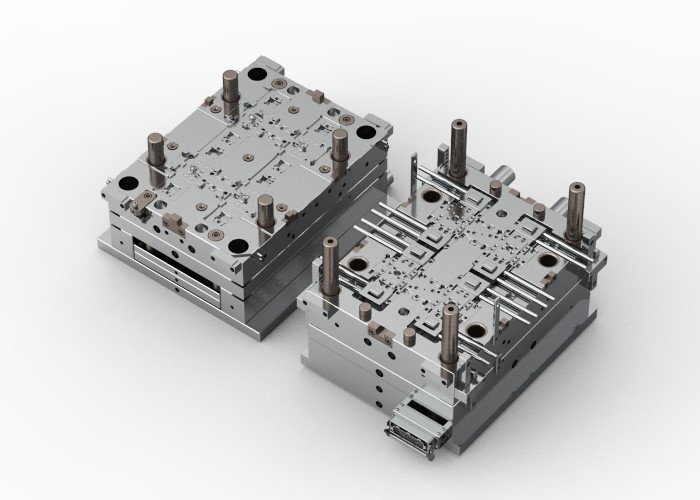

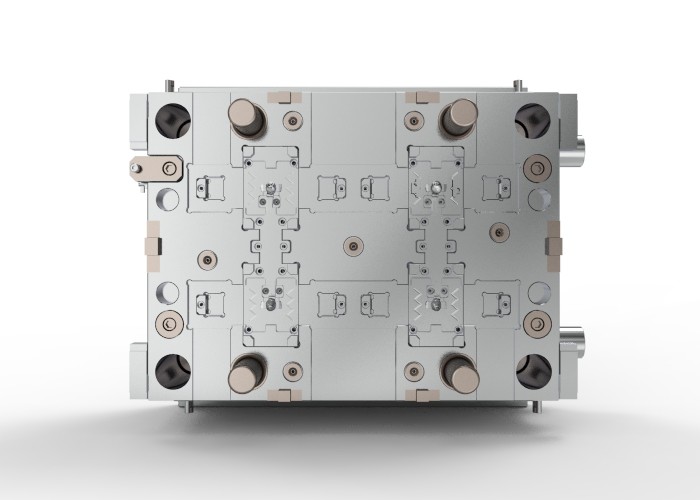

Product Description
Earphone Left Front Housing (1*4)
No.24205
Brand: Chitwing
Custom mold base
Cavity angled slide
| Mold | Size | Length | 550 | Fit 100T machine | |
| Width | 600 | ||||
| Height | 551 | ||||
| Net weight | 856kg | ||||
| Gate | Cashew gate (the hot runner turns to cold runner) | ||
| Injection/runner type | Hot runner | ||
| Open hot runner | 2 | ||
LKM standard, the A surface polished to SPI-A1, three-plates mold structure, the tool life is
up to 500k shots; the part material is PC+ABS, the mold has minimized cold slug and the
molded part has clear details due to scientific design.
| Cavity | Core |
| Harden (1*4/S136) | Harden (1*4/S136) |

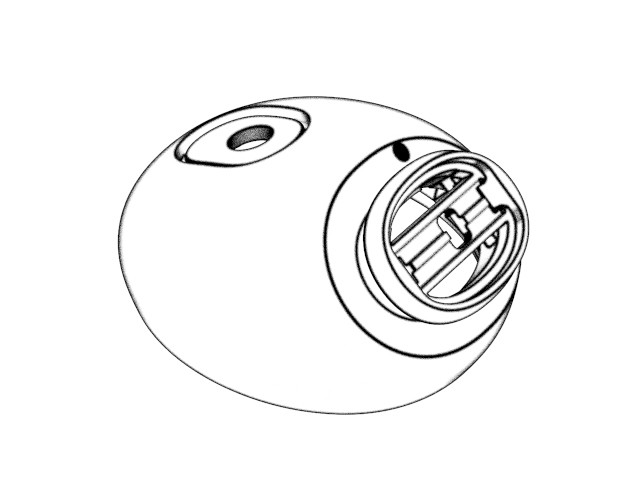

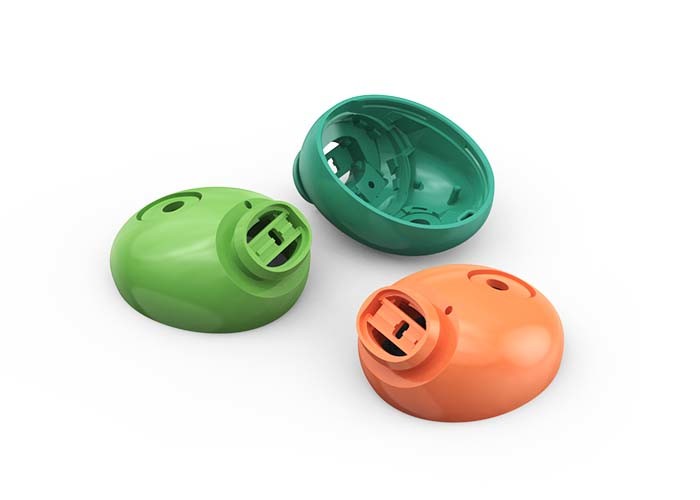

The part size is 19.06 X 15.70 X 9.76mm and the part weight is only 0.45g

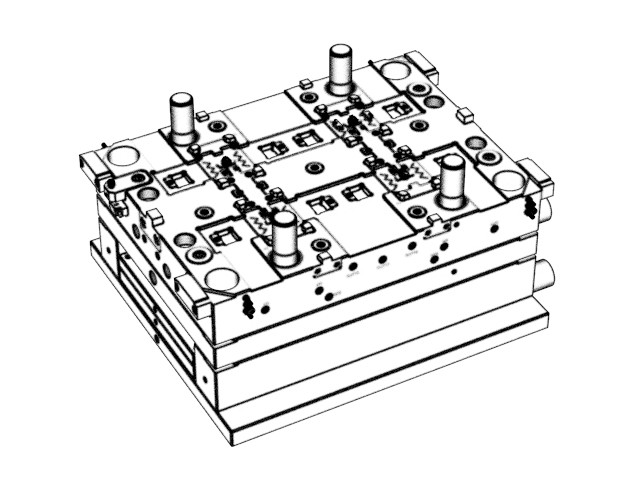

Display diagram
