OEM / ODM ： Precision Injection Molding & Transparent Instrument PN-2044 (1*4) No.21072
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | CWM21072 Instrument PN-2044 -B |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 102kg | Standard | LKM |
| Design Software | <3D:UG 4.0>/ <2D:CAD> | Mould Life | 500，000 Shots |
| Runner | Cold Runner | Gate | Cashew Gate |
Product Description

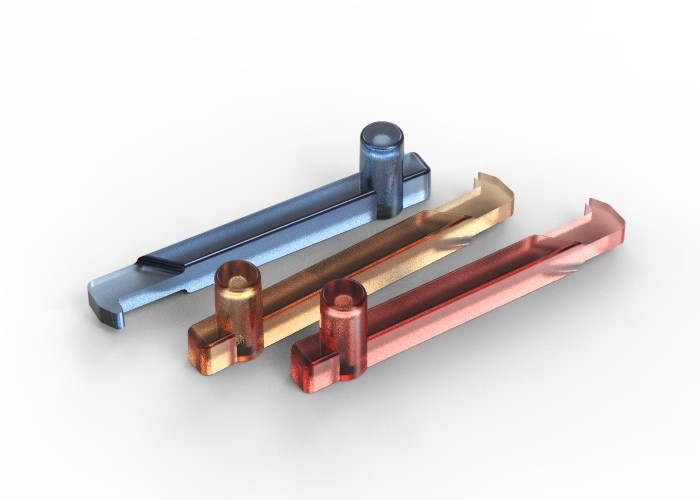

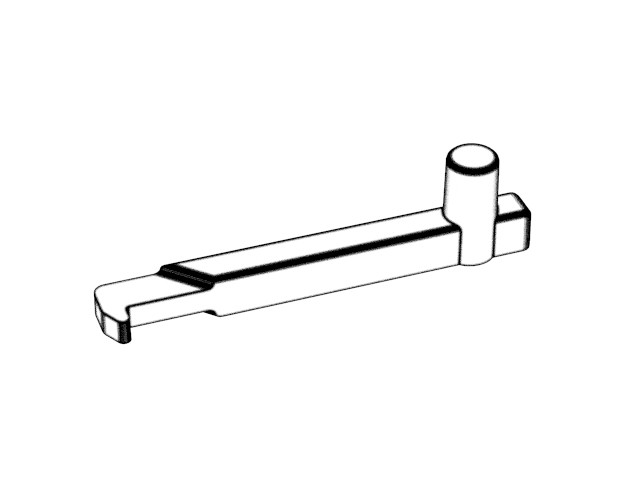

Transparent Instrument PN-2044 (1*4)
No.21072
|
[Mold base]:Standard mold base CI2025.507070 |
|||||
| [Standard]: LKM | [Mold weight]: 102 kg | ||||
| [IMM tonnage]: 100T | |||||
| [Gate]: Cashew gate, suitable for TPEE with good toughness; self-degating | |||||
| [Injection/Runner Type]: Cold Runner |
| [Type]: Two-plates mold, with simple structure, easy operation, can meet the requirements of automatic demolding. Minimized failures, long tool life, short cycle time and low cost. | |||||
| [Part material]: TPEE | |||||
| [Part weight]: 0.01g | |||||
| [Part size]: 1.64 X 10.37 X 2.65mm |
| [Steel of cavity]: Harden (1*4/S136) |
[Steel of core]: Harden (1*4/S136) |
[Surface finish]: Polished to SPI-B1 |
|||
|
Polish and harden the mold to improve hardness, anti-wearing and anti-corrosion performance; the tool life is up to 500k shots |
|||||

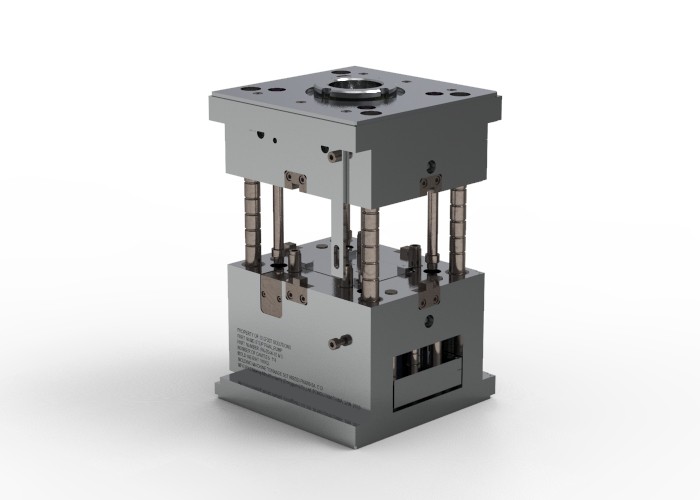

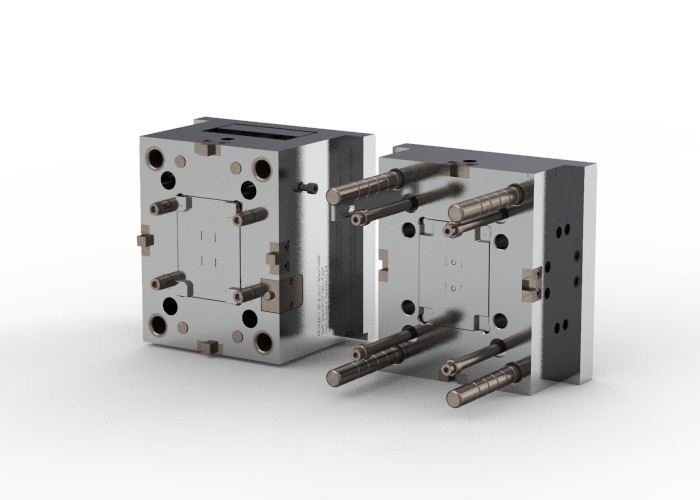

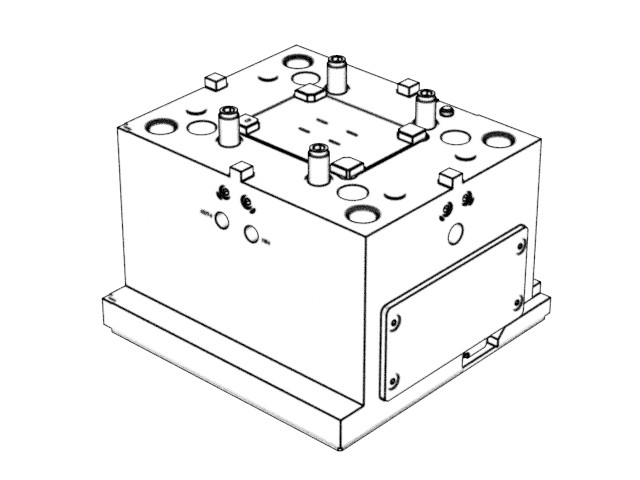

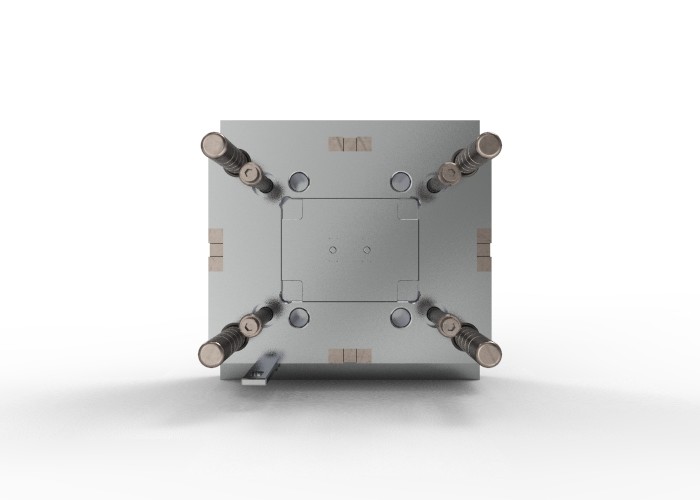

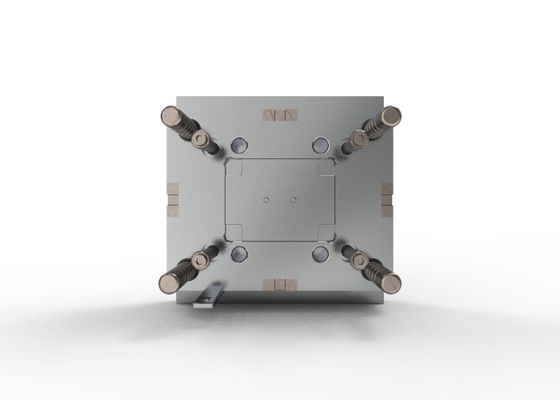

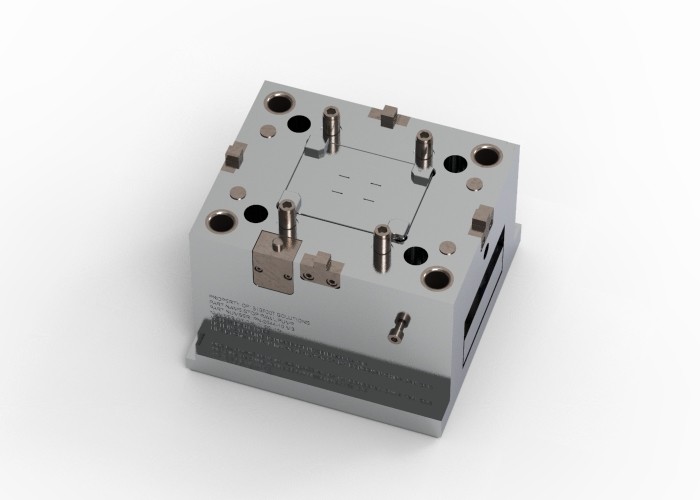

Display diagram
