Transparent Clamshell Phone Front Cover (1*1) / Two-plates mold / Cold runner No.21869
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 13 Lifters | Size | 300.000 X 300.000 X 281.000 |
|---|---|---|---|
| IMM Tonnage | 110T | Mold Weight | 152kg |
| Standard | LKM | Mold Base P/N | CI2530 609080 |
| Design Software | 3D:UG 4.0, 2D:CAD | Mould Life | ≥500000 Shots |
| Part Material | PC | Type | Two-plates Mold |
Product Description
Transparent Clamshell
Phone Front Cover (1*1)
No.21869
Part details:
|
Mold size: 300X300X281 Mold weight: 152kg |
IMM Tonnage: 110T Type: Two-plates mold Gate: Submarine gate Tool life: 500K shots |
Part material: PC Part size: 55.6X6.23X103.98mm Part weight: 8.7g Features: 13 lifters |
|
Surface finish: A surface EDM with VDI27# to improve the roughness so that the molded part is more smooth. High glossiness makes the part not stick to the mold, so that the part can be demoulded smoothly |
|
Steel of cavity & core: Harden (1*2/S136). S136 is a plastic mold steel with excellent corrosion resistance, excellent partion characteristics, good comprehensive mechanical property and high polishing performance. |
| Injection/runner type: | Cold runner |

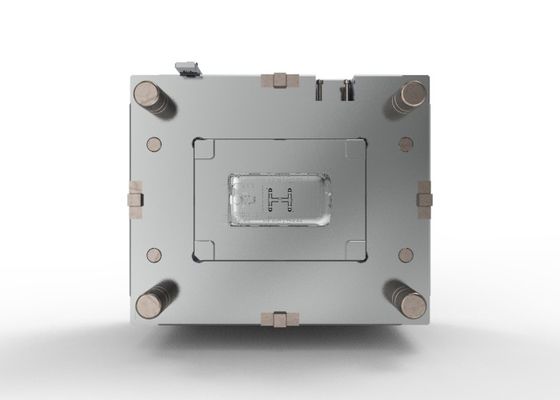

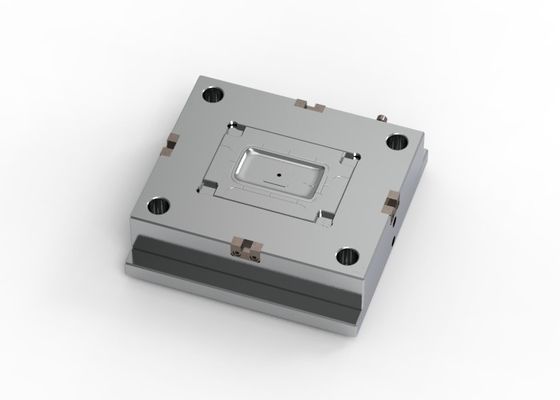

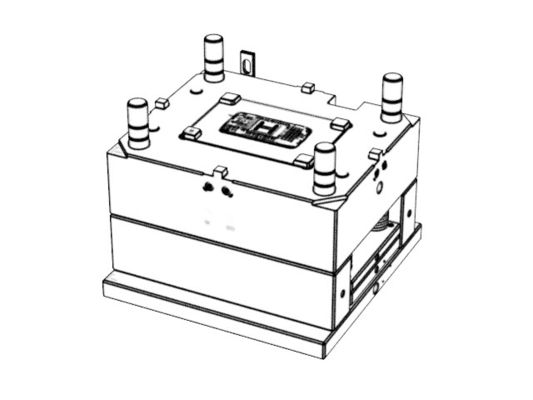

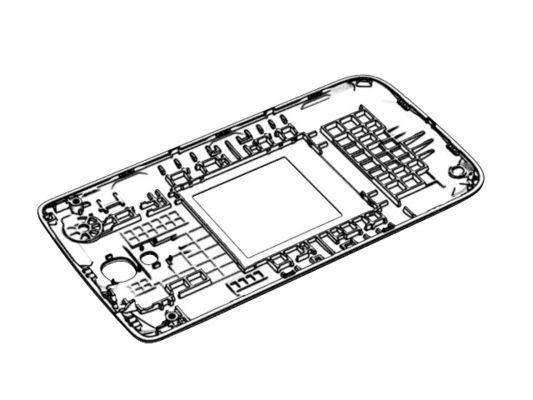

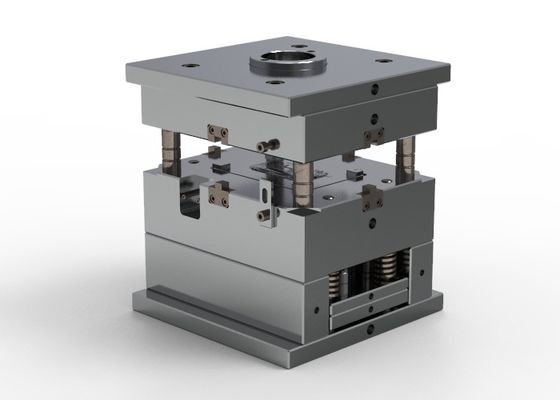

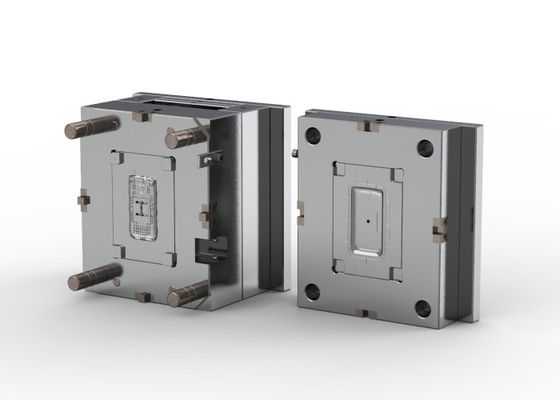

Display diagram
