OEM / ODM ： Precision Injection Molding & VR Transparent Knob Control Shaft (1*4) No.22732
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Material | EcoPaXX-Q-KS | IMM Tonnage | 80T |
|---|---|---|---|
| Mold Weight | 145kg | Tool Life | 500k Shots |
| Injection Type | Cold Runner | Runner Type | Cold Runner |
| Steel Of Cavity | Harden (1*4/S136) | Steel Of Core | Harden (1*4/S136) |
| Part Weight | 4g | ||
| High Light | Harden Precision Injection Molding,80T Precision Injection Molding,500k shots Precision Injection Molding |
||
Product Description
VR Transparent Knob Control Shaft (1*4)
No.22732

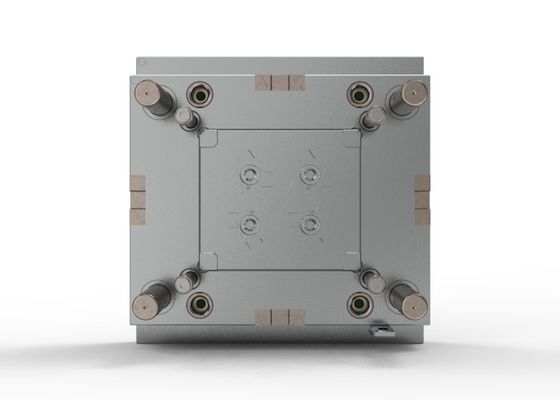

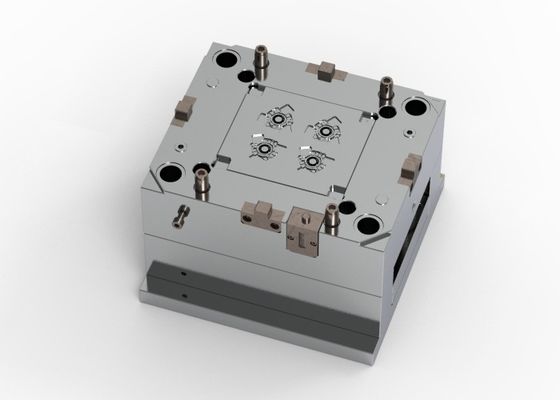

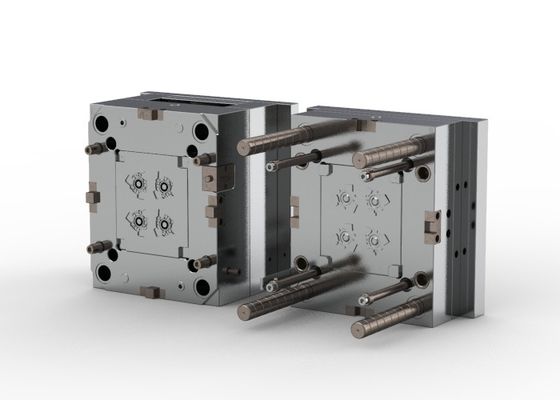

The mold is designed with cold runner, core insert, serrated wire cutting, LKM standard.
The cavity and core are hardened to have higher anti-wearing performance and higher hardness.

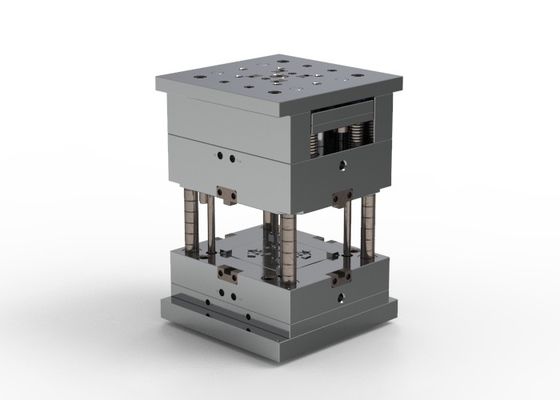

This is a three-plates mold with polished surface and pin point gate.
| Tool life | 500k shots |
| Part material | EcoPaXX-Q-KS |
| Net weight | 145kg |
| Size |
300.00 X 300.00 X 316.00mm |
The mold weight is 145kg, and the IMM tonnage is 80T.

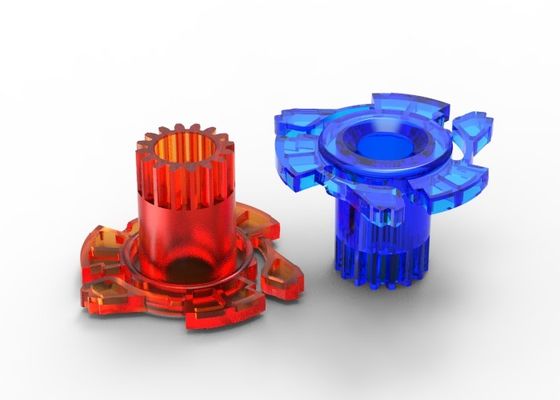

The molded part has high precision and uniform texture; the part weight is 4g,
the part size is 33.63X35.01X22.26 mm, with clear details and smooth surface

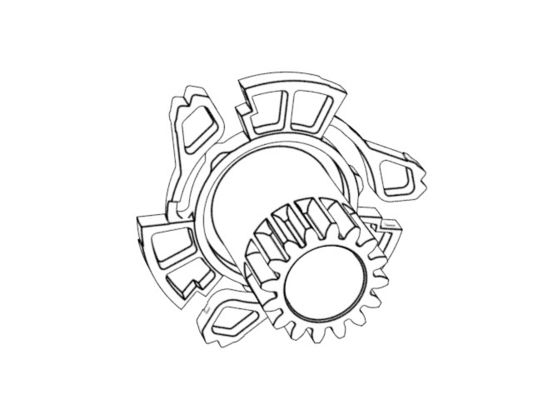

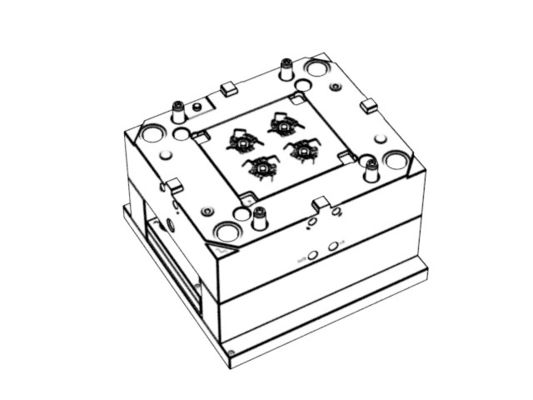

Display diagram
