OEM / ODM ： Precision Injection Molding & Upper cover of transparent earphone charging box No.24195-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone Charging Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Slides, 5+1 Gate Lifters | Size | 350.00 X 400.00 X 351.00 |
|---|---|---|---|
| IMM Tonnage | 130T | Mold Weight | 315KG |
| Tool Life | ≥500K Shots | Gate | Sub Gate |
| Surface Finish | SPI-A1/polished To 1000#/VDI21# (Makino) | Part Material | PC+ABS |
| Part Weight | 4.5g |
Product Description

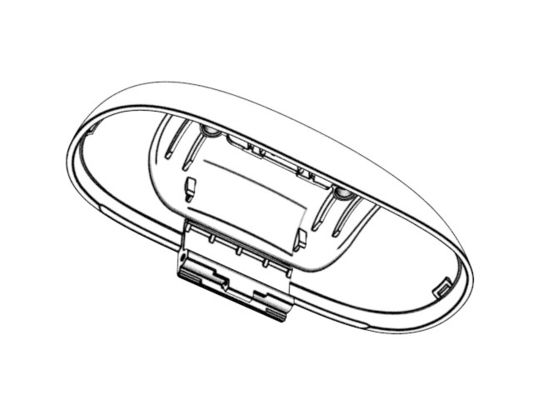

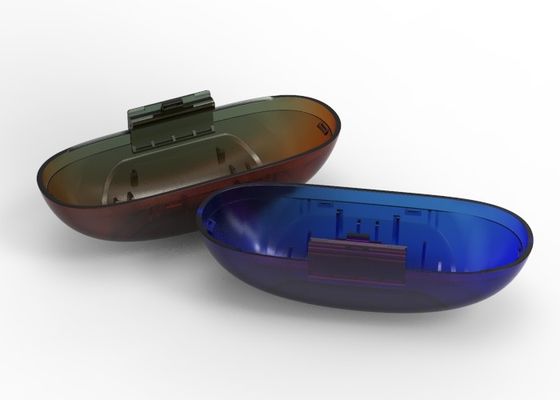

Upper cover of transparent
earphone charging box
No.24195-B
Brand: Chitwing
Origin: China
The mold was developed (designed and manufactured) by Chitwing, and is designed with hot
runner free of cold slug to save costs and reduce production loss and short cycle time.
Hot runner turns to cold runner sub gate. Surface finish: 1. A surface polished to SPI-A1;
2. Secondary surface polished to 1000# sandpaper; 3. Other surfaces EDM with
VDI21# (Makino). Harden the cavity and core to have high hardness and good anti-wearing
performance; and the cavity and core > 50HRC.
| Mold net weight | 315kg | Standard | LKM |
| Length | 350 | Features |
2 slides |
| Width | 400 | 5+1 gate lifters | |
| Height | 351 | IMM Tonnage | 130T |
| Part material | PC+ABS |
| Part weight | 4.5g |
| Part size | 62.89X23.96X20.53mm |

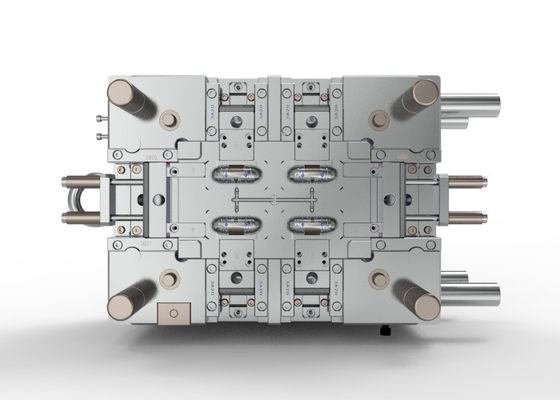

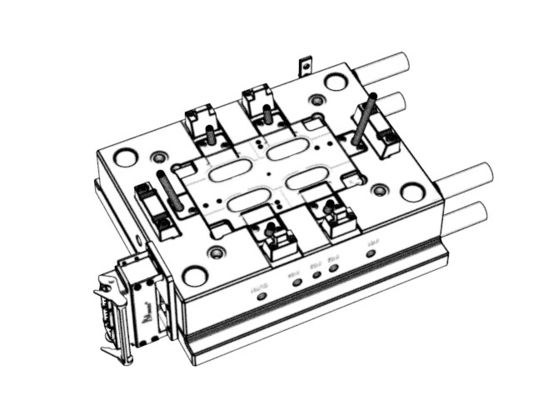

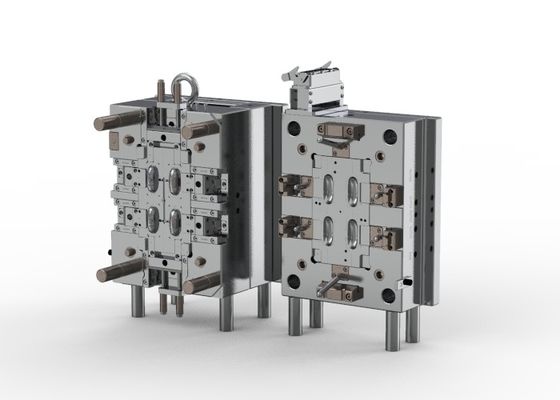

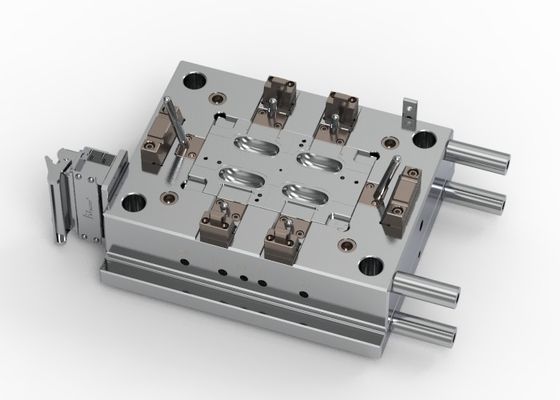

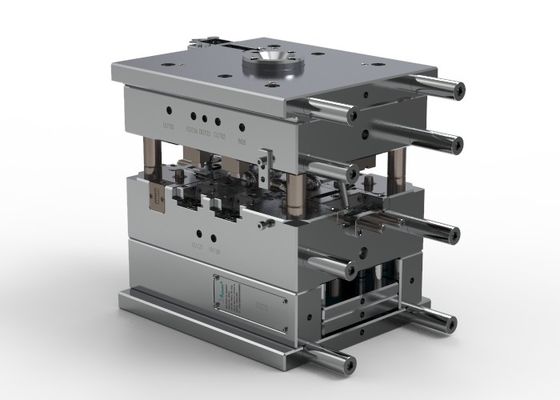

Display diagram
