OEM / ODM ： Precision Injection Molding & Transparent earphone charging box left bracket (1*4) No.24199
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone Charging Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 2 Slides | Mold Lifespan | 500K Shots |
|---|---|---|---|
| IMM Tonnage | 110 T | Mold Weight | 137KG |
| Standard Mold Base P/N | CI2527.609080 | Standard | LKM |
| Injection/runner Type | Cold Runner | Type | Two-plates Mold |
| High Light | 110 T Precision Plastic Injection Molding,LKM Precision Plastic Injection Molding,500k Shots Precision Plastic Injection Molding |
||
Product Description

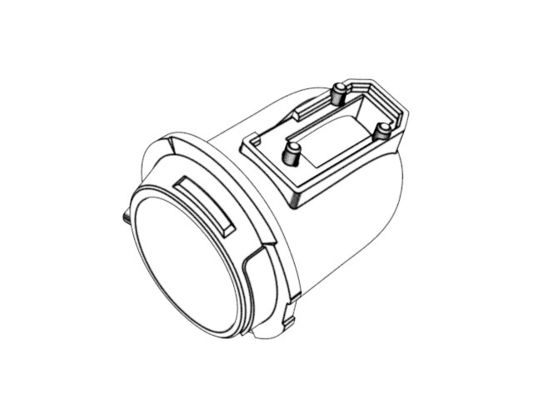

left bracket of transparent
earphone charging box (1*4)
No.24199
Injection/runner type: cold runner
| Net weight | 137kg |
| Length | 300 |
| Width | 270 |
| Height | 281 |
| IMM Tonnage |
110T |
Considering the cost and molding quality, the mold is made of high purity steel with mature
manufacturing technology, so that it has higher hardness and anti-wearing performance, and the
molded part has clear details w/o burrs.
| Surface finish | |
| A surface polished to SPI-A1 | Inner surface EDM with VDI21# (Makino) |
| Steel of cavity and core | |
| Harden (1*4/S136) | |

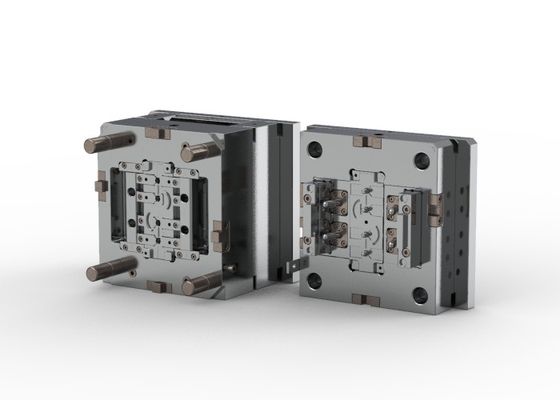

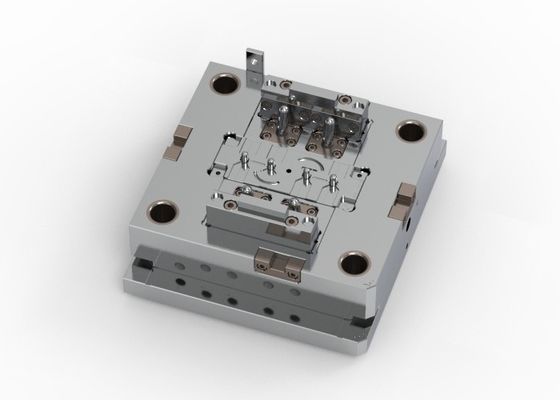

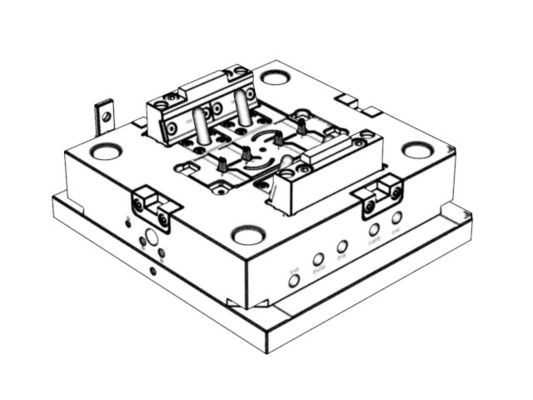

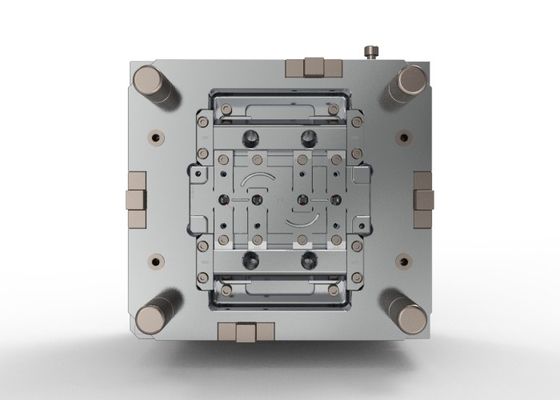

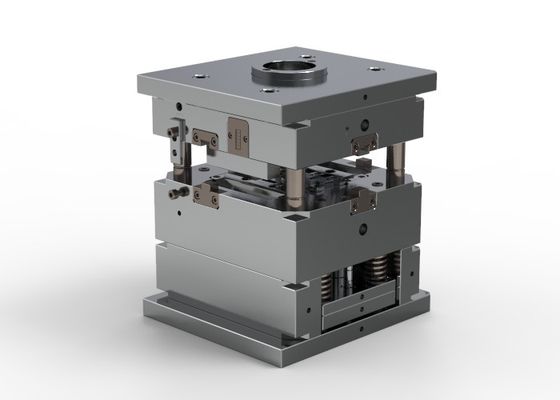

This is a two-plates mold with 2 slides, LKM standard, and the mold part has finer and
smoother surface.

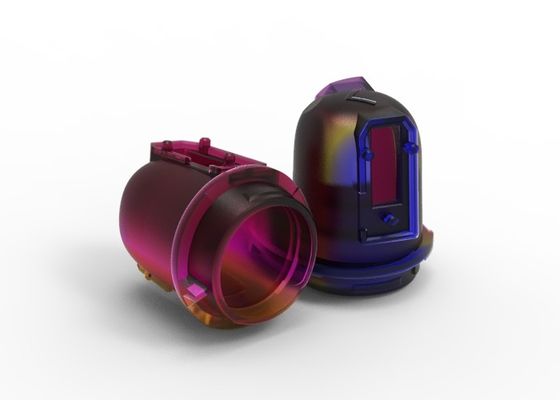

Part material: PC+ABS;
Part size: 12.10 X 11.86 X 14.09mm;
Part weight: 0.6g
Display diagram
