Transparent Earphone Left Front Shell (1*4) / Hot Runner / Three Plate No.24205
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Cavity Angled Slide | Size | 550 X 600 X 551 |
|---|---|---|---|
| IMM Tonnage | 100T | Mold Weight | 856KG |
| Gate | Cashew Gate (the Hot Runner Turns To Cold Runner) | Injection/runner Type | Hot Runner |
| Open Hot Runner | 2 | Cavity | Harden (1*4/S136) |
| Core | Harden (1*4/S136) | Part Net Weight | 0.45g |
| Mold | Injection Molding | Near Me | No |
| Sales Manager | Dujw@chitwing.com | ||
| High Light | 500k Shots Precision Injection Molding,LKM Precision Injection Molding,Injection Molding Hot Runner |
||
Product Description

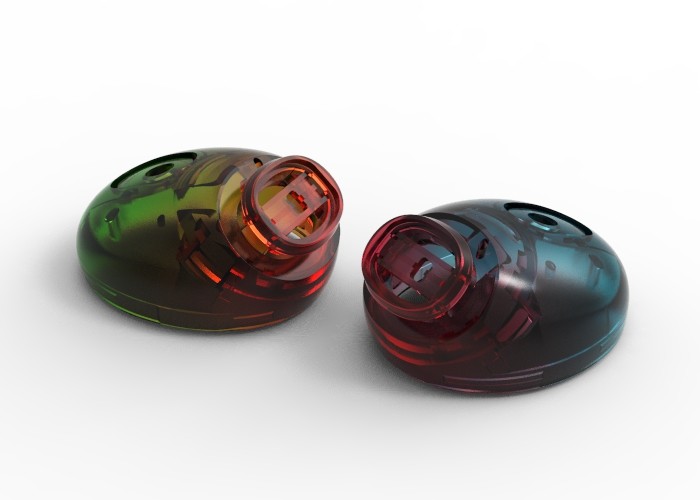

Transparent Left
Front Housing of Earphone(1*4)
No.24205
| LKM standard | Mold | ||
| Size | Net weight | ||
|
Custom mold base P/N: DAI4560 |
Length | 550 | 856kg |
| Width | 600 | ||
| Height |
551 |
||

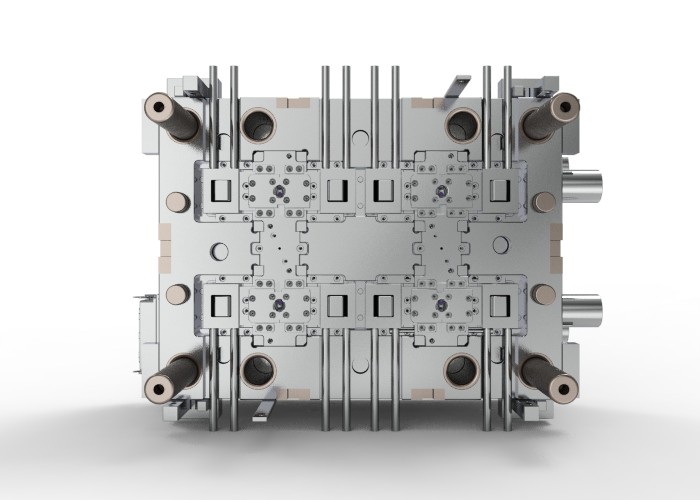

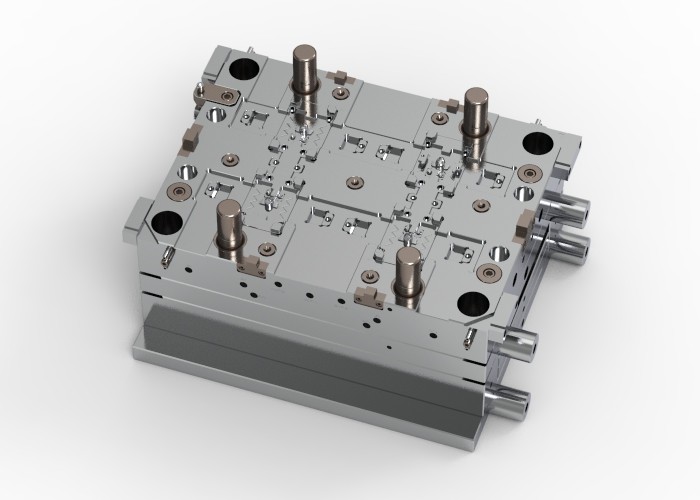

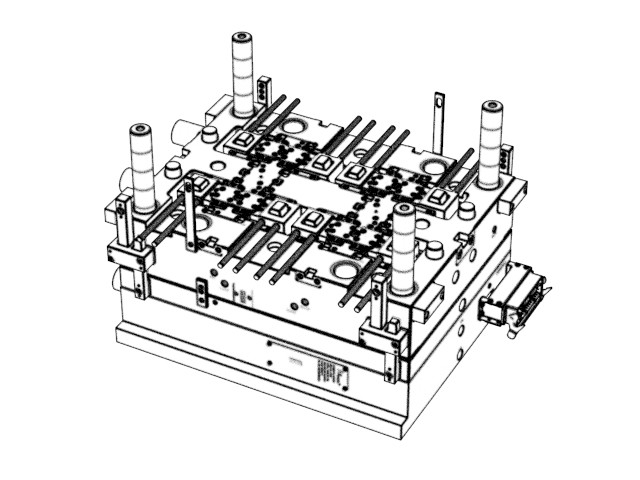

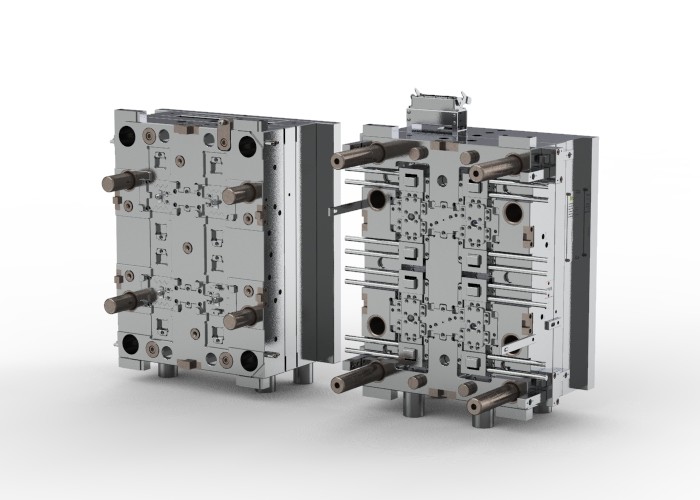

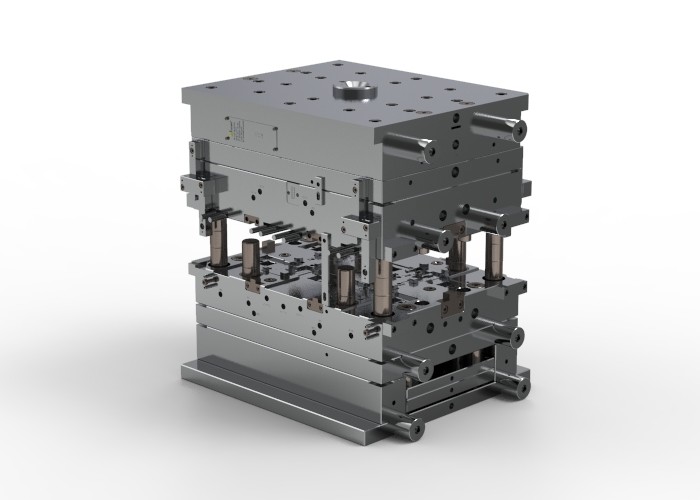

The mold with cashew gate (hot runner turns to cold runner) and three-plates structure. The part
material is PC+ABS. The mold surface polished to SPI-A1, harden the cavity and the core to
ensure smooth inner surface is smooth, stable molding pressure, anti-corrosion, anti-fatigue
resistance and anti-wearing performance.
Precise molding, smooth part surface without burrs
☆ IMM tonnage: 100T

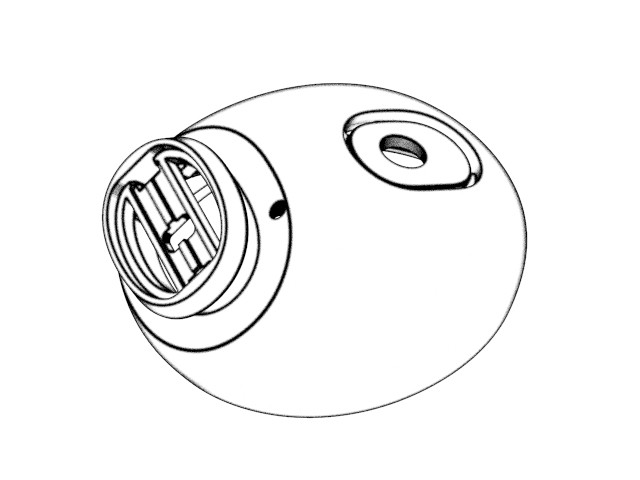

☆ Part size: 19.06 X 15.70 X 9.76mm
☆ Part net weight: 0.45g
☆ Features: cavity angled slide
Display diagram
