OEM / ODM ： Precision Injection Molding & Headset Charging Box Button (1*8) No.24202 & 24203
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Earphone Charging Case |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 230 X 390 X 276 | IMM Tonnage | 2 Shots 120T |
|---|---|---|---|
| Mold Weight | 191KG | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Life | ≥500000 Shots | Runner | Cold Runner |
| Custom Mold Base P/N | FCI2330.408080 | Part Material | PC+ABS/TPU |
| Type | Three-plates Mold | ||
| High Light | 500k Shots Precision Injection Moulding,LKM Precision Injection Moulding,TPU Cold Runner Injection Moulding |
||
Product Description

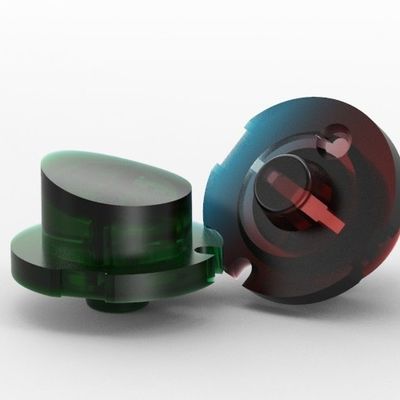

Transparent earphone
charging box button (1*8)
No.24202 & 24203
| Brand: Chitwing | ||
|
Origin: Guangdong, China |
Injection/Runner Type: Cold runner
Standard: LKM
| Size | Net weight | ||
| Length | Width | Height | |
| 230 | 390 | 276 | 191kg |
A surface polished to SPI-A1, the inner surface EDM with VDI21# (Makino); harden the cavity
and core; side gate, the tool life up to 500k shots, shorter cycle time, uniform mold surface,
stable molding, no leakage, and 2k mold.
| Type | Three-plates mold | ||
| Part material | PC+ABS/TPU | ||
| Part size | ① 1st shot:10.4x12.8x4.43mm ② 2nd shot:Φ5x4mm | ||
| Part weight | ① 1st shot:0.2g ② 2nd shot:0.175g | ||
| IMM Tonnage | 120T | ||

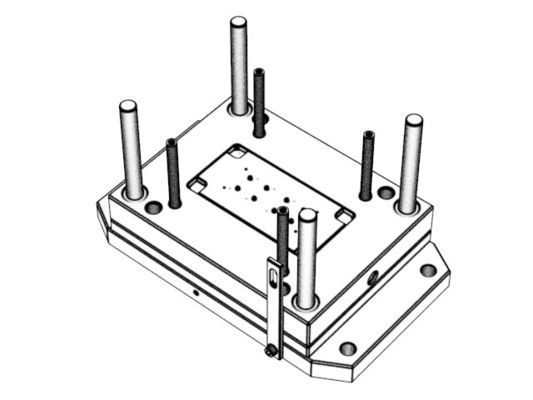

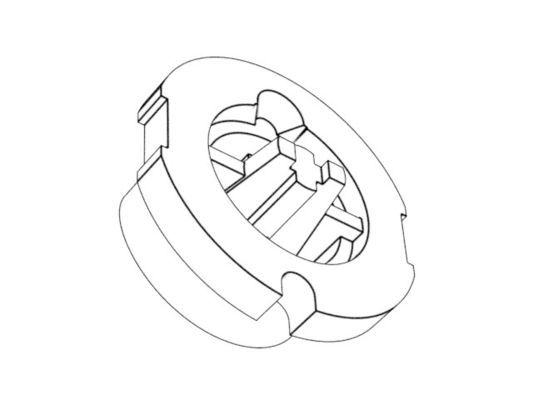

Display diagram
