OEM / ODM ： Custom Electronic Enclosures & Top cover (1*2) No.23392
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350 X 400 X 341 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 300KG | Design Software | (3D)UG 4.0/ (2D）CAD |
| Mould Base | LKM | Runner | Cold Runner |
| Part Material | PC+ABS | Part Weight | 20.5g |
| High Light | 300KG Single Cavity Injection Mold,ABS Single Cavity Injection Mold,PC ABS two plate injection mould |
||
Product Description

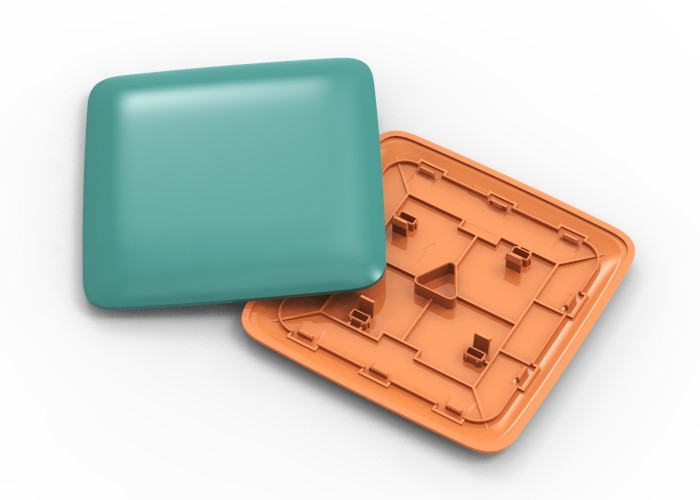

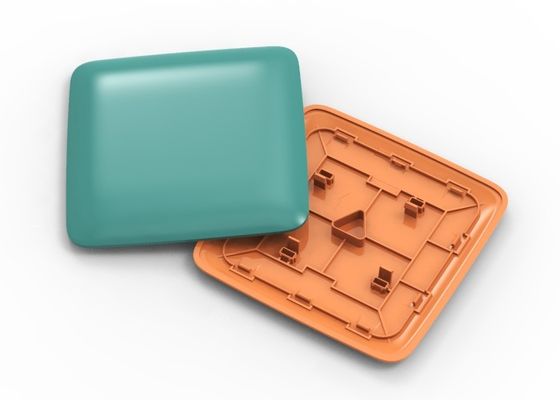

Top cover (1*2)
No.23392
| Standard mold base P/N: CI3040.6010090 | Standard | Type | Net weight | ||
| Size | Length | 350 | LKM | Two-plates mold | 300kg |
| Width | 400 | ||||
| Height | 341 | ||||
☆ IMM tonnage: 180T
| Gate | Lifter | Injection/runner type |
| Sub gate | 14 for each cavity | Cold runner |

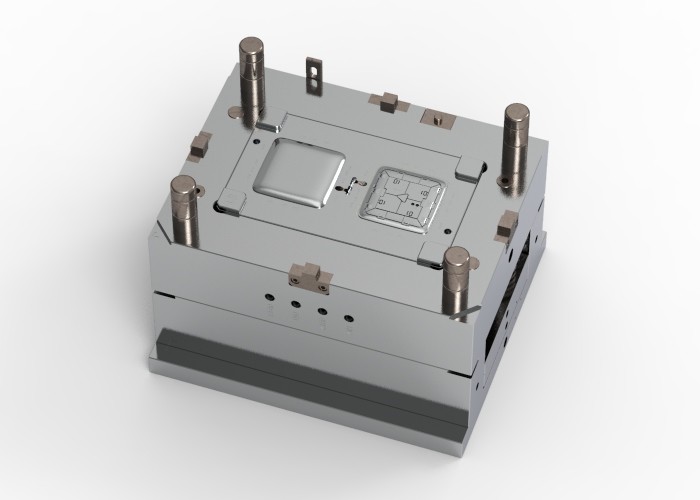

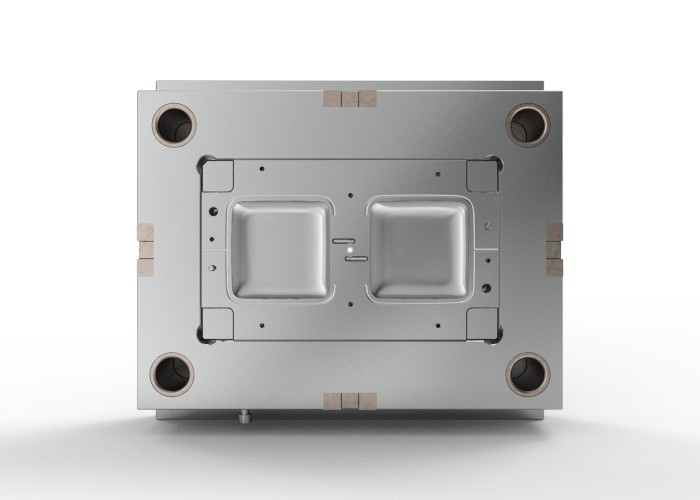

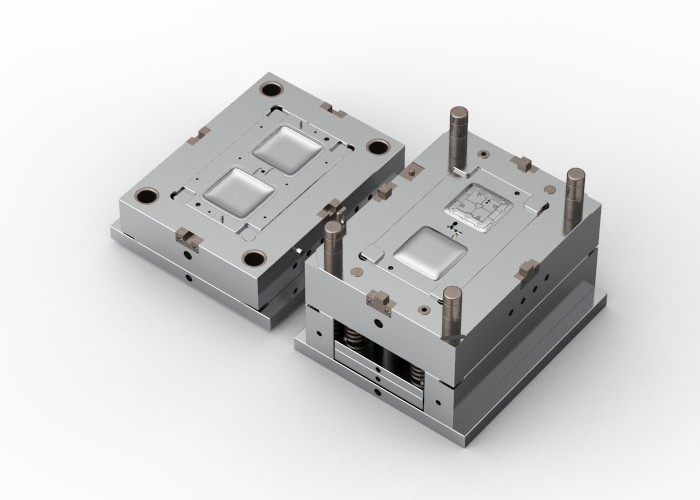

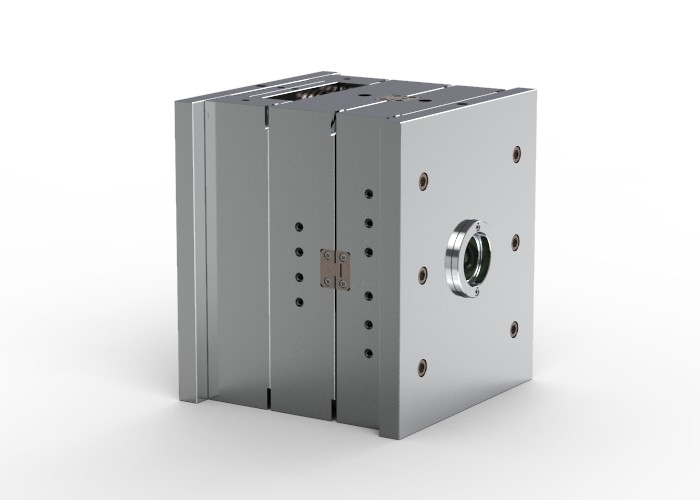

| The mold was developed (designed and manufactured) by Chitwing. A surface polished to 800# sandpaper and textured. The large A surface EDM with VDI27# (Makino) and other large surfaces EDM with VDI30# (Makino). The mold surface is smooth without cracking. Harden the cavity and core with 1*2/S136 to improve the hardness and anti-wearing performance; with reliable seal, no leakage, uniform wall thickness, tolerance > 0.15 mm, short cycle time; the molded part has fine surface | |||||
| Part | Part material | |
| PC+ABS | ||
| Weight | ||
| 20.5g | ||
| Size | ||
| 92 X 9.2X 92mm | ||

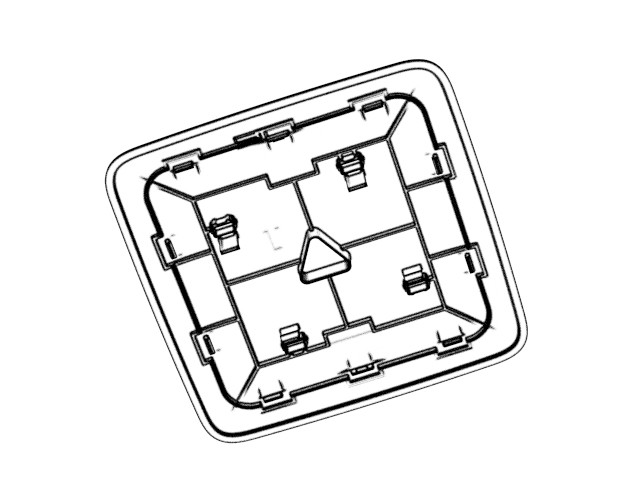

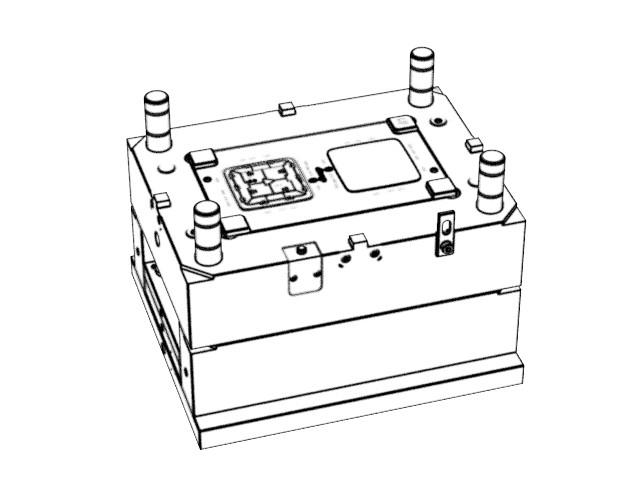

Display diagram
