OEM/ODM: Custom consumer electronics molds / Transparent RGB camera bracket (1*1) No.25173
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 330.200 | IMM Tonnage | 130T |
|---|---|---|---|
| Mold Weight | 179.7kg | Tool Life | 500k Shots |
| Steel Of Cavity And Core | Harden With S136 | Part Material | PC+20%GF |
| Part Net Weight | 7g | Part Size | 3123.3*33.5*26.66mm |
| Gate | Point Gate | Type | Three-plates Mold |
| Slide | 2 | ||
| High Light | Camera Bracket Single Cavity Injection Mold,RGB Single Cavity Injection Mold,130T Aluminum Die Casting Mould |
||
Product Description

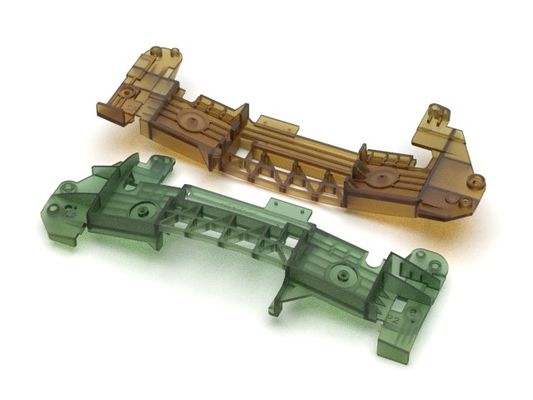

Transparent RGB camera bracket (1*1)
No.25173

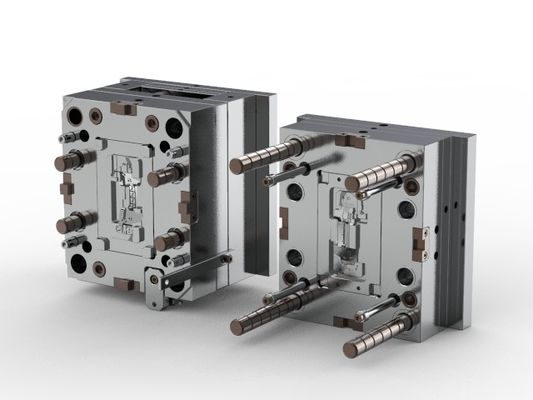

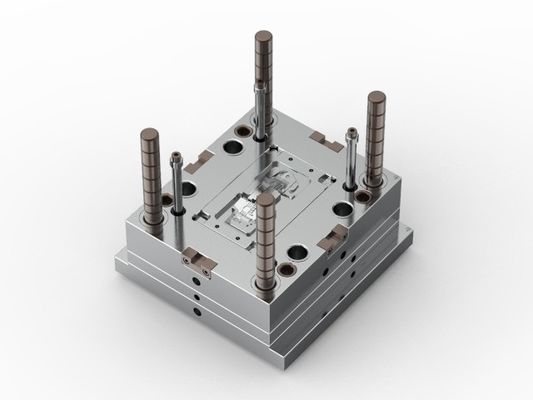

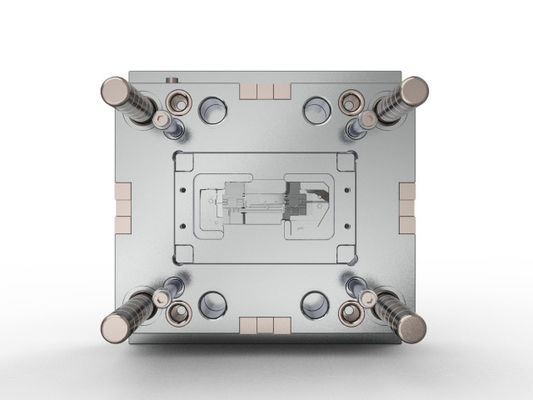

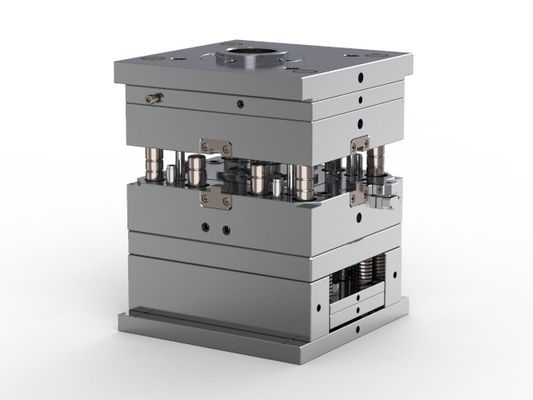

| The mold adopts LKM standard; harden the mold with S136 to have good anti-corrosion and anti-wearing performance, good polishability, machinability and size stability; the three-plates mold with pin point fate is self-degating with minimized gate marks, with aesthetic part appearance | |||||
| Mold details | ||||
| L | W | H | Net weight | Slide |
| 300mm | 300mm | 330.2mm | 179.7kg | 2 |
| Surface polished to SPI B-2, with high glossiness and dark gloss | ||||
| Part details | |||
| L | W | H | Material |
| 123.3mm | 33.5mm | 26.66mm | PC+20%GF |
Fit 130T machine

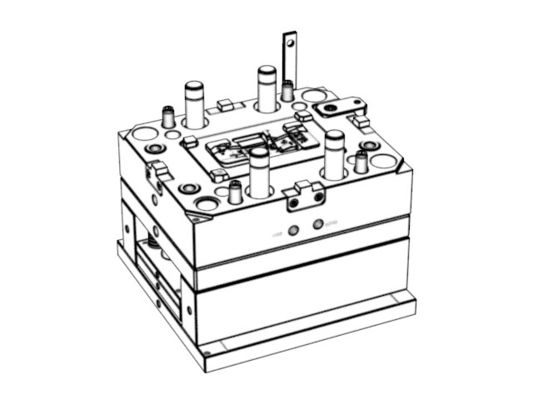

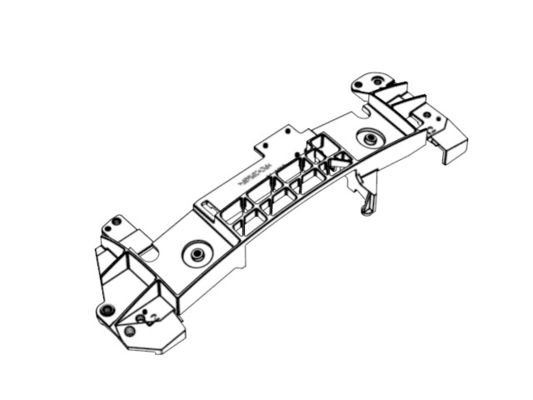

Display diagram
