OEM/ODM: Custom mold / Transparent top cover structure (1*1) No.25174
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mould Size | 350*450*476mm | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 450.95kg | Cavity | Harden With S136 |
| Core | Harden With S136 | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Base | LKM | Runner System | Cold Runner |
| Mould Life | ≥500000 Shots | Structure | Fixed Cavity + Movable Side + Runner Stripper Plate + Runner Plate |
| High Light | Cold Runner Single Cavity Injection Mold,180T Single Cavity Injection Mold,500k Shots Single Cavity Injection Mold |
||
Product Description

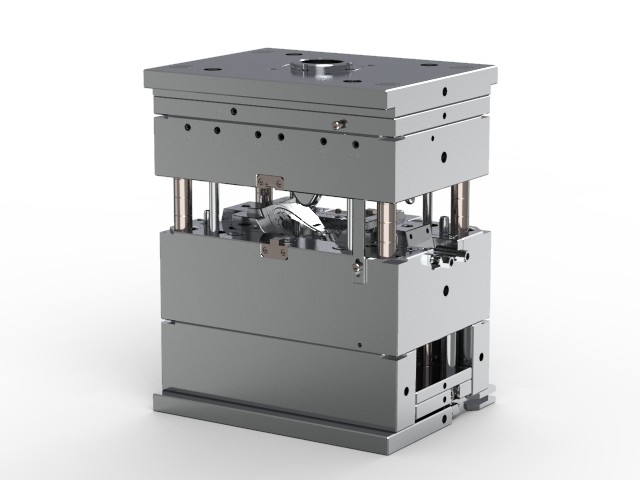

Transparent top cover structure (1*1)
No.25174

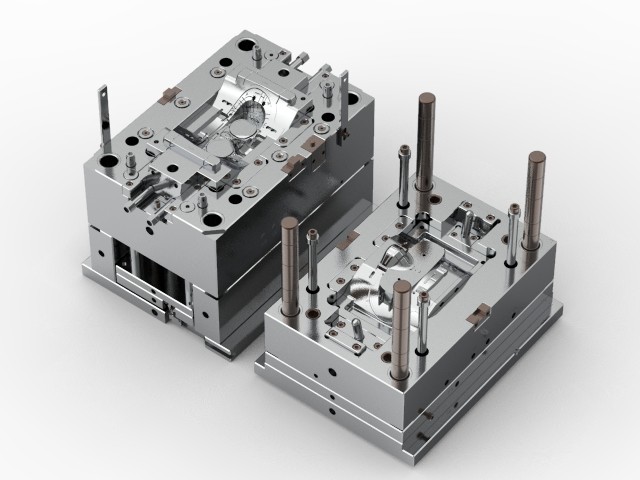

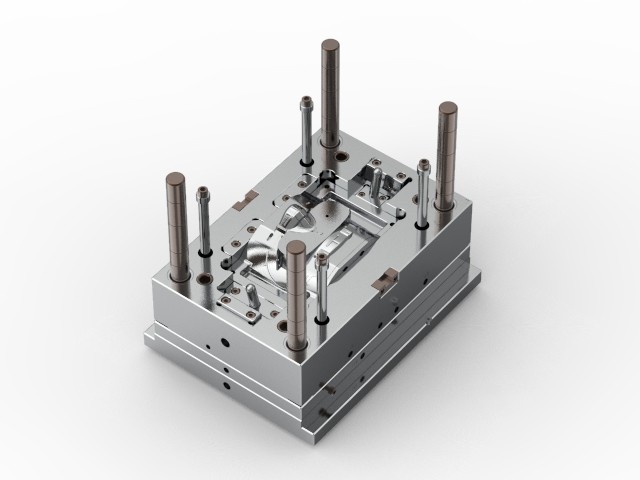

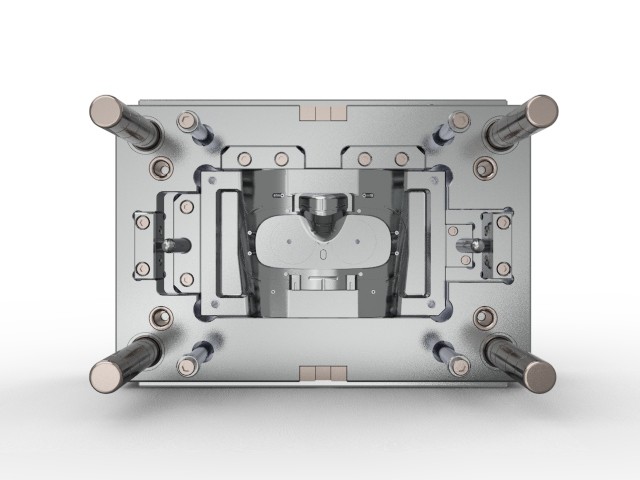

① Three-plates mold, self-degating, meet automated production requirements
② Pin point gate, with minimized gate marks, require no processing
③ Harden the cavity and core with S136 to improve the anti-wearing and anti-corrosion
performance
④ Surface with YS20020 etch, which improves part texture and strength; cavity surface is
smooth to keep good part appearance and ensure easy demolding
⑤ Mold good fitted, with stable cavity pressure, good pressure, temperature and corrosion
resistance; tool life is up to 500k shots
☆ Mold size: 350*450*476mm
☆ Mold net weight: 450.95 kg
☆ Standard: LKM
| The mold with cold runner, low development cost, meet customers' cost-effective requirements; with small amount of cold slug recyclable | |||||

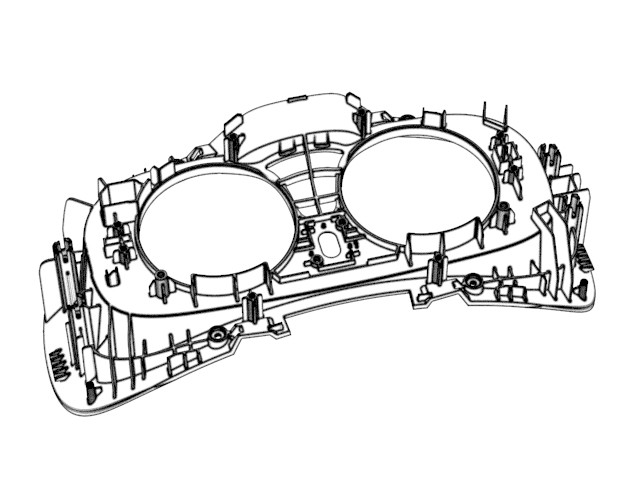

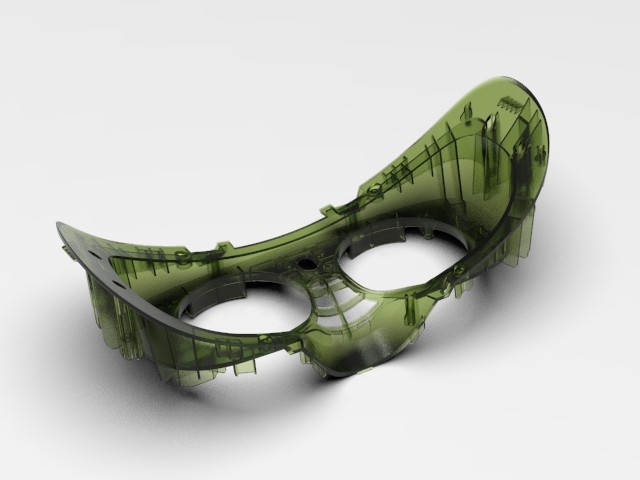

☆ Part size: 179.7*78.02*72.35mm
☆ Part net weight: 37.5g
☆ Part material: PC+ABS
Fit 180T machine

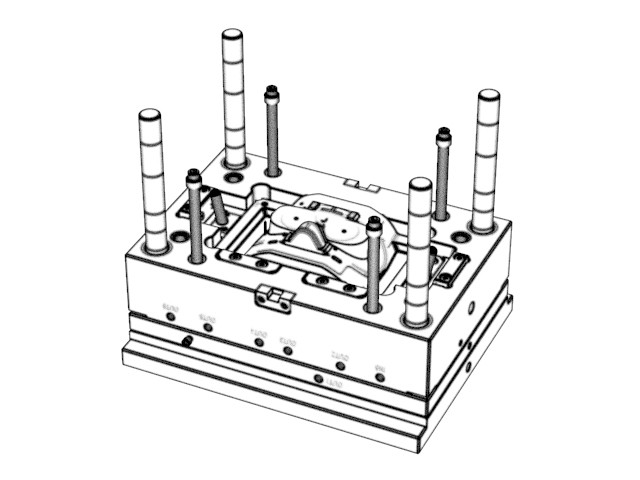

Display diagram
