OEM/ODM: Custom consumer electronics molds / RGB camera bracket (1*1) No.25173
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 330.200（mm） | IMM Tonnage | 130(T) |
|---|---|---|---|
| Mold Weight | 179.7(kg) | Design Software | (3D)UG 4.0/ (2D）CAD |
| Mould Base | LKM | Runner | Cold Runner |
| Slide | 2 | Part Material | PC+20%GF |
| Steel Of Cavity And Core | Harden With S136 | Net Weight | 7g |
| High Light | RGB Die Casting Molding,LKM Die Casting Molding,Cold Runner Die Casting Molds |
||
Product Description
RGB camera bracket (1*1)
No.25173
|
Mold standard) |
① Size: 300*300*330.2mm | |||
| ② Net weight: 179.7kg | ||||
| ③ Steel of cavity and core: Harden with S136 | ||||
|
Mold surface polished to SPI B-2, Ra 0.1, eliminating all machining marks, with dark gloss and slight 2000# sanding marks |
||||
| Part | ① Size: 3123.3*33.5*26.66mm | |||
| ② Net weight: 7g | ||||
| ③ Material: PC+20%GF | ||||
| Type | Gate | Injection/runner type | IMM tonnage | Tool life | |
| Three-plates mold | Point gate | Cold runner | 130T | 500k shots | |
| Design | 3D:UG 4.0 |
| 2D:CAD |

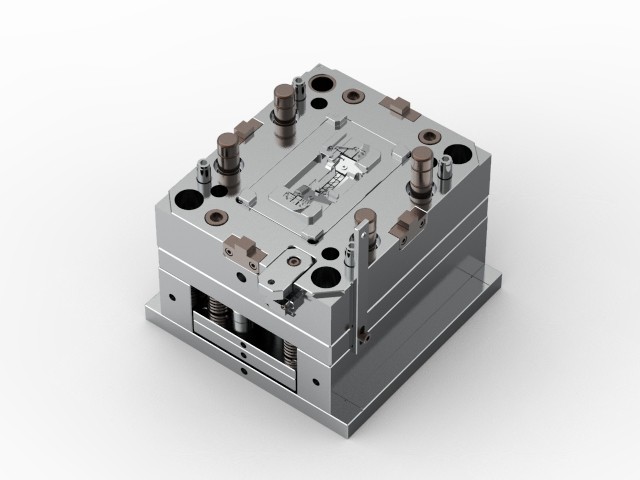

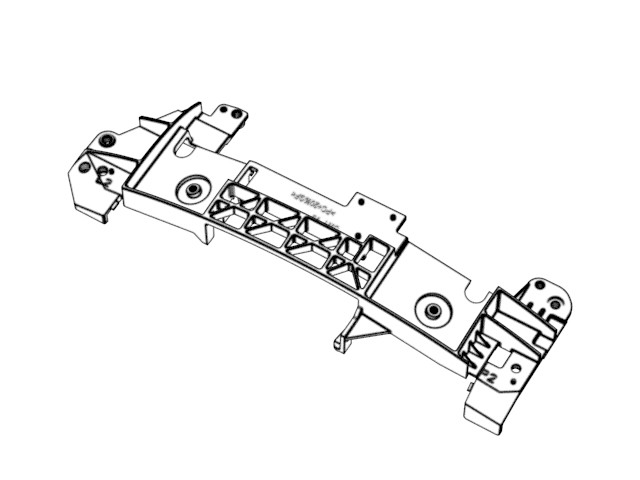

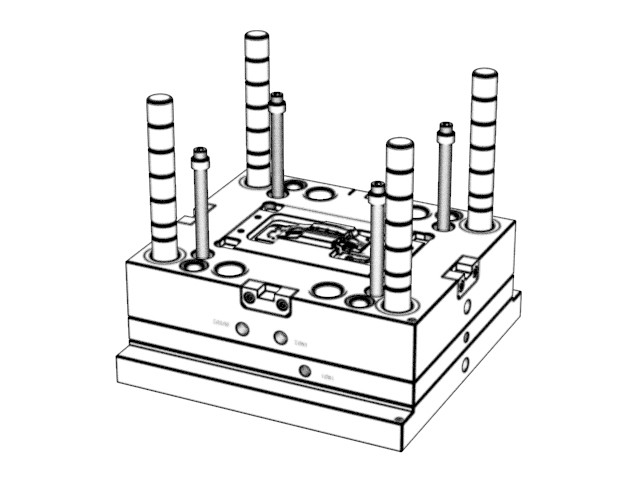

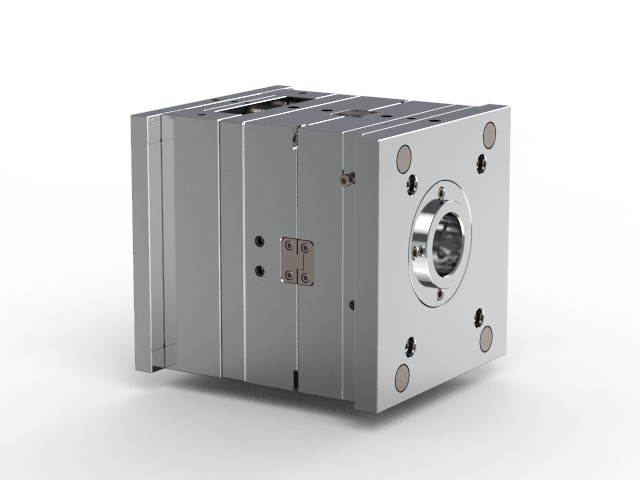

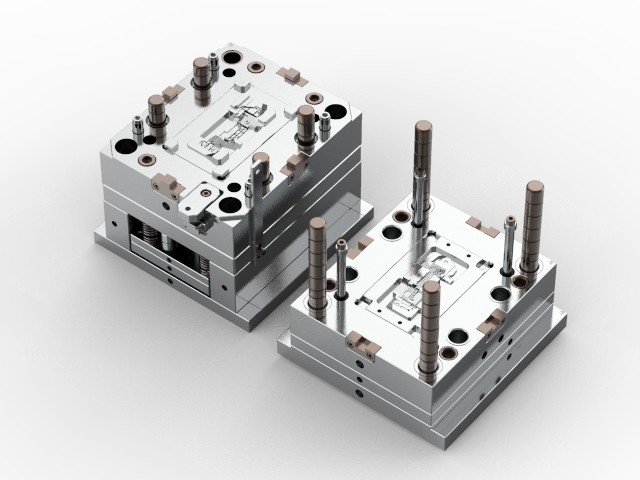

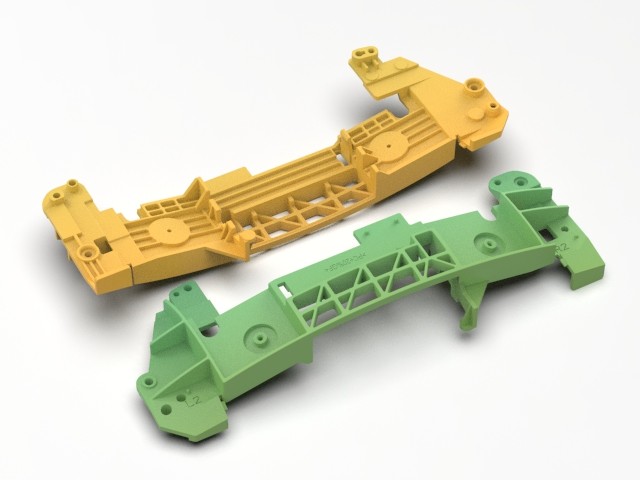

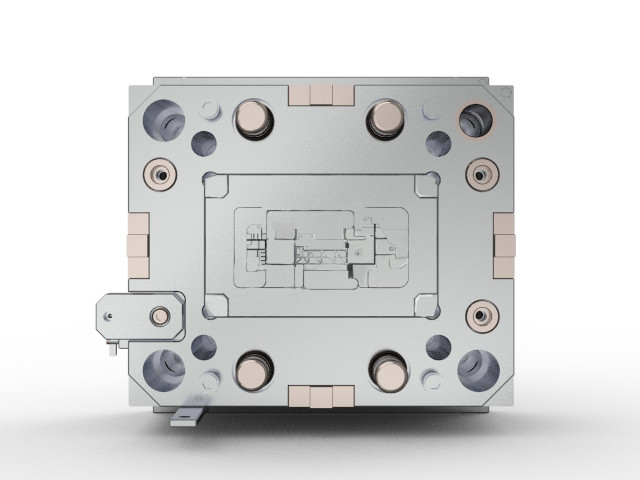

Display diagram
