Product Details
Size 350 X 400 X 341mm IMM Tonnage 180(T)
Mold Weight 300(KG) Standard LKM
Type Two-plates Mold Gate Sub Gate
Lifter 14 For Each Cavity Injection/runner Type Cold Runner
Mold Type Custom Mold
Highlight

Two Plate Single Cavity Injection Mold

,

500k Shots Single Cavity Injection Mold

,

Cold Runner metal injection molding

Leave a Message
Product Description

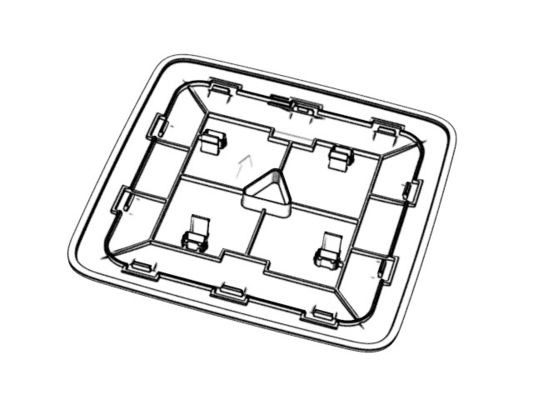

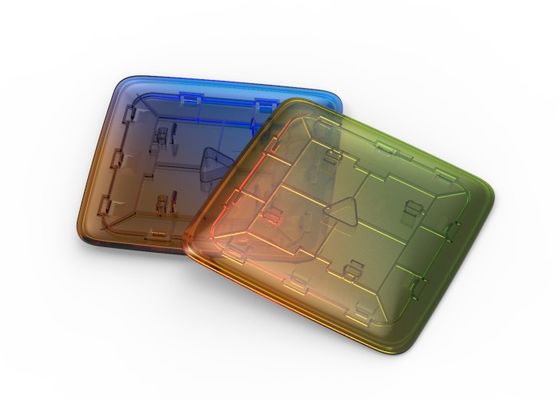

Transparent top cover (1*2)

No.23392



☆ Brand: Chitwing

☆ Standard mold base P/N: CI3040.6010090

☆ Origin: Guangdong, China

☆ Standard: LKM

☆ Type: Two-plates mold

☆ Injection/Runner Type: Cold runner



  Size   Length   350
  Width   400
  Height   341
  Net weight   300kg
  IMM Tonnage   180T
  Part material   PC+ABS
  Size   Length   92
  Width   9.2
  Height   92
  Net weight   20.5g



  Gate
  Sub gate
  Lifter
  14 for each cavity
  Tool life
  500k shots



OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 0

OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 1



Surface finish

A surface polished to 800#

sandpaper and textured

A large surface EDM with

VDI27# (Makino)

Other large surfaces EDM

with VDI30# (Makino)



OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 2



The core, sub-inserts, movable inserts, ejector pin and sprue bush are made of steel > 40HRC. Harden the mold base, cavity and core to have high hardness, anti-wearing and anti-fatigue performance; with good seal, no leakage; the molded part is smooth w/o flash.

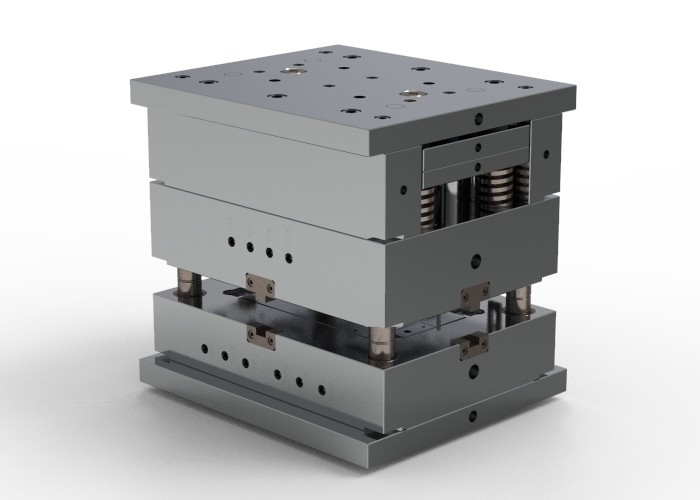

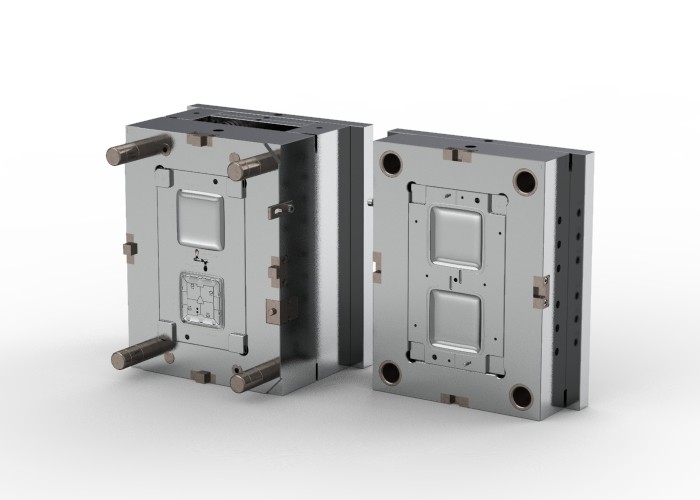

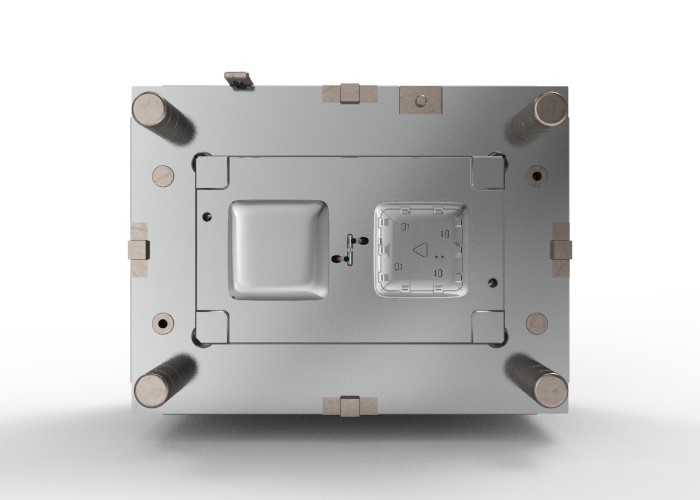

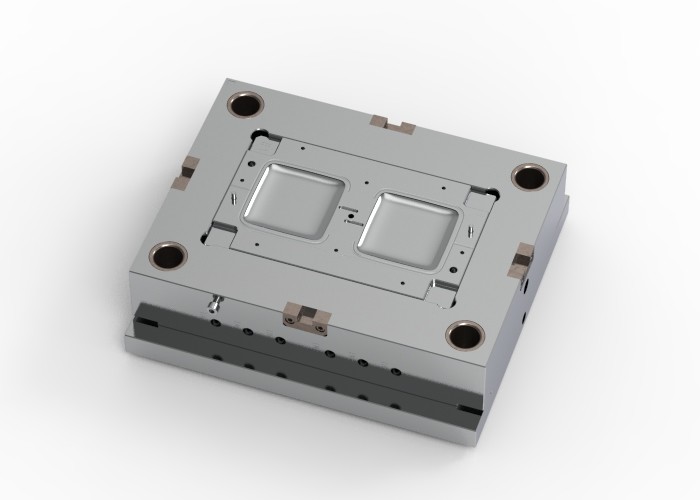

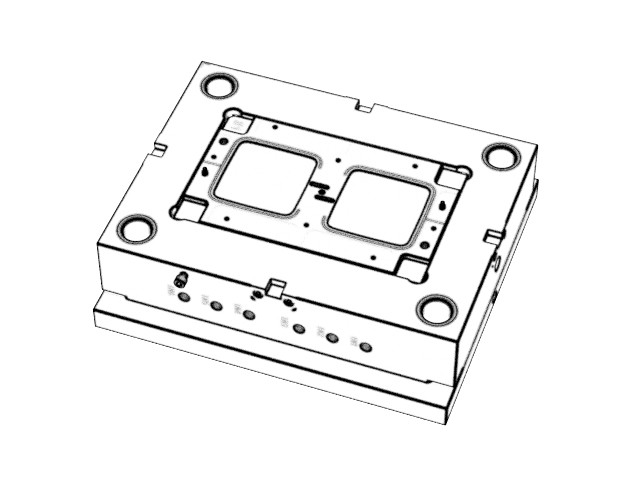

Display diagram



OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 3OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 4OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 5OEM / ODM : Custom Electronic Enclosures  & Transparent top cover (1*2) No.23392 6
