OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1)No.23394
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 600 X 600 X 776mm | Cavity | Single |
|---|---|---|---|
| IMM Tonnage | 450(T) | Mold Weight | 2062(KG) |
| Gate | Large Pin Point Gate | Design Software | 3D:UG 4.0, 2D:CAD |
| Mould Base | LKM | Runner | Cold Runner |
| Mould Life | ≥500000 Shots | Part Material | PC+ABS |
| Part Weight | 240g | ||
| High Light | Middle Housing Single Cavity Injection Mold,450T Single Cavity Injection Mold,LKM Two Plate Injection Mold |
||
Product Description

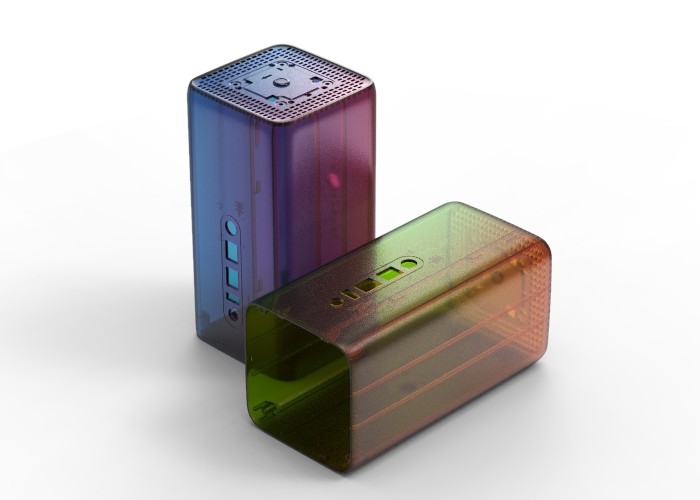

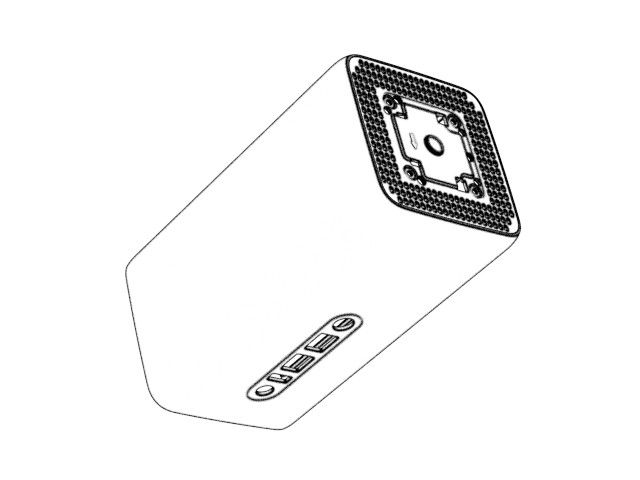

Middle housing (1*1)
No.23394-B
Description:
Our precision cold runner molds are designed and manufactured using advanced techniques to meet the demands of high precision and efficiency. With precise runner design and optimized cooling systems, our molds achieve uniform temperature distribution and rapid cooling, effectively reducing product defects and production cycles.
Constructed with high-strength materials and precision machining processes, our molds ensure durability and stability. Our experienced engineering team provides customized designs based on customer requirements, along with comprehensive technical support and solutions.
Whether in automotive manufacturing, electronic devices, or medical equipment, our precision cold runner molds deliver exceptional performance and reliability, enabling customers to achieve high-quality production and cost-effectiveness.
Application:
tableware
medical equipment
steering wheel
phone case
TV remote control
auto parts
electronic product
Features:
| Brand | Chitwing |
| Mold base | P/N: CI6060 |
| Runner | Cold runner |
| Gate | Large pin point gate |
| Net weight | 2062kg |
| Size | Length:600 x Width:600 x Height:776 |
| Type | Two-plates mold |
| Standard | LKM |
| IMM tonnage | 450T |
| Material | PC+ABS |
| Part size | 103x103x205mm |
| Part weight | 240g |
The mold is developed (designed and manufactured) by Chitwing with advanced processing technology. A surface polished to 800# sandpaper and textured. The large A surface EDM with VDI27# (Makino) and other large surfaces EDM with VDI30# (Makino). Harden the cavity and core with 1*1/S136 to have hardness ≥ 50HRC; the mold surface is free of defects. The mold features smooth ejection, service life up to 500k shots, and excellent cost performance
Advantage:
We are a publicly traded company with a strong focus on delivering exceptional quality and reliability. Equipped with state-of-the-art production equipment and cutting-edge technology, we are capable of meeting the diverse production requirements of complex molds. Our commitment to excellence drives us to constantly integrate the latest production equipment and technology, refine our production processes, and enhance both our production efficiency and manufacturing capabilities.
To ensure the utmost quality and reliability, we place great emphasis on the selection of high-quality raw materials. By meticulously choosing premium-grade raw materials, we guarantee the superior quality and dependability of each and every product we manufacture.

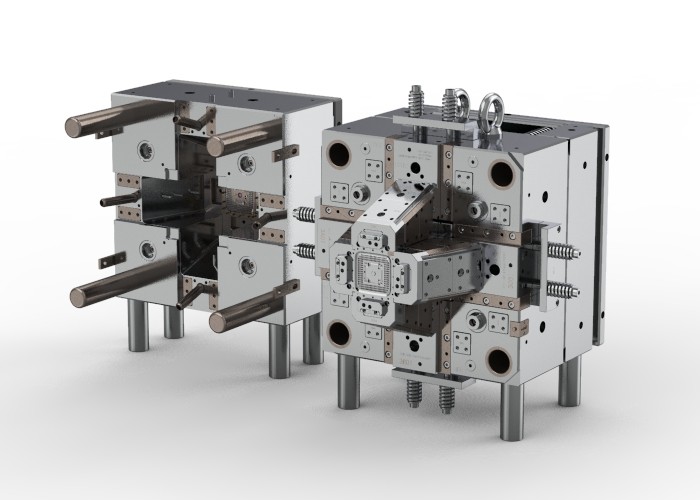

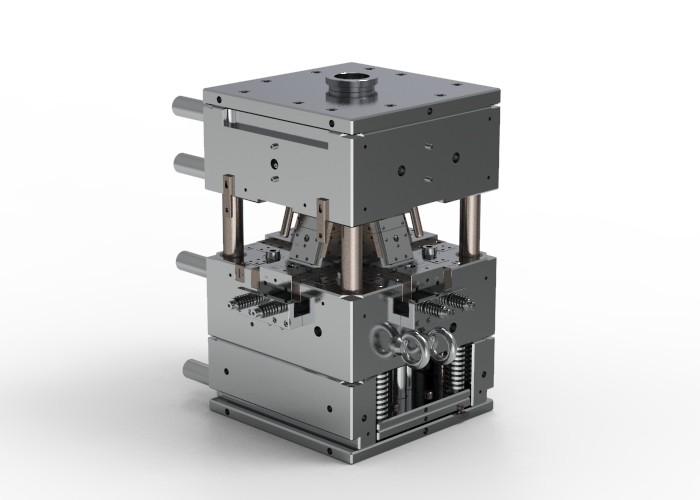

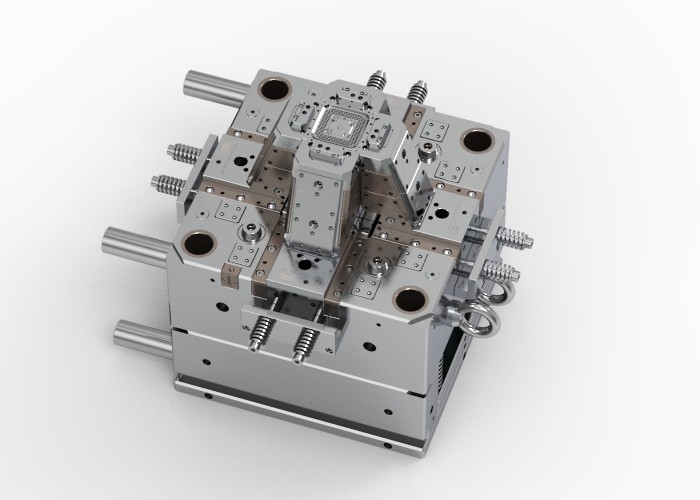

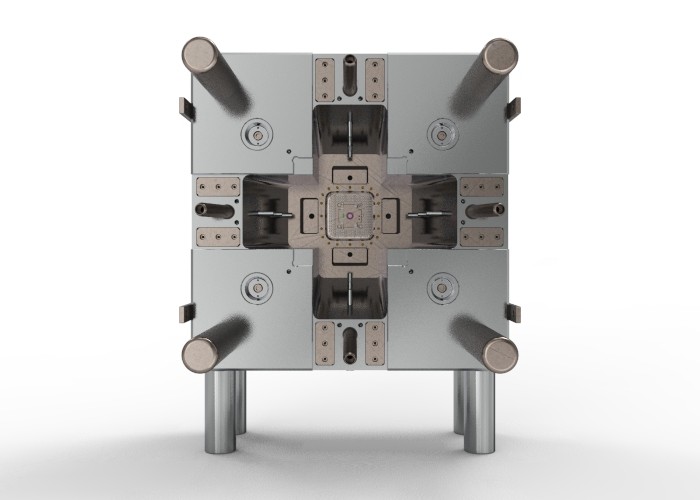

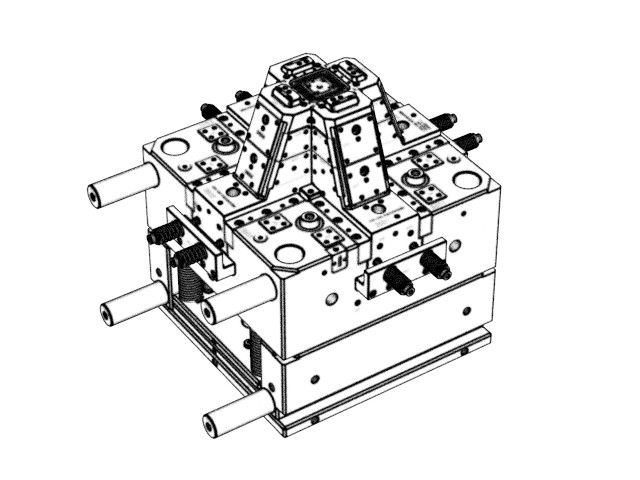

Display diagram
