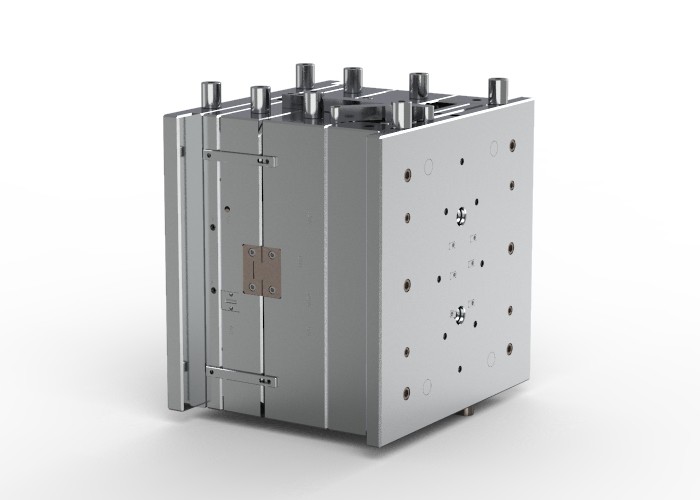

OEM / ODM ： Single Cavity Injection Mold & LH Bracket (1*1) No.23399
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 X Slides | Size | 600 X 600 X 506 |
|---|---|---|---|
| IMM Tonnage | 180T | Mold Weight | 1108KG |
| Injection/runner Type | Cold Runner | Type | Three-plates Mold |
| Standard Mold Base P/N | DCI5060.100150120 | Part Material | PC+ABS |
| Part Weight | 100g | ||
| High Light | 500k Shots Casting Plastic Molds,Cold Runner Casting Plastic Molds,180T Casting Plastic Molds |
||
Product Description

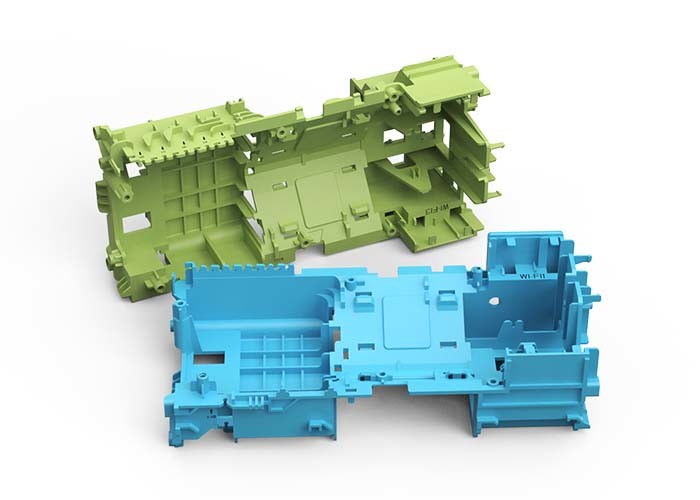

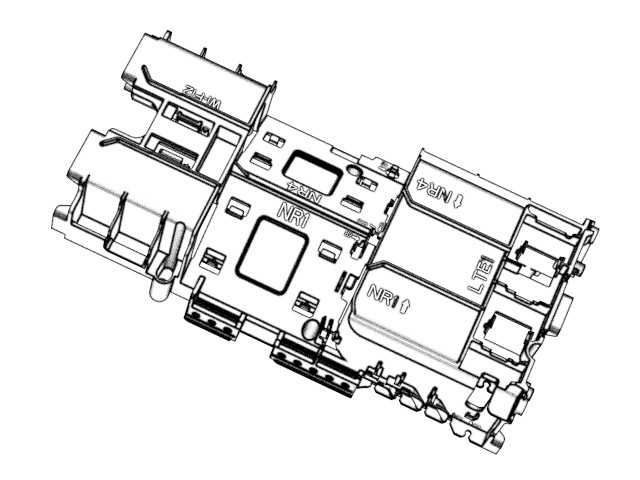

LH Bracket (1*1)
No.23399
| Chitwing | L × W | IMM Tonnage | Standard | |||
|
Standard mold base P/N DCI5060.100150120 |
600x600 | LKM | ||||
| Height | Net weight | 180T | Type | |||
| 506 | 1108kg |
Three-plates mold |
||||
| Part material | Part size | Part weight | ||
| PC+ABS | 97.57 X 201.20 X 67.77mm | 100g | ||
The mold is designed by Chitwing to meet customers' cost-effective requirements:
| ☆ Cold runner system and pin point gate; |
| ☆ Inner surface polished to 400# sand paper; |
|
☆ Hardened cavity and core (1*1/S136), with high hardness and anti-wearing performance; |
|
☆ The molded part has smooth surface and stable quality; |
| ☆ Good for PC+ABS molding; |
| ☆ The ejection plate move smoothly. |
| ☆ Short cycle time. |

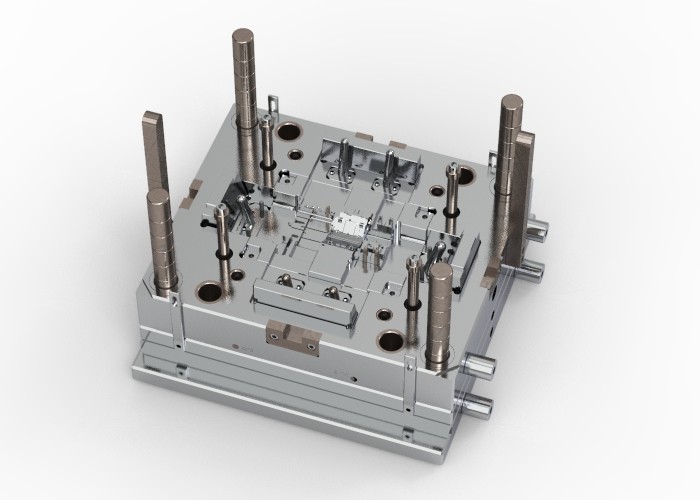

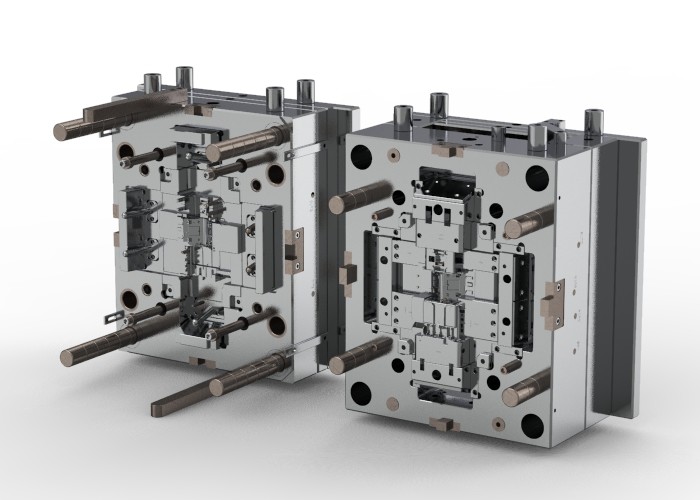

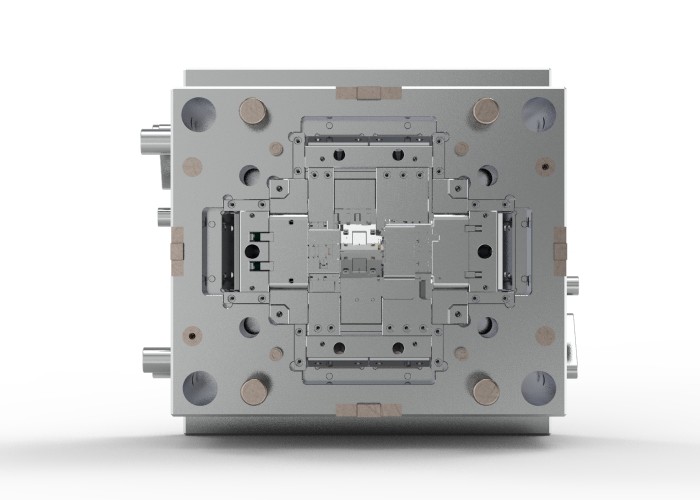

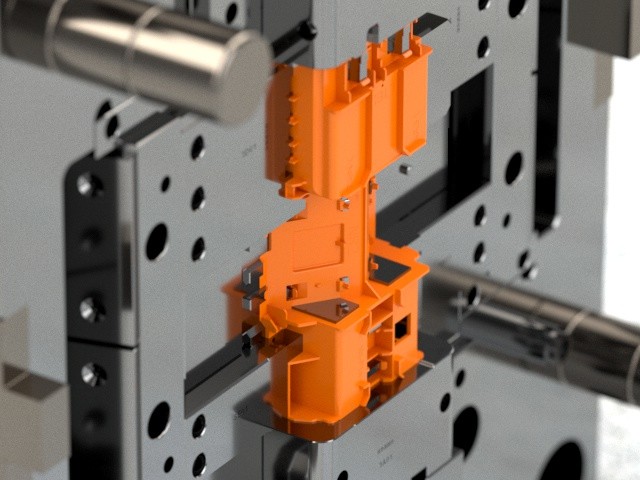

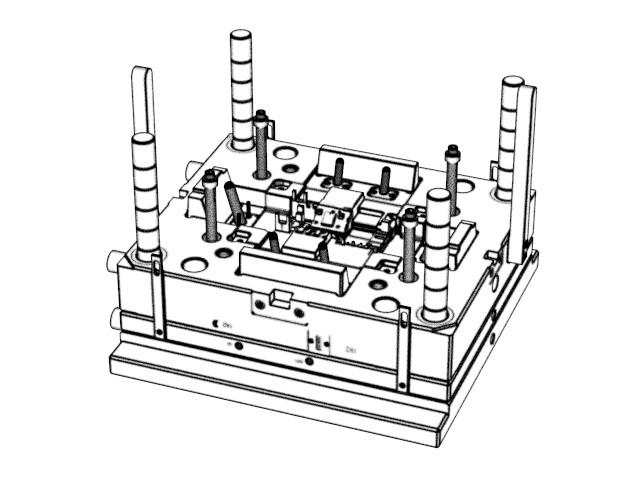

Display diagram
