OEM / ODM ： Single Cavity Injection Mold & Transparent LH Bracket (1*1) No.23399
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 X Slides | Size | 600 X 600 X 506 |
|---|---|---|---|
| Part Material | PC+ABS | IMM Tonnage | 180T |
| Mold Weight | 1108KG | Standard | LKM |
| High Light | LH Bracket Single Cavity Injection Mold,PC ABS Single Cavity Injection Mold,LKM Injection Mold Cold Runner |
||
Product Description
Transparent LH Bracket (1*1)
No.23399
|
Standard mold base P/N DCI5060.100150120 Size:600 X 600 X 506 |
|
[IMM Tonnage: 180T]
| Standard | LKM | ||
| Surface finish | Steel of cavity & core | ||
| Inner surface polished with 400# | Harden (1*1/S136) | ||
| Type | Injection/runner type | |

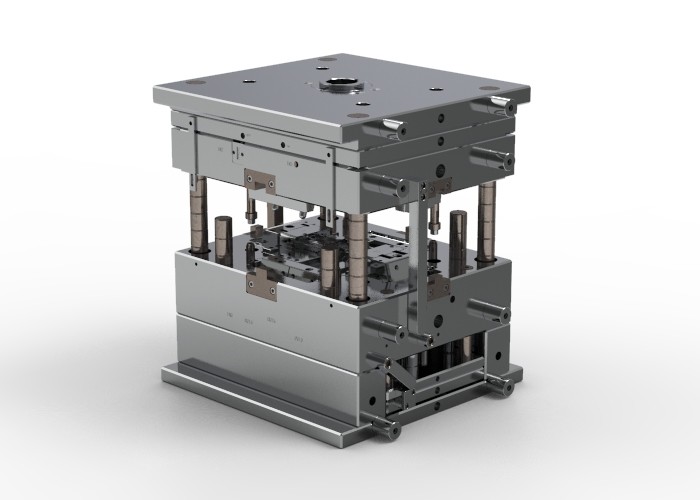

| Three-plates mold | Cold runner | |
| Part material |

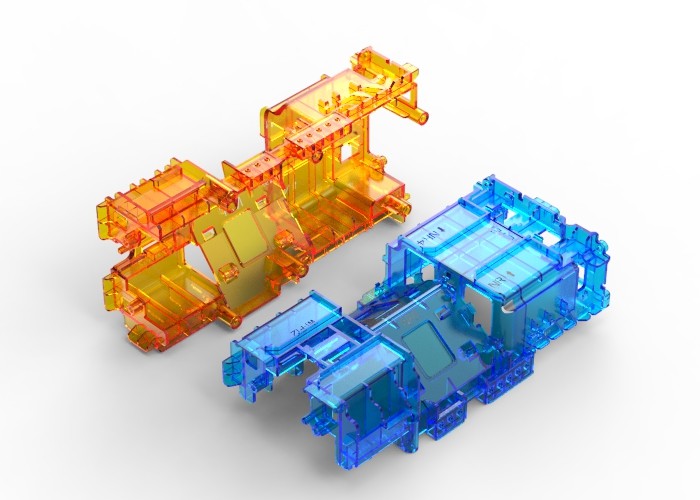

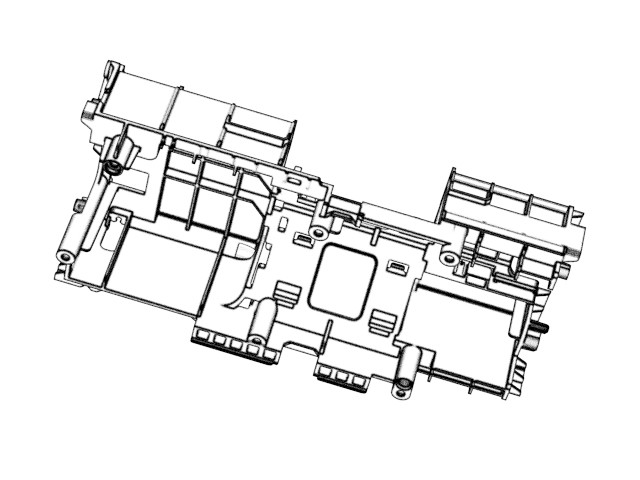

Part size 97.57 X 201.20 X 67.77mm, net weight 100g |
|||
| PC+ABS | ||||
The mold is designed with pin point gate, unobstructed cooling/heating system and reliable
seal, free of leakage. Cavity & Core are smooth w/o pits and corrosion, with uniform molded
part wall thickness and the deviation < 0.15mm; molded part w/o flow marks. Harden cavity
and core to improve the hardness and anti-wearing performance; the tool life > 500K shots,
highly cost-effective

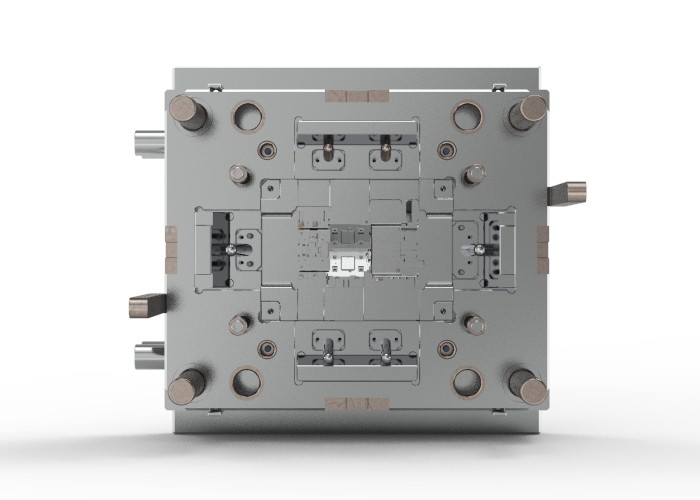

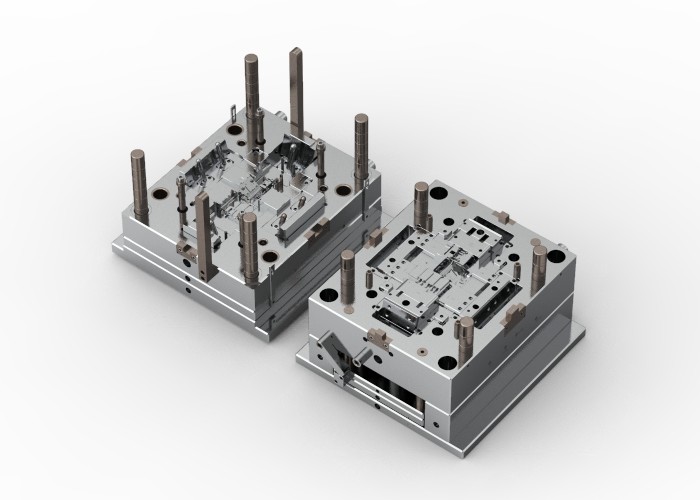

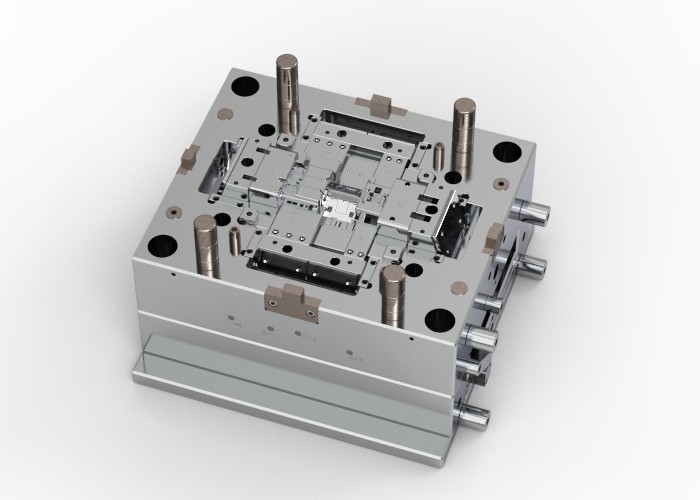

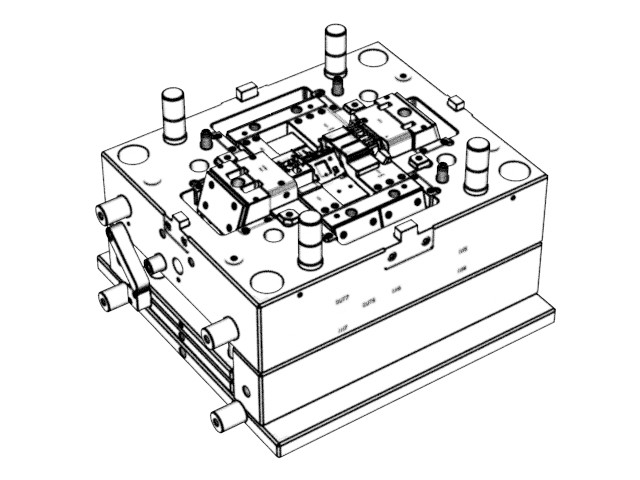

Display diagram
