OEM / ODM ： Single Cavity Injection Mold & Middle housing (1*1) No.23394
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 600 X 600 X 776mm | IMM Tonnage | 450(T) |
|---|---|---|---|
| Mold Weight | 2062(KG) | Standard Mold Base P/N | CI6060 |
| Gate | Large Pin Point Gate | Part Weight | 240g |
| Material | PC+ABS | Type | Two-plates Mold |
| High Light | Middle Housing Aluminium Injection Moulding,LKM Aluminium Injection Moulding,500k Shots Aluminium Injection Moulding |
||
Product Description

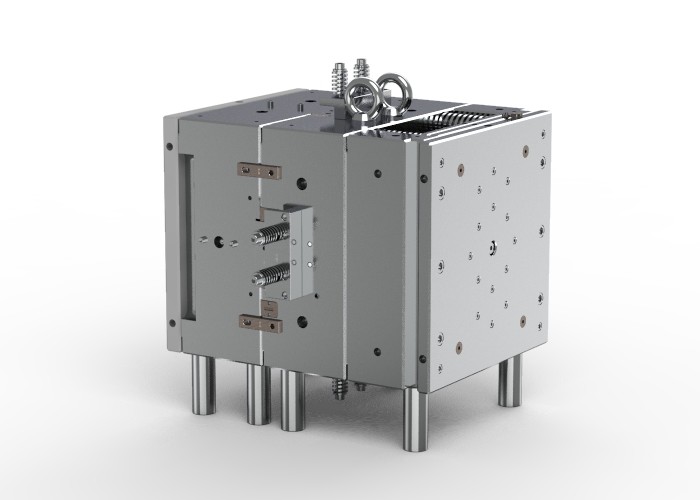

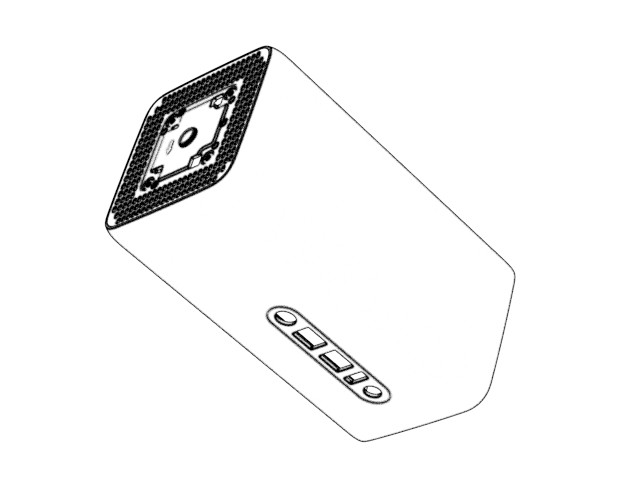

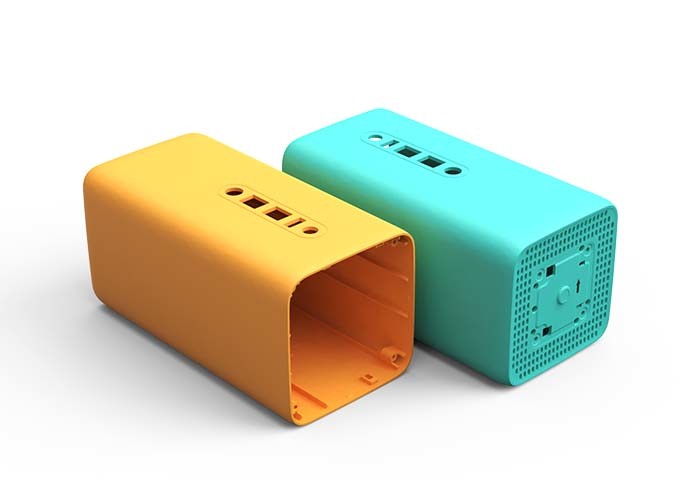

Middle housing (1*1)
No.23394
| Chitwing | Mold base | ☆ Net weight: 2062 kg ☆ IMM tonnage: 450T |
||
| Standard | ||||
| Length | Width | Height | ||
| 600 | 600 | 776 | ||
|
|
|
|
||||||||||||||||

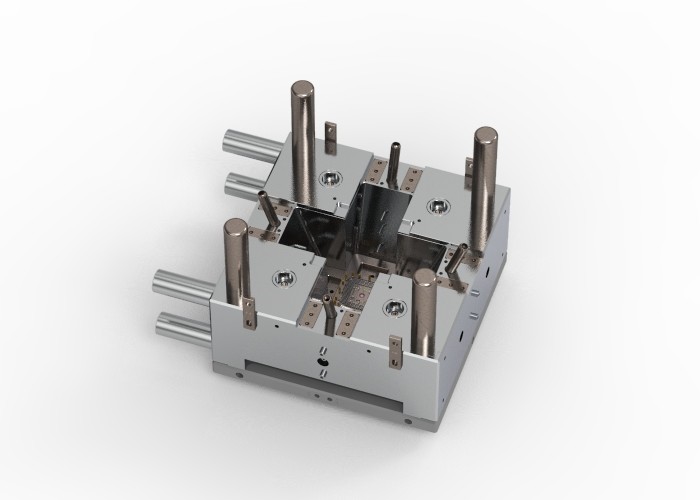

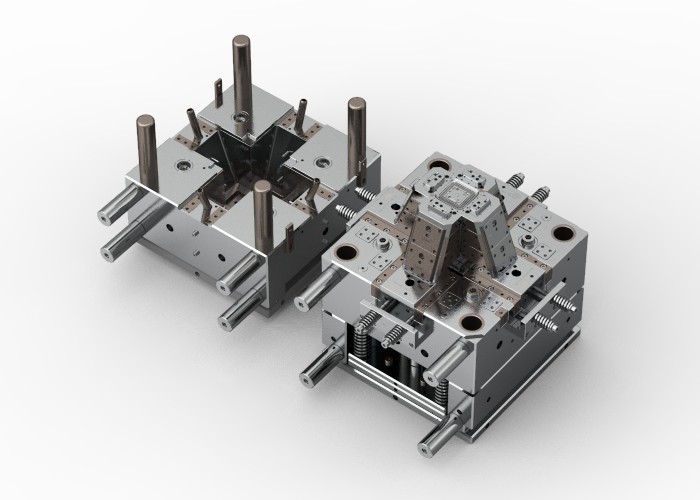

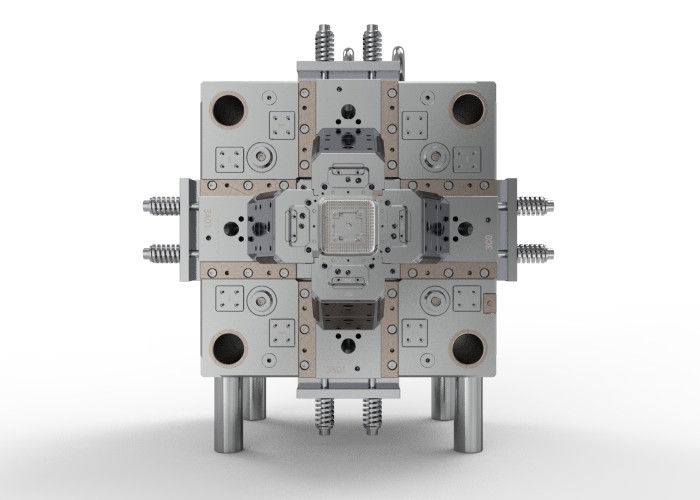

Features: 4 large slides
Tool life: 500k shots
| Surface finish |
Steel of cavity and core |
Gate | |||
| 1. A surface polished to 800# sandpaper and textured | |||||
| 2. A large surface EDM with VDI27# (Makino) |
Harden (1*1/S136) |
Large pin point gate |
|||
| 3. Other large surfaces EDM with VDI30# (Makino) | |||||
| This is a two-plates mold, with LKM standard; harden the surface to ensure higher hardness of the cavity, greatly improving the tool life and anti-wearing performance; with minimized cold slug to meet customer needs. | ||||||

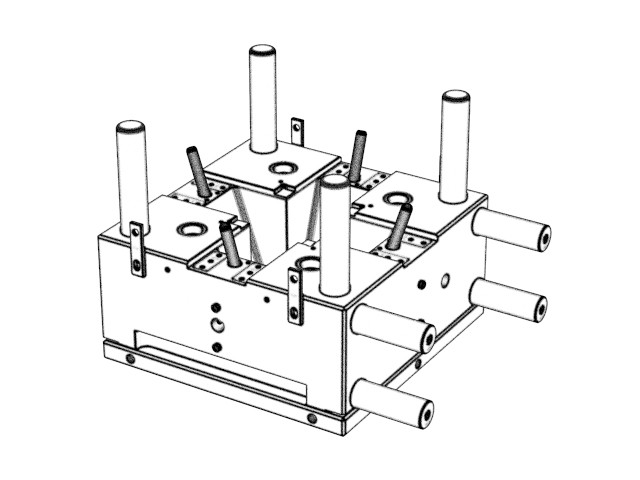

Display diagram
