OEM / ODM ： Single Cavity Injection Mold & Transparent top cover (1*2) No.23392
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Router |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 350 X 400 X 366 | IMM Tonnage | 180T |
|---|---|---|---|
| Mould Base | LKM | Mold Weight | 318KG |
| Standard Mold Base P/N | FCI3040.7010090. | Gate | Pin Point Gate |
| Type | Three-plates Mold | ||
| High Light | 180T Two plate Mold,500k Shots Two plate Mold,LKM Two plate Mold |
||
Product Description
Transparent bottom cover (1*2)
No.23392
| Standard | Gate | Type |
Standard mold base P/N: FCI3040.7010090. |
Net weight |
||
| LKM |
Pin point gate |
Three-plates mold |
Length 350mm |
Width 400mm |
High 366mm |
318kg |
|
Surface finish |
1. A surface EDM with VDI27# (Makino) | IMM Tonnage | ||
| 2. Secondary surface EDM with VDI18# (Makino) | 180T | |||
| 3. Other large surfaces EDM with VDI30# (Makino) | ||||

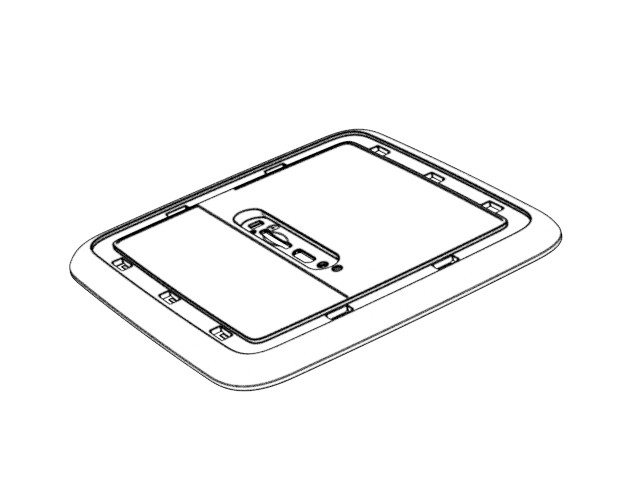

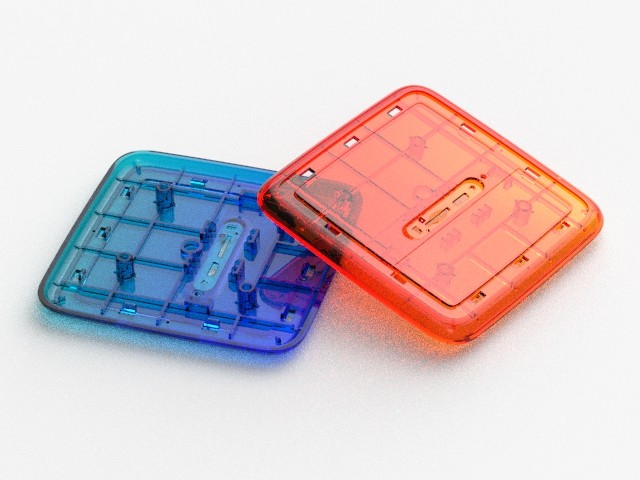

△ Part size: 97.4 * 97.4 * 9.9mm (PC+ABS material, weight about 2.5g)
| Steel of cavity | Harden (1*2/S136) | |
| Steel of core | ||
| The mold is designed with a cold runner, fully considering short cycle time and aesthetic appearance; harden the mold to improve the hardness, anti-fatigue and anti-wearing performance of the cavity; the tool life > 500k shots, the cavity has good fluidity and balanced pressure; the part is well molded with smooth surface and no flow marks. | |||||

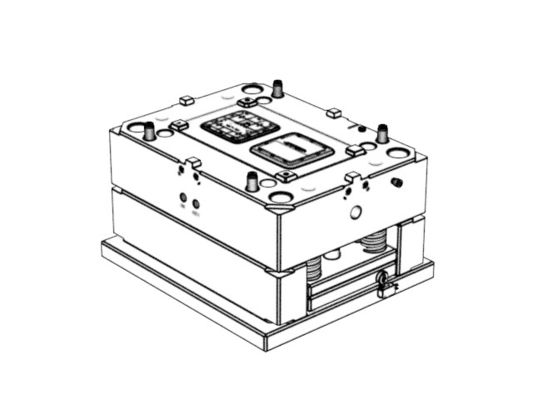

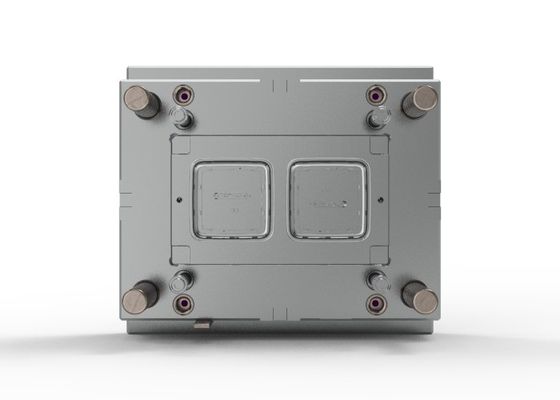

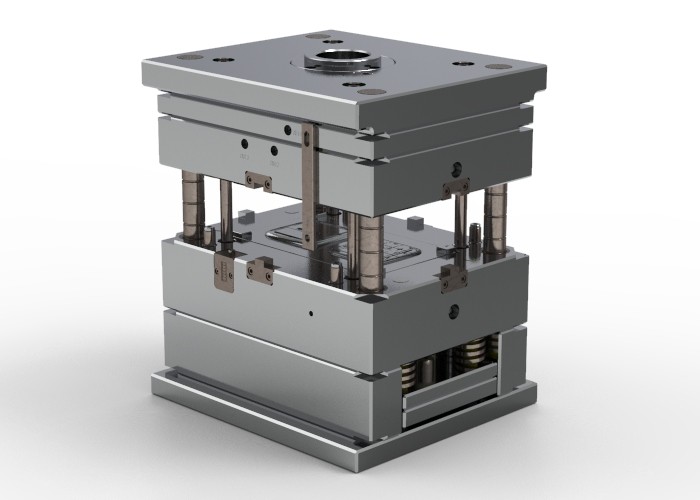

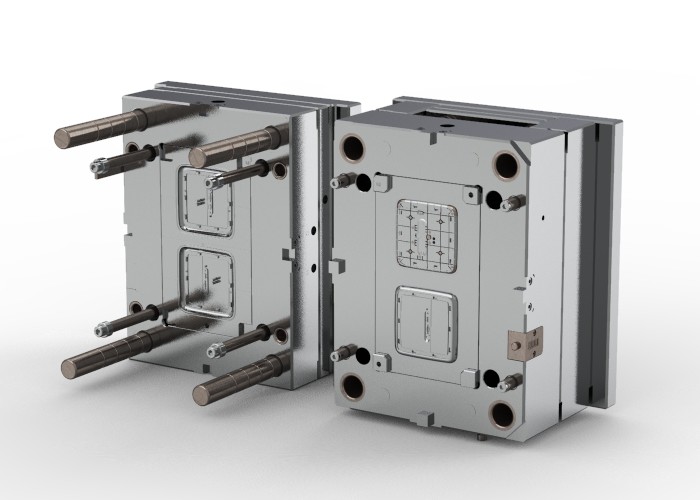

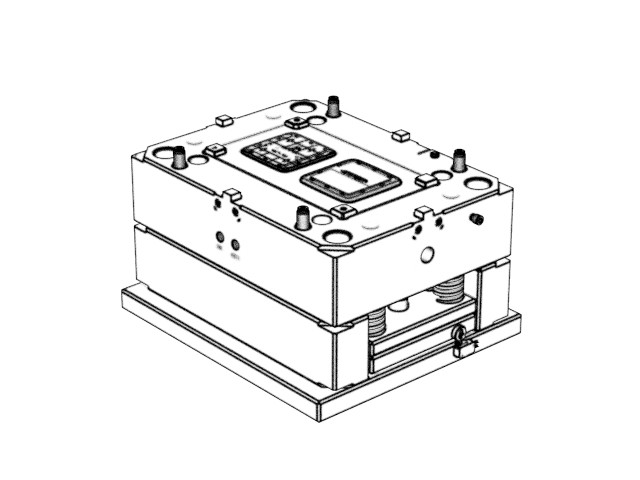

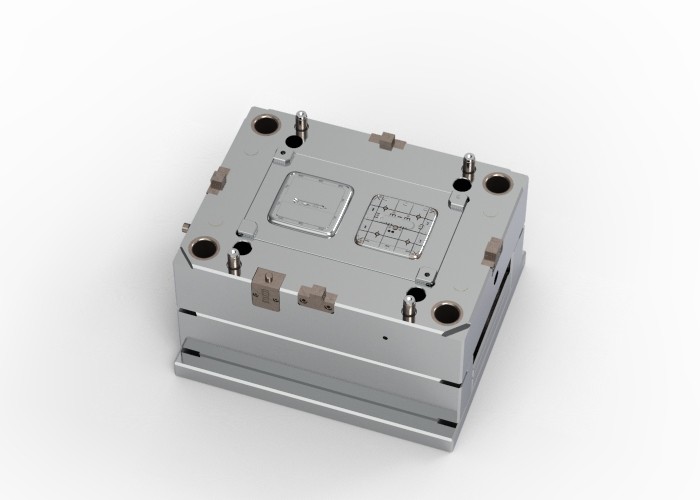

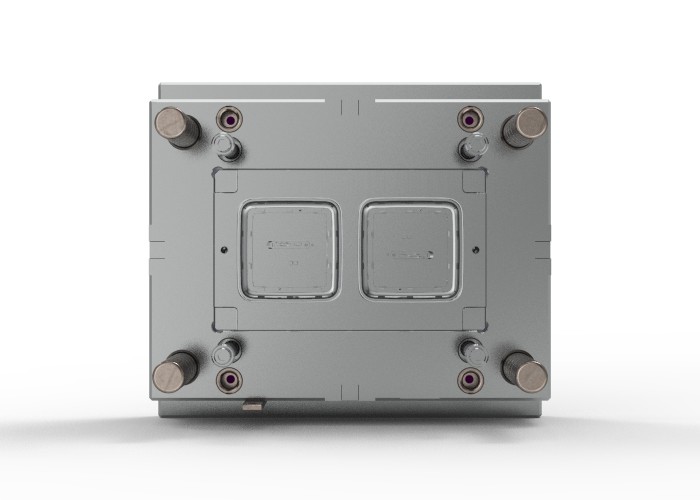

Display diagram
