OEM/ODM ：Custom Plastic Injection Molds / Front cover (1*1) No.22682
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 4 Slides/7 Lifters | Size | 400.00 X 450.00 X 351.00 |
|---|---|---|---|
| IMM Tonnage | 80T | Mold Weight | 399.77KG |
| Design Software | 3D-UG 4.0/ 2D-CAD | Mould Base | LKM |
| Mold Life | 500K Shots | Standard | LKM |
| Mold Type | Three Plate | Runner System | Hot Sprue Cold Runner |
| Highlight | Phone Cover 3 Plate Injection Mold,LKM 3 Plate Injection Mold,500K shots Injection Mold Cold Runner |
||
Product Description

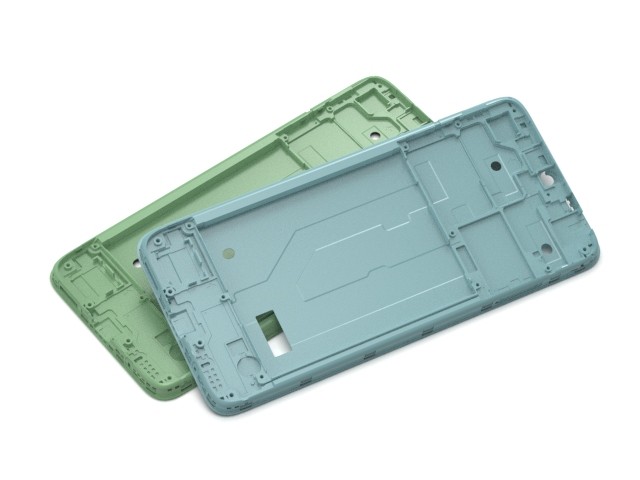

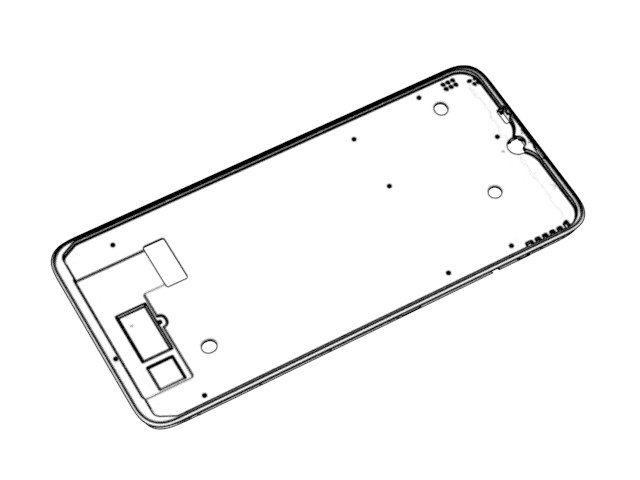

Front cover (1*1)
No.22682
|
Mold size (mm) |
L | W | H | Mold standard | LKM | Type | Three-plates mold |
| 400 | 450 | 351 | |||||
| Mold weight | 399.77kg | 4 slides/7 lifters/cold runner | |||||
| Part weight | 3.8g | Part material: PC+10%GF Part size: 156.5*74.5*7mm | |||||
| Surface finish | VDI 24# | ||
| Steel of cavity and core | Harden with 1*1/S136 |
Tool life ≥ 500k shots

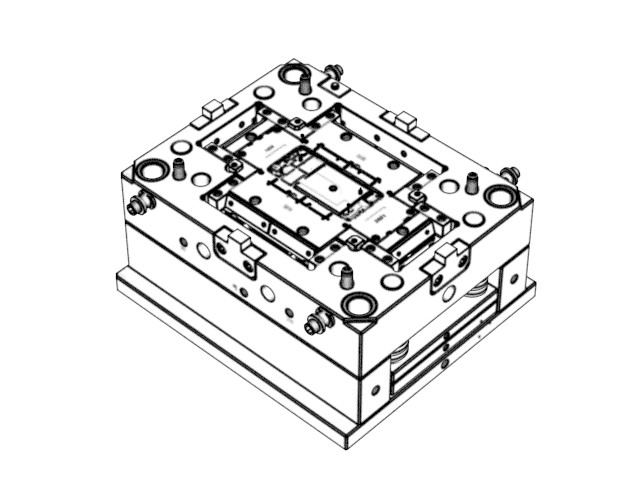

Display diagram
