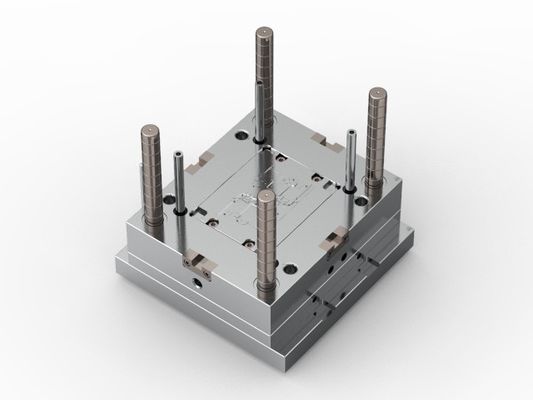

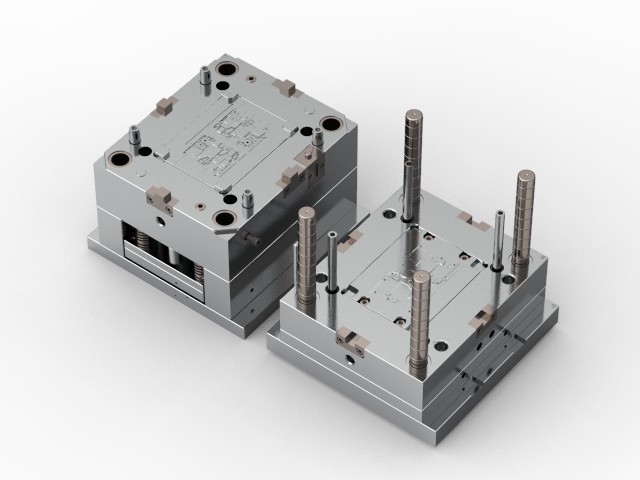

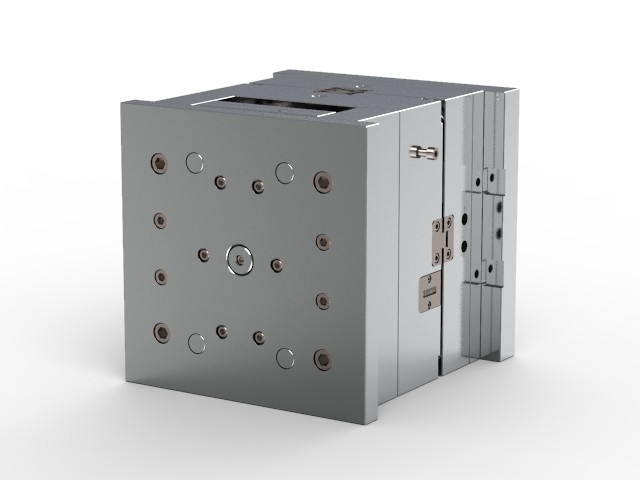

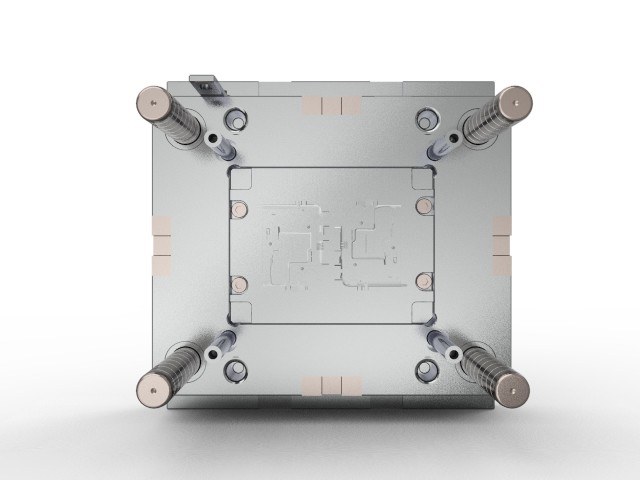

OEM / ODM ： Multi Cavity Injection Mold & Mainboard bracket (1*2) No.22684
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Mobile Phone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 316.000(mm) | IMM Tonnage | 80(T) |
|---|---|---|---|
| Mold Weight | 172.35(KG) | Mould Life | ≥500000 Shots |
| Mould Base | LKM | Design Software | 3D:UG 4.0/2D:CAD |
| Surface Finishing | VDI 30# | Part Material | PC+ABS |
Product Description

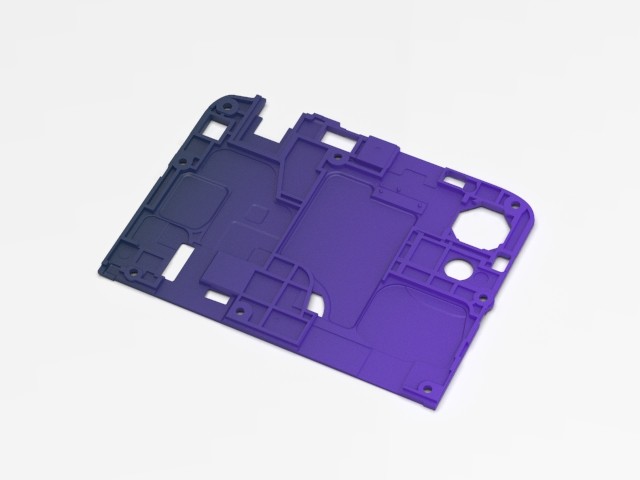

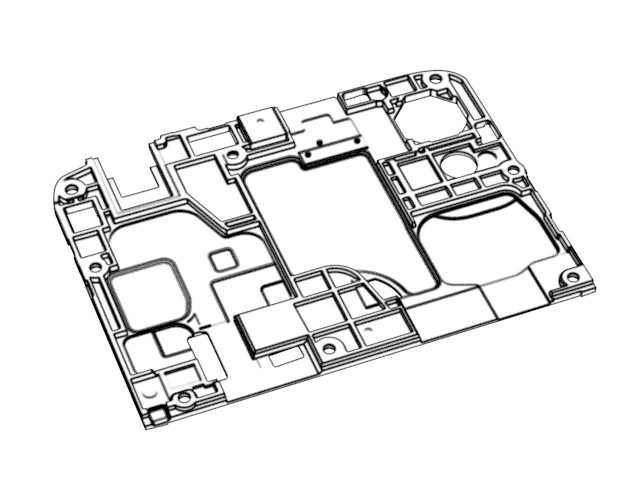

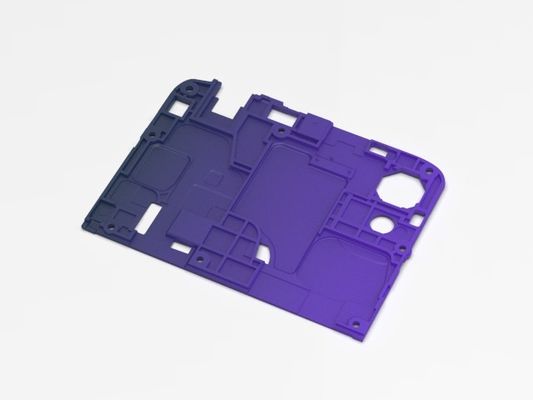

Mainboard bracket (1*2)
No.22684
|
|
||||||||||||||||||||
|
|||||||||||||||||||||
| Mold with pin point gate, with flexible gate position, minimized gate marks, smooth part appearance with clear details | |||||
|
|
|
| Steel of cavity and core | Surface finish | ||||
| Harden with 1*2/S136 | VDI 30# | ||||
|
Hardness ≥ 48HRC, with good polishability and anti-corrosion performance |
Ra 3.2, semi-gloss surface, with slight machining marks |
||||

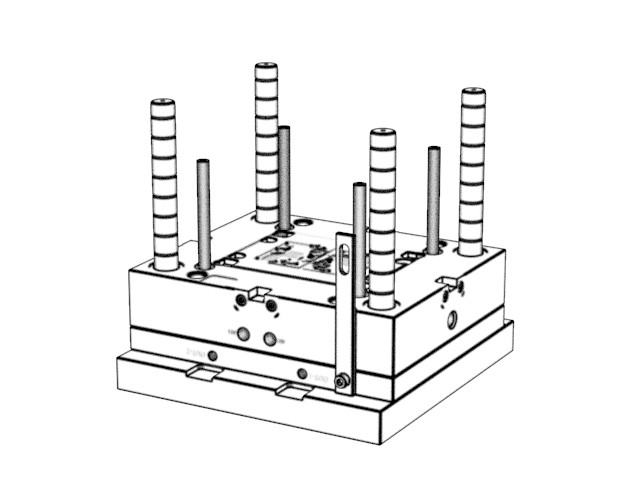

Display diagram
