Shell (1*1) / Cold runner / Two-plates mold No.19014-B
| Place of Origin | Vietnam |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 180 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Cavity Injection Mold | Size | 400 X 400 X 386mm |
|---|---|---|---|
| IMM Tonnage | 180(T) | Mold Weight | 390(KG) |
| Standard | LKM | Slide | 1 |
| Lifter | 8 | Design Software | 3D-UG 4.0/ 2D-CAD |
| Mould Life | 500000 Shots | ||
| High Light | Shell 1x1 Two Plate Mold,Single Cavity Two Plate Mold,Single Cavity Injection Mold 500K Shots |
||
Product Description

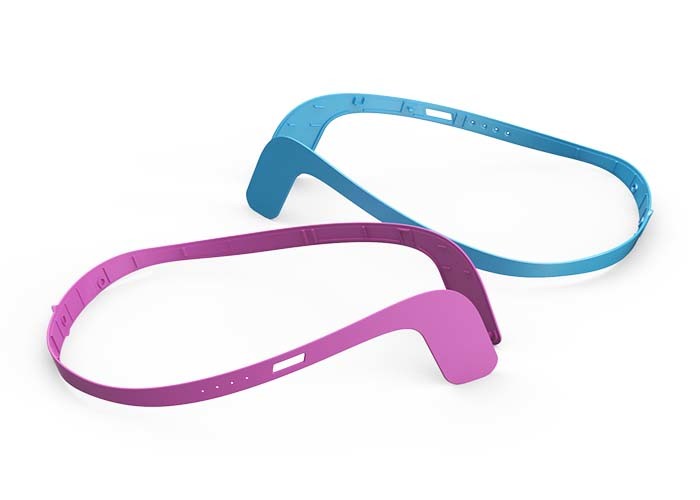

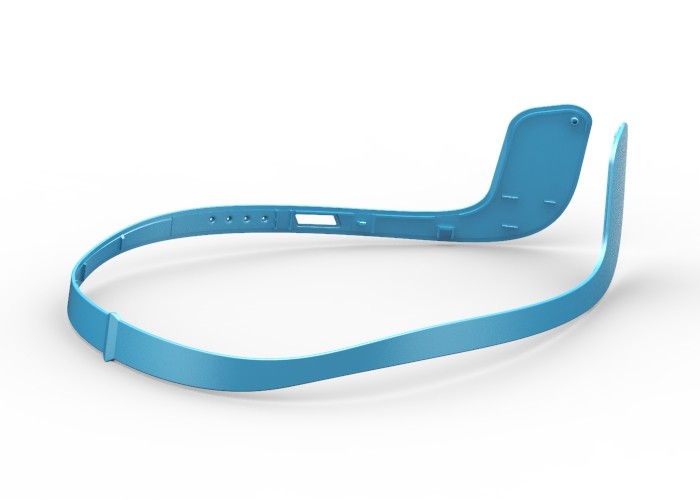

Transparent Shell (1*1)
No.19014-B
This mold is built on a standard GCI3540.90120100 mold base and follows the LKM mold standard.
It has a length of 400mm, a width of 400mm, and a height of 386mm. Additionally, the mold features
1 slide and 8 lifters. The design of the mold allows for the production of high-quality parts with
recision and accuracy.
The mold's robust construction and adherence to industry standards make it ideal for a wide range
of applications.The configuration of 1 slide and 8 lifters helps achieve complex part shapes and
functions, improving production efficiency.
The net weight of mold is 390kg; the IMM tonnage is 180T; the part material is PC; the part size is
130.92 X 165.60 X 62.06mm, and the net weight of part is about 10g
The mold is developed by Chitwing (designed and manufactured)
| Surface finish | Mirror EDM VDI 10# | |||
| Steel of cavity & core | Harden (1*1/S136) | |||
According to the cost-effective requirement and the demand for mass development at low cost,
the mold is designed with two-plates structure, side gate (pin point gate turns to side gate).
A surface mirror EDM with VDI 10#, and harden the cavity and core, so that the mold has
smoother surface, higher hardness, and better anti-wearing performance, a tool life up to
500K shots, short cycle time and minimized cold slug to meet the needs of mass production

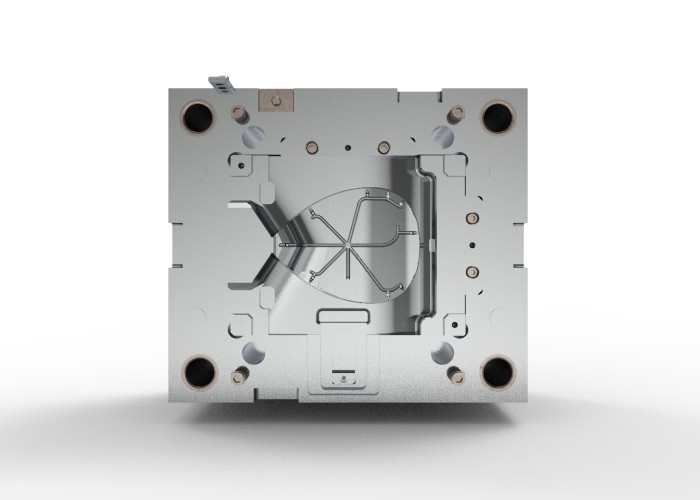

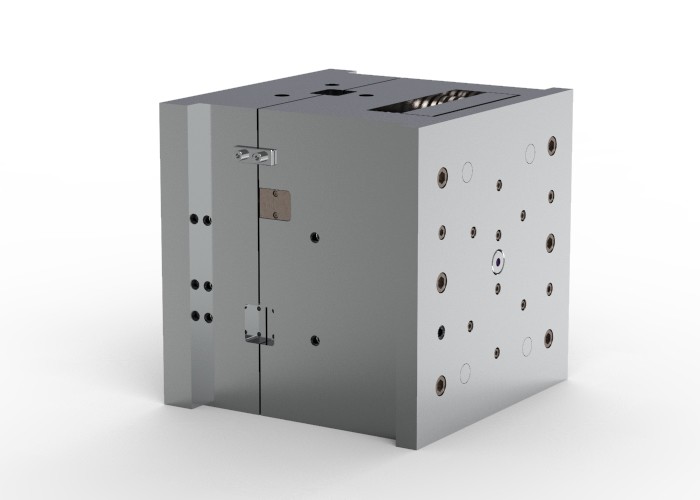

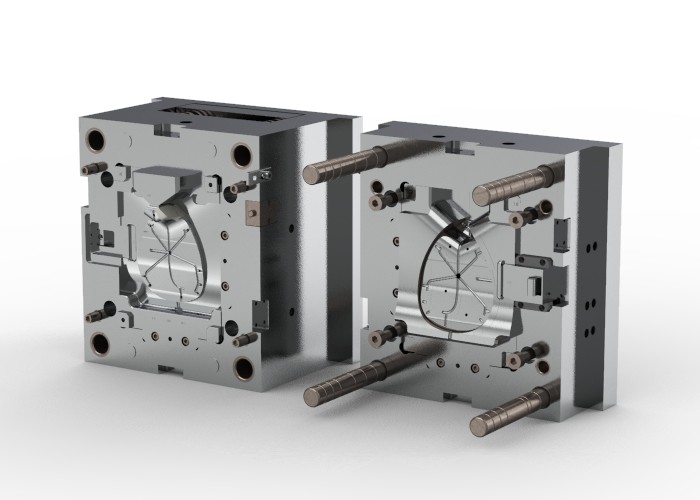

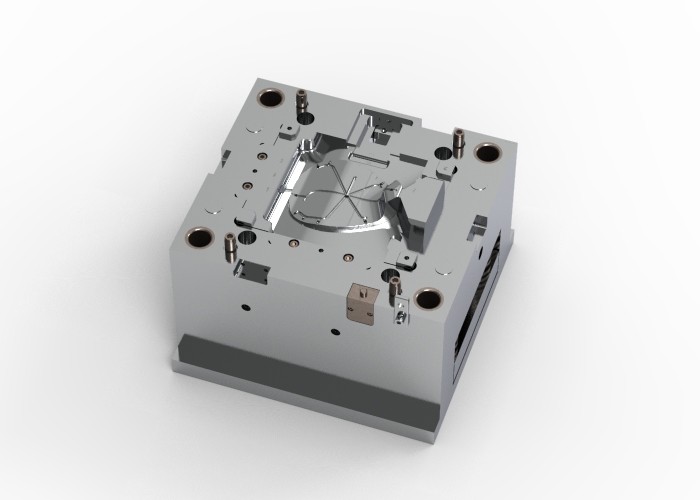

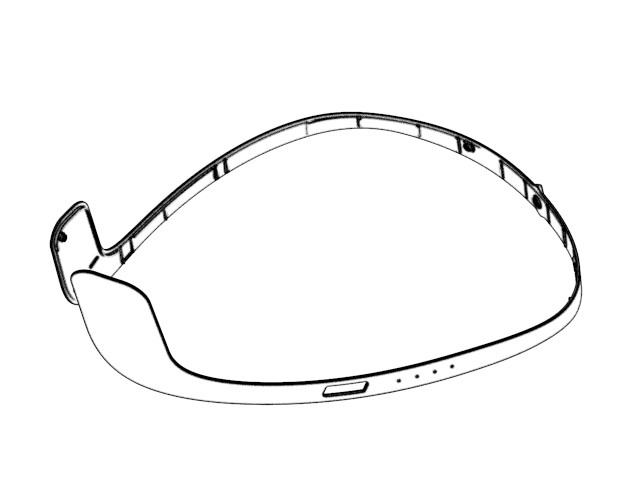

Display diagram
