PC / TPU Inner Housing 1x1 Cold Runner Three Plate Mold No.19015 And 19016 -B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Overear Headphone |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 400.000 X 640.000 X 541.000 | IMM Tonnage | 180T |
|---|---|---|---|
| Mold Weight | 1158KG | Injection/runner Type | Cold Runner |
| Type | Three-plates Mold | Standard | LKM |
| Part Material | PC/TPU | ||
| Highlight | PC Three Plate Mold,TPU Three Plate Mold,Three Plates Double Injection Molding |
||
Product Description
Inner Housing (1*1)
No.19015 & 19016-B

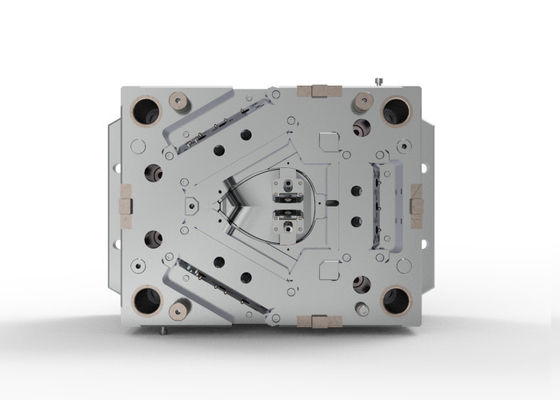

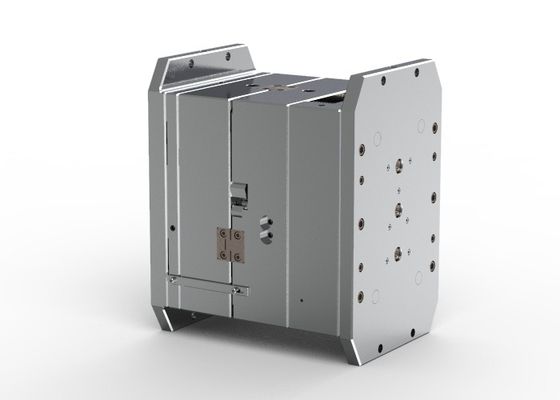

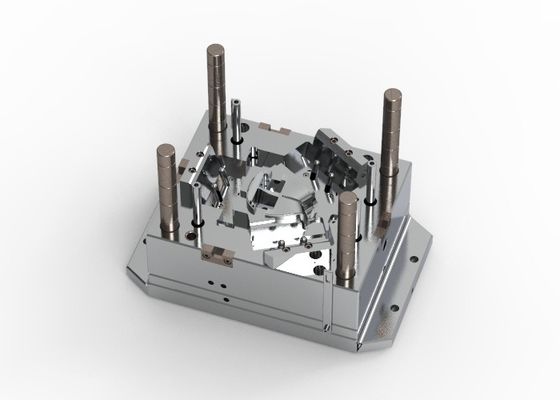

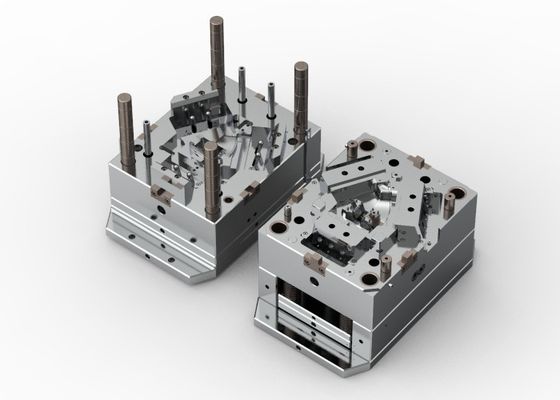

This mold is manufactured by Chitwing and originates from Guangdong, China. It follows
the LKM mold standard and features a pin point gate. The mold is a three-plate mold and
is designed to produce parts made of PC/TPU material. Additionally, the mold features 3
slides and 3 lifters.
The design of the mold allows for the production of high-quality parts with precision and
accuracy. The use of a pin point gate helps to minimize waste and reduce the need for
post-processing. The configuration of 3 slides and 3 lifters helps achieve complex part
shapes and functions, improving production efficiency. The three-plate design makes it
easy to remove the molded part and reduces the risk of damage to the part during ejection.
|
Custom mold base P/N: FCI4050.A140B150C130 |
Mold net weight | ||
| 1158kg | |||
| Length | Width | Height | IMM Tonnage |
| 400 | 640 | 541 | 180T |

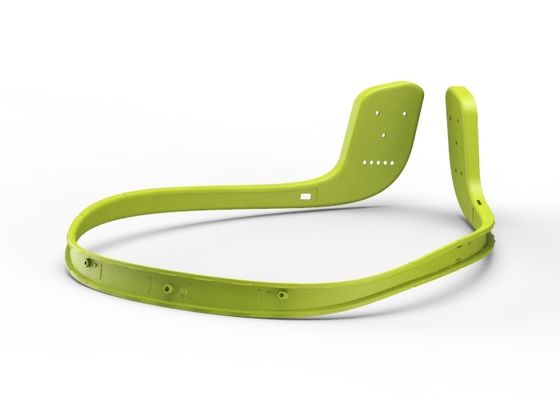

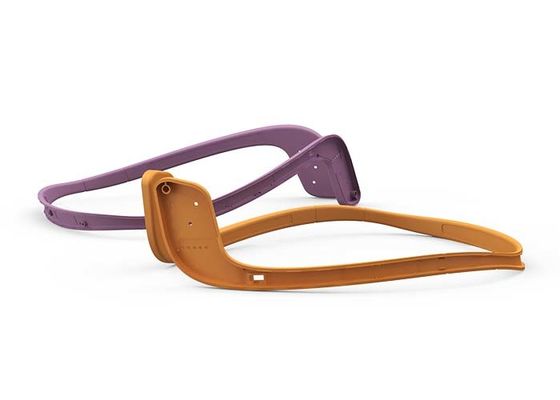

☆ Part size:129.44 X 163.28 X 60.35mm
☆ Part weight:9.84g
Partial surfaces EDM with VDI 18#; harden cavity and core with 1*1/S136 to have high hardness
and anti-wearing performance; with uniform wall thickness, stable molding pressure, smooth cavity
surface, free of damage, and low in roughness. The molded parts not sticking with the mold.
Tool life > 500k shots. The molded part features fine details, uniform thickness, and with
precise thread.

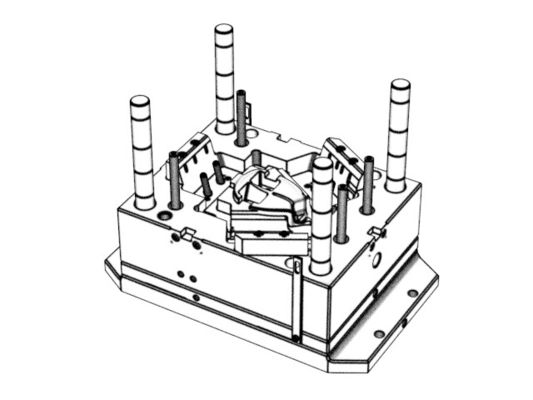

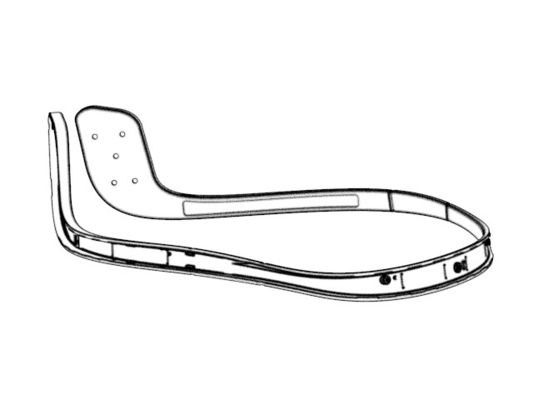

Display diagram
