Transparent Medical Instrument PN-2055 (1*2) / Two-plates mold / Cold runner No.21061-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | 1 Slide | Size | 300.000 X 450.000 X 356.000 |
|---|---|---|---|
| IMM Tonnage | 130T | Mold Weight | 310kg |
| Standard Mold Base P/N | CI2545.609080. | Gate | Cashew Gate |
| Type | Two-plates Mold | Injection/runner Type | Hot Runner |
| Part Material | PC |
Product Description
Transparent Medical
Instrument PN-2055 (1*2)
No.21061-B
|

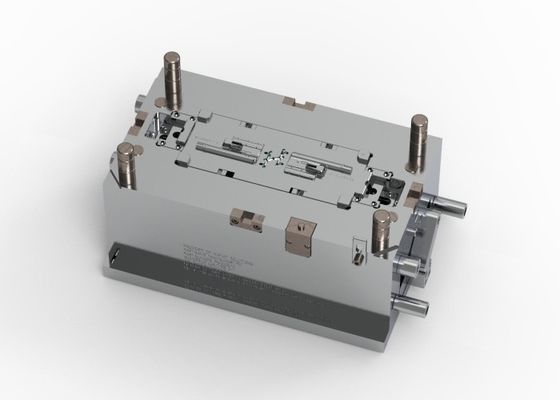

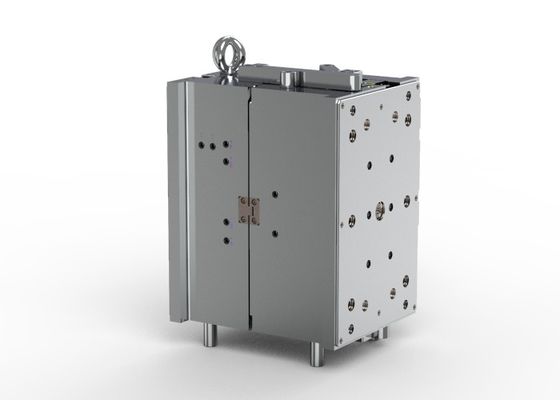

Standard mold base CI2545.609080, mold size 300x450x356mm, LKM standard, cashew gate, and two-plates mold with simple structure, low cost and easy to fill. |
|||||||
The mold has a net weight of 310 kg and the injection molding machine (IMM) has a tonnage
of 130 metric tons. Selected surfaces of the mold are polished to MT11010/SPI-A2/SPI-B2
standards, enhancing its smoothness, corrosion resistance, and wear resistance. This polishing
facilitates the injection molding process, allowing for easy demolding and reduced cycle times.
...

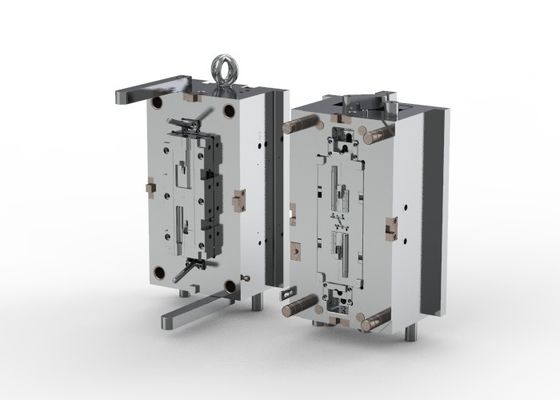

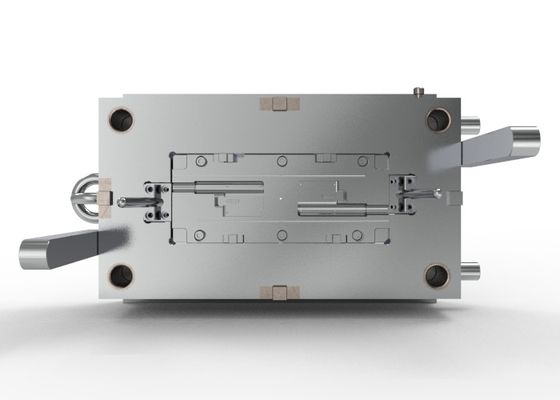

The cavity and core of the mold are made of 1*2/S136 mold steel, which improves hardness
and corrosion resistance, reducing maintenance costs and ensuring continuous mass

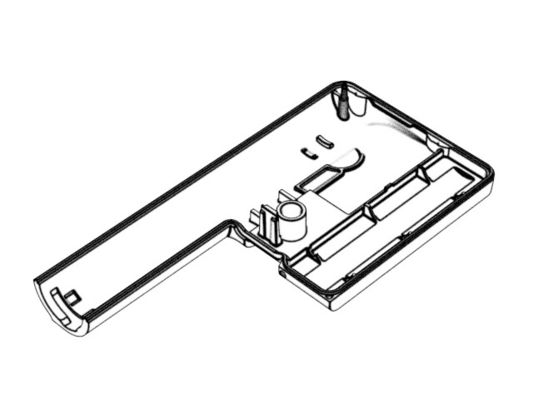

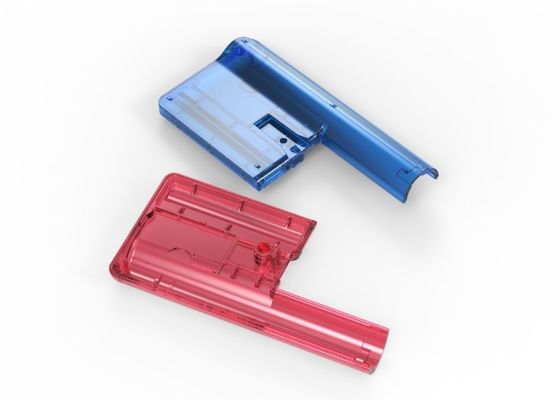

production. The mold uses a hot runner system and one slide. The injection-molded part
is made of PC material, with a net weight of 7.3g and dimensions of 43.75mm in length,
85.49mm in width, and 14.88mm in height.

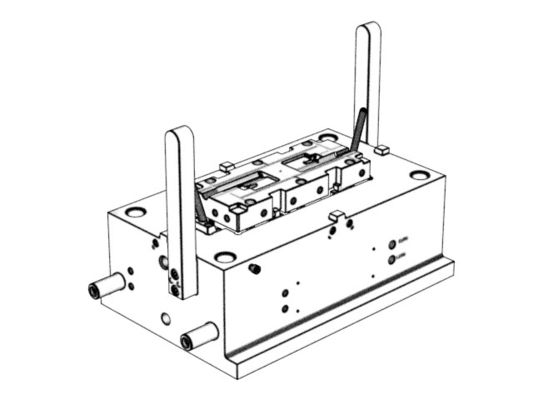

Display diagram
