Transparent Medical Instrument PN-1500 (1*4) / Two-plates mold / Cold runner No.21062-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | VR Products |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Standard Mold Base | CI2025.507070 |
| Standard | LKM | Part Material | POM |
| Part Net Weight | 0.03g |
Product Description

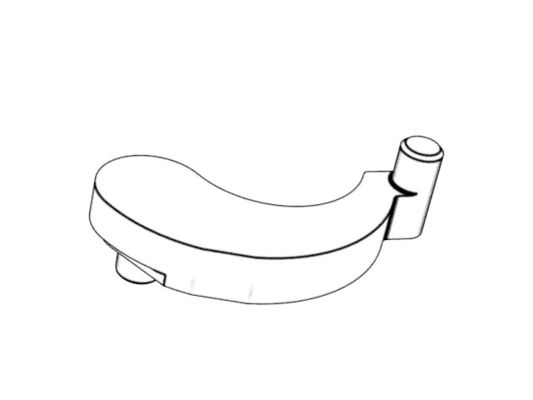

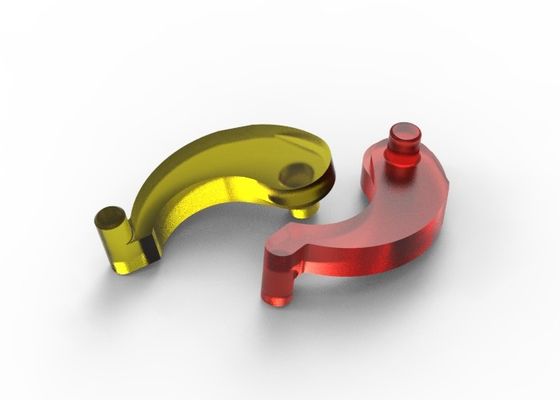

Transparent Medical
Instrument PN-1500 (1*4)
No.21062-B

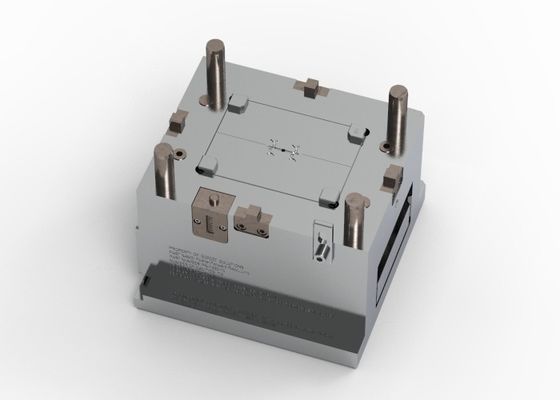

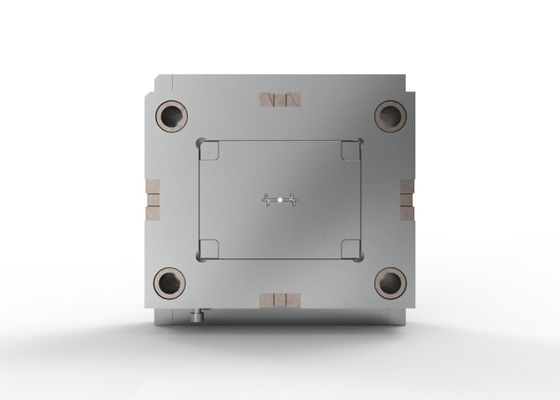

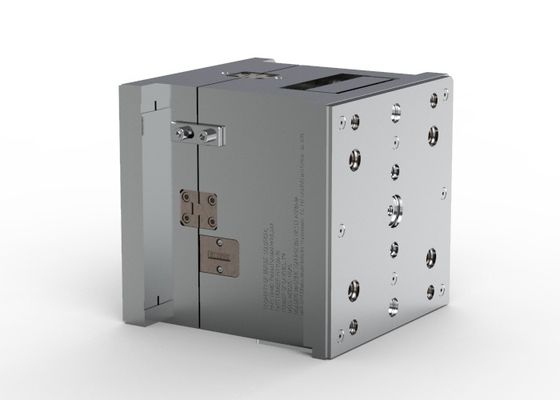

The mold brand is Chitwing, manufactured in Guangdong, China, and is designed for a
100T injection molding machine. The mold surface is polished to SPI B-2, and the cavity
and core are hardened using 1*4/S136, providing better smoothness, higher hardness,
corrosion resistance, and wear resistance. This prevents POM from sticking to the mold,
allowing for easy demolding and smooth part surfaces. The tool life is greatly extended
(up to 500k shots), making it suitable for mass production. The mold is well-fitted and
free of flow marks and gas marks.
| Mold size: 250 X 250 X 251mm | Standard mold base P/N: CI2025.507070 | |||||

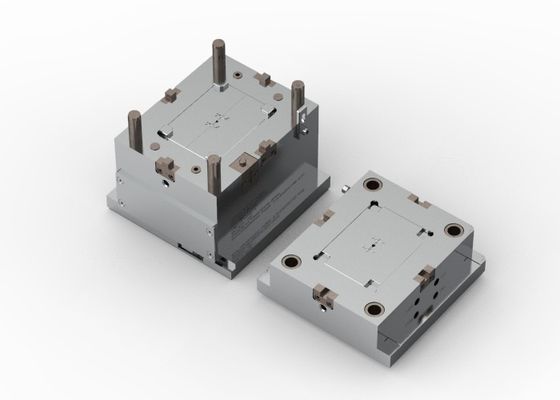

| Standard: LKM Net weight: 94 kg | Type: Two-plates mold | |||||
|
|

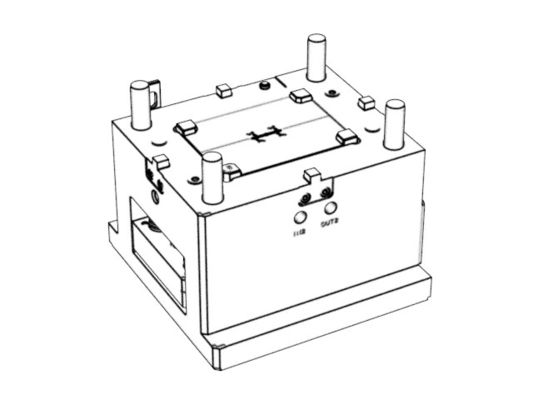

Display diagram
