OEM / ODM ： Precision Injection Molding & Medical Instrument PN-1692 (1*4) No.21067-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Type | Two-plates Mold |
| Gate | Side Gate | Part Material | PP+40% GF |
| Runner Type | Cold Runner |
Product Description
Medical Instrument PN-1692 (1*4)
No.21067-B
Standard mold base P/N: CI2025.507070.

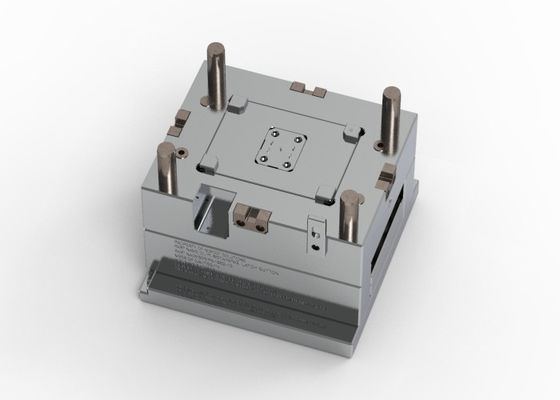

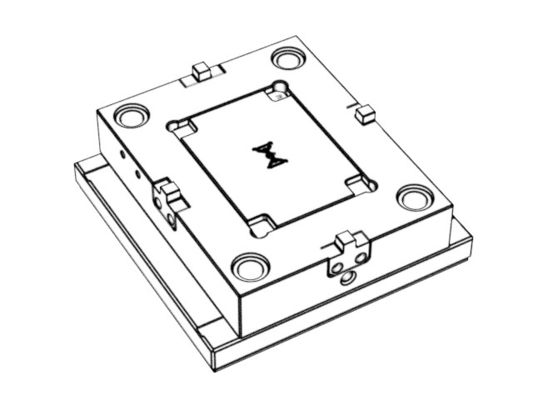

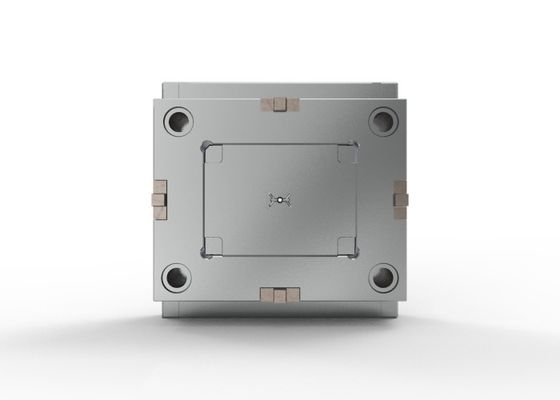

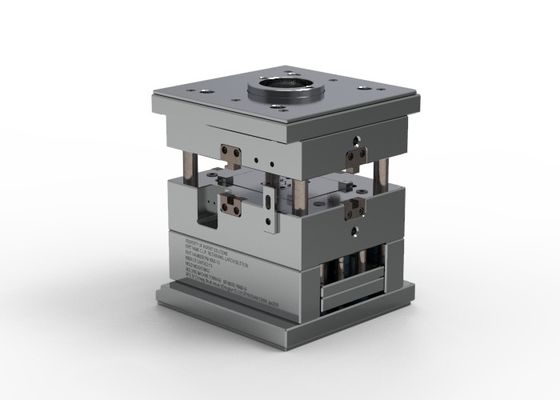

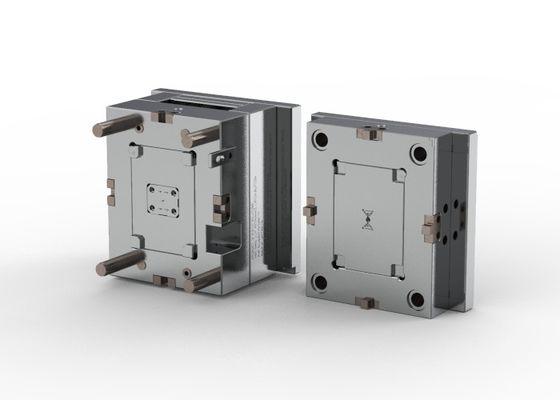

| This product is a two-plate mold with a side gate. It is made of LKM standard material and has a net weight of 94 kg. The injection part is made of PP+40% GF material and uses a cold runner system. The surface finish is polished to SPI B-2 standard. The cavity and core are made of hardened steel with 1*4/S136. |

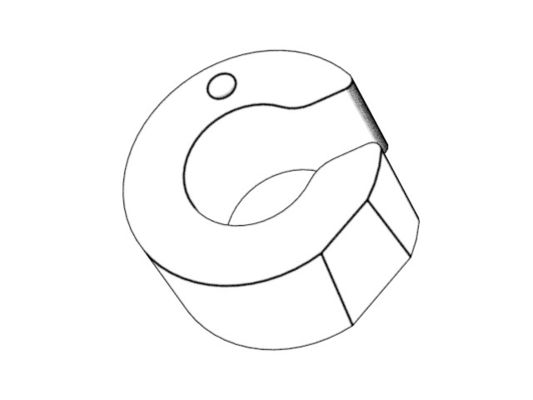

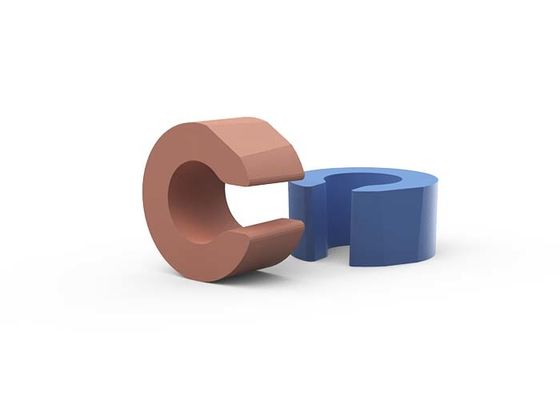

| This product has an injection part weight of 0.01g and a size of 3.34 X 3.47 X 1.72mm. It requires an injection molding machine with a tonnage of 100T. The mold dimensions are Length 250(mm) x Width 250(mm) x Height 251(mm). |
