OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2059 (1*4) No.21068-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 271.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 141kg | Mold Base | Standard (CI2530.508080) |
| Type | Two-plates Mold | Gate | Side Gate |
| Surface Finish | SPI A3 | Steel Of Cavity And Core | Harden (1*4/S136) |
Product Description
Medical Instrument PN-2059 (1*4)
No.21068-B

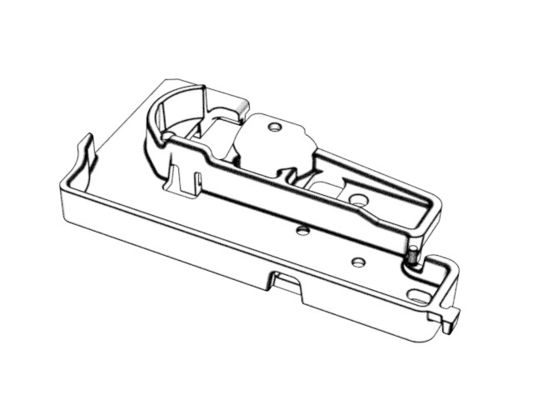

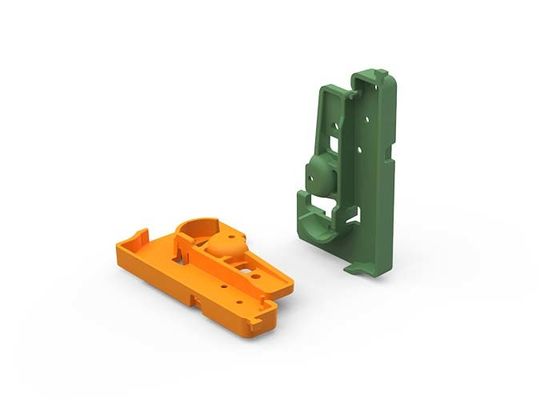

| This product is a two-plate mold featuring a side gate. It boasts a simple structure that is easy to process and degate. The mold base adheres to the standard (CI2530.508080). The mold size measures 300x300x271mm and conforms to the LKM standard. The part material is PC, with a weight of 0.83g and dimensions of 22.20 X 37.08 X 6.75mm. The mold itself weighs 141kg. |
|
The tonnage of the Injection Molding Machine (IMM) for this mold is 100T, and it employs a Cold Runner system for the injection/runner type.
|
| The mold surface is polished to an SPI-A3 finish, ensuring a smooth surface on the molded product without sticking to the cavity wall. The cavity and core are hardened using 1*4/S136 for enhanced hardness, corrosion resistance, and wear resistance. This ensures a tool life of up to 500k shots, meeting the demands of continuous mass production. |

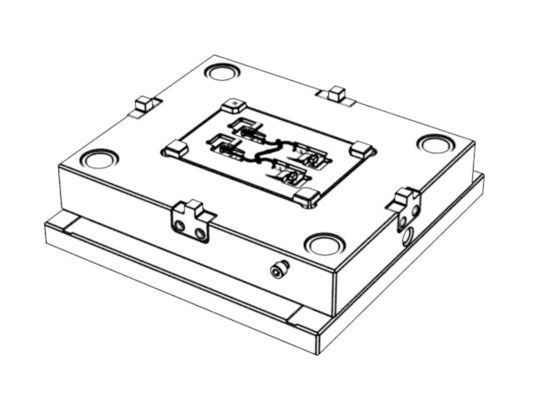

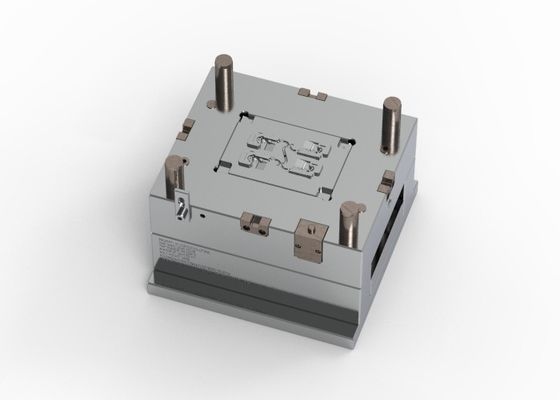

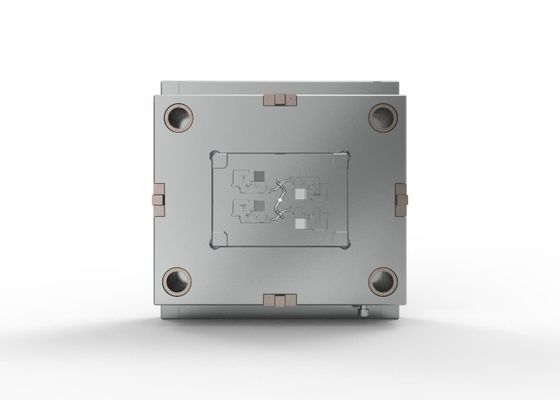

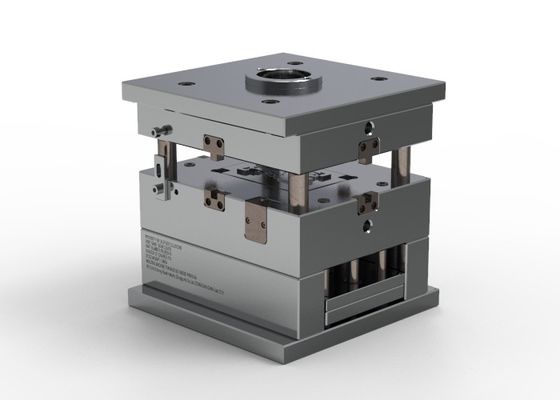

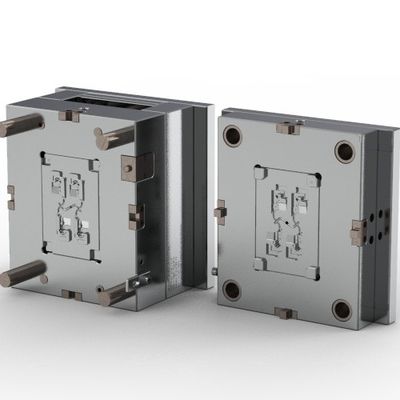

Display diagram
