OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-2059 (1*4) No.21068-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 300.000 X 300.000 X 271.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 141kg | Mold Base | Standard (CI2530.508080) |
| Standard | LKM | Injection/Runner Type | Cold Runner |
| Design Software | 3D-UG 4.0/ 2D-CAD | Mould Life | 500，000 Shots |
Product Description
Transparent Medical Instrument PN-2059 (1*4)
No.21068-B

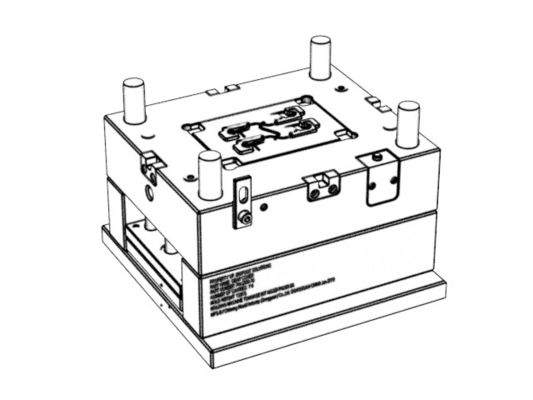

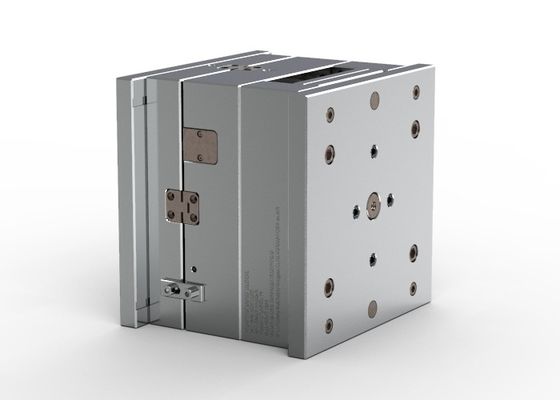

The profile picture has a size of 300x300x271mm and adheres to the LKM standard.
The mold base used is the standard CI2530.508080.

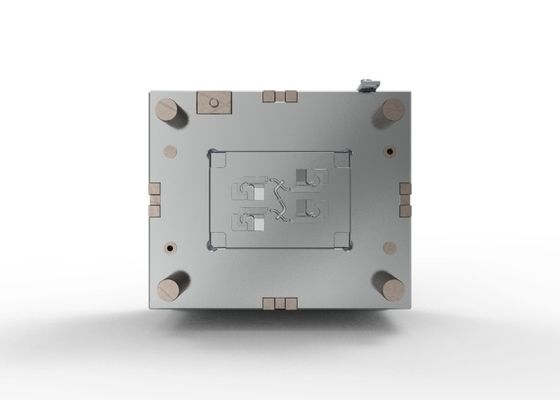

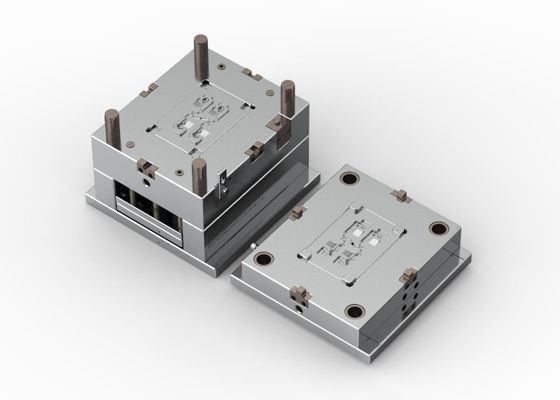

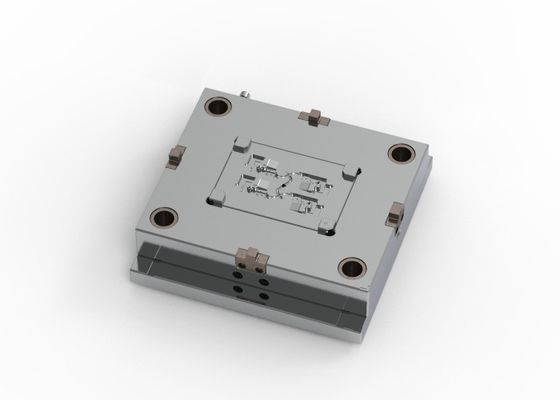

| The two-plate mold with a side gate has a weight of 141 kg and requires a 100T injection molding machine (IMM) tonnage. It is designed for molding PC, which has poor fluidity and requires high-pressure injection. The mold features a two-plate structure and side gate, resulting in a short cycle time, minimal material loss, and easy processing. The cavity and core are made of hardened steel (1*4/S136) and have a surface finish of SPI A3. |

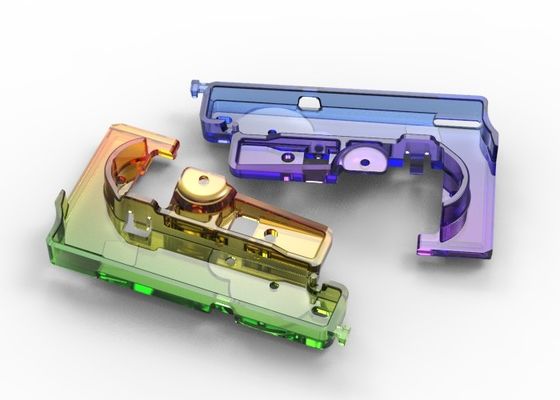

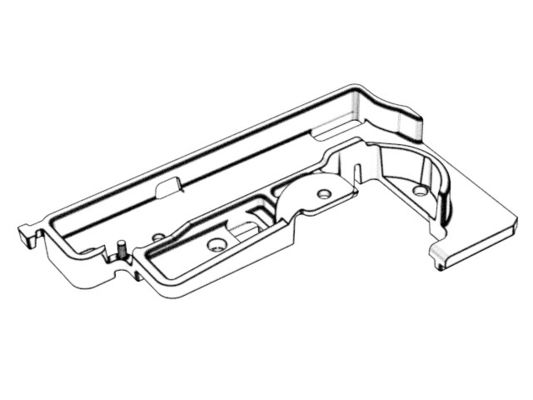

☆ [Part size]: 22.20 X 37.08 X 6.75mm
☆ [Part weight]: 0.83g
Display diagram
