OEM / ODM ： Precision Injection Molding & Medical Instrument PN-1913 (1*4) No.21069-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 94kg | Design Software | 3D-UG 4.0/ 2D-CAD |
| Mould Life | ≥500000 Shots | Runner | Cold Runner |
| Part Size | 26.39 X 30.51 X 4.00mm | Part Weight | 0.45g |
Product Description
Medical Instruments PN-1913 (1*4)
No.21069-B

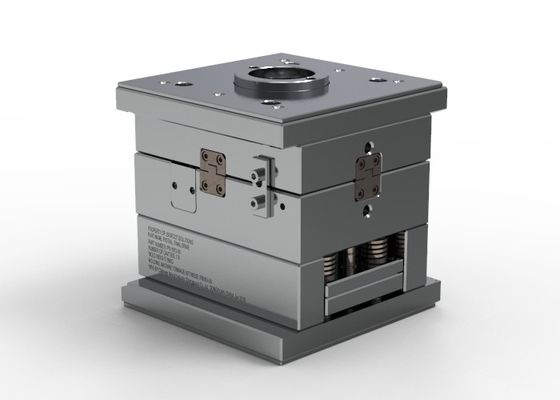

| This product utilizes a standard mold base (P/N: CI2025.507070) adhering to the LKM standard. The mold has a net weight of 94 kg and a size of 250x250x251mm. |

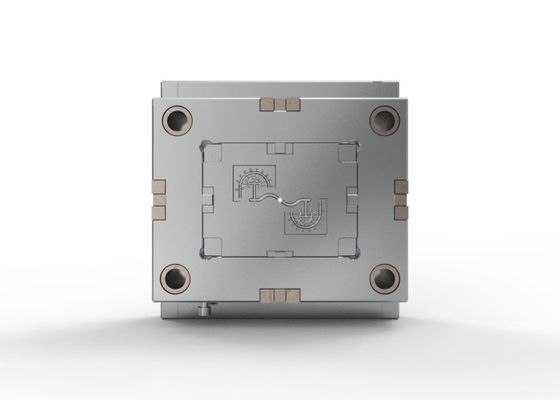

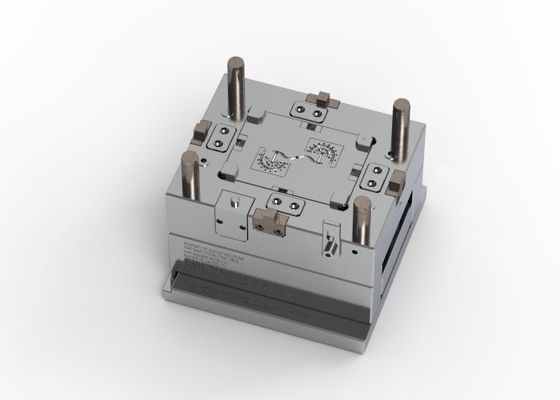

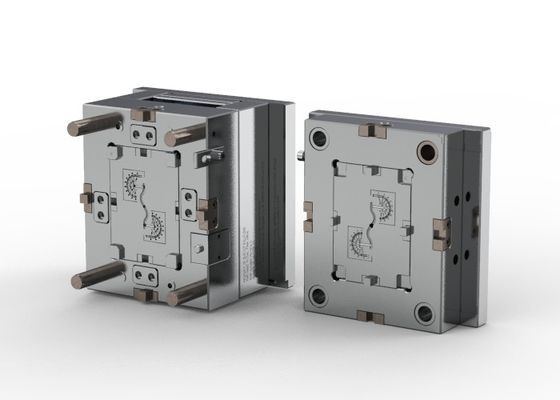

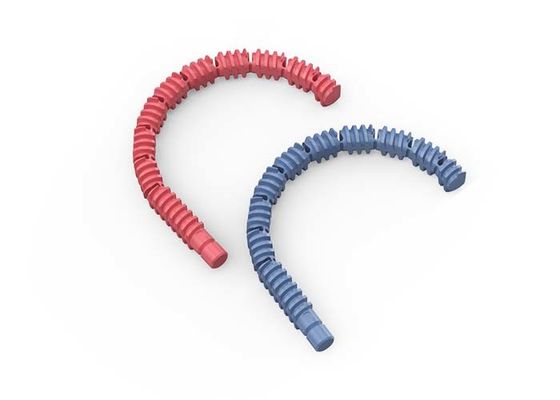

| This two-plate mold features a side gate and is designed for easy filling. The injection part material is PA12+15%GF, with a weight of 0.45g and dimensions of 26.39 X 30.51 X 4.00mm. The mold has auxiliary ejection and side a gate. It a requires 100T injection molding machine (IMM) tonnage. The mold surface is polished to SPI-B1 standard, ensuring improved glossiness and a smooth surface without pits or burrs. The cavity and core are hardened with 1*4/S136 to enhance hardness, anti-corrosion, and anti-wearing performance. |

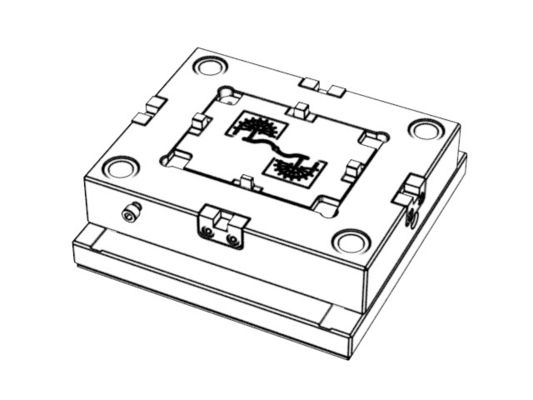

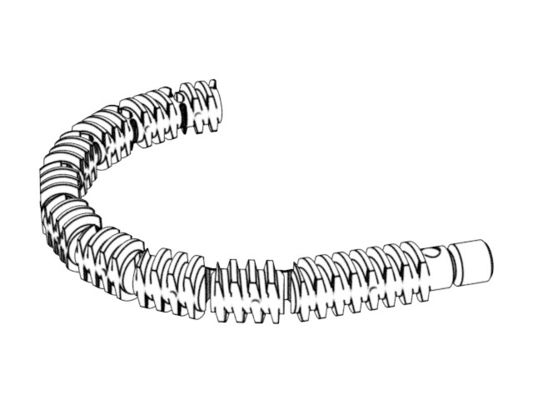

Display diagram
