OEM / ODM ： Precision Injection Molding & Transparent Medical Instrument PN-1913 (1*4) No.21069-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 250.000 X 250.000 X 251.000 | IMM Tonnage | 100 T |
|---|---|---|---|
| Mold Weight | 94kg | Standard Mold Base P/N | CI2025.507070 |
| Part Material | PA12+15%GF | Part Weight | 0.45g |
| Type | Two-plates Mold |
Product Description

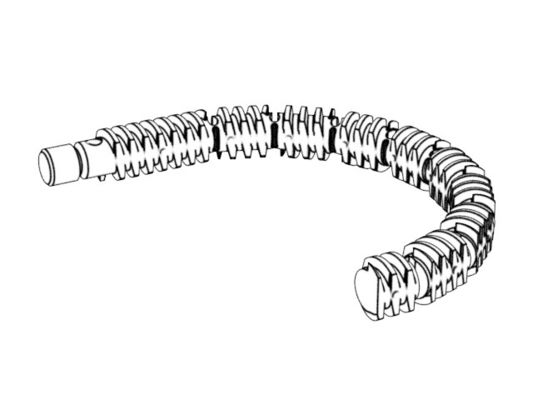

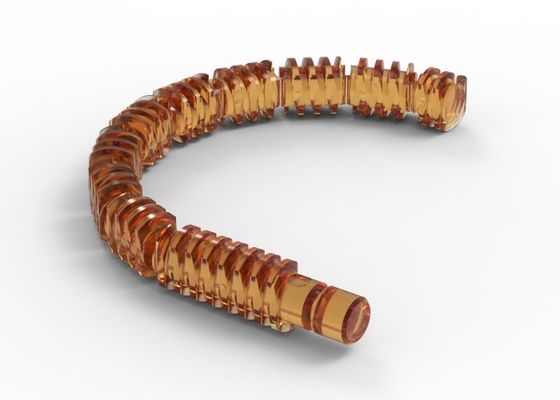

Transparent Medical Instrument PN-1913 (1*4)
No.21069-B

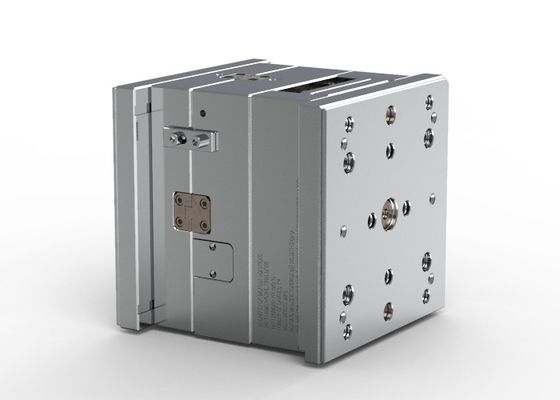

| This product is a with moldplate- two a standard mold base (P/N: CI2025.507070) adhering to the LKM standard. The mold base has a size of L250xW250xH250 and a net weight of 94 kg. The injection part material used is PA12+15%GF. |

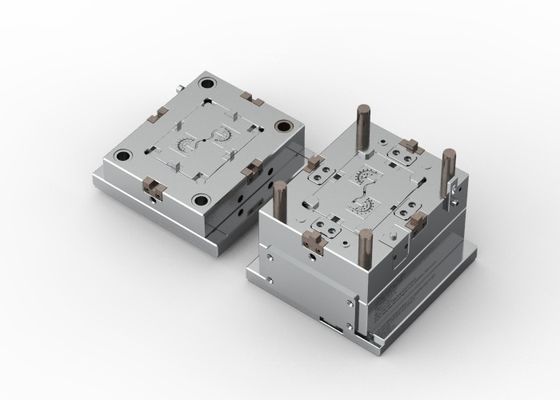

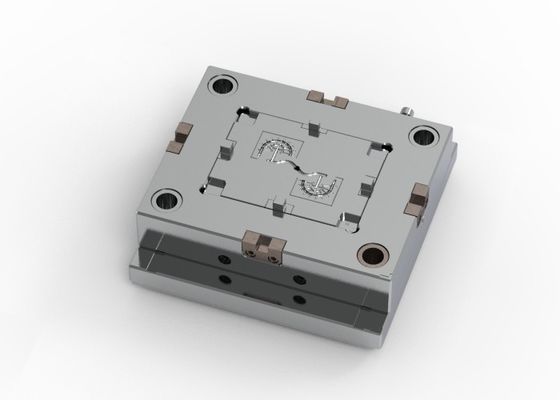

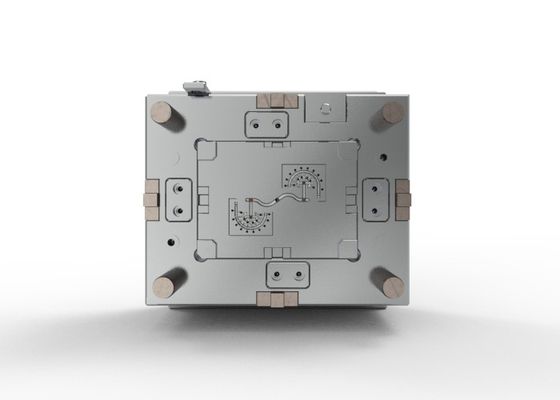

| This is a two-plates mold developed (designed and manufactured) by Chitwing with side gate according to the part appearance characteristics and cost-effective requirements. The mold is easy to fill, with minimized loss of material. The surface polished to SPI-B1; harden the cavity and core with 1*4/S136 to improve the hardness, anti-corrosion and anti-wearing performance; with assisted demolding, short cycle time, reducing the labor cost | ||||||
| The injection molding)MIM ( machine tonnage required for this product is 100T. The weight of the injection part is 0.45g, and its size measures 26.39 X 30.51 X 4.00mm. |

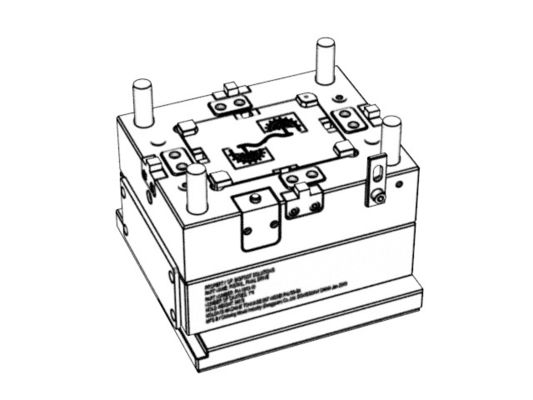

Display diagram
