OEM / ODM ： Precision Injection Molding & Medical Instrument PN-2105 (1*4) No.21071-B
| Place of Origin | China |
|---|---|
| Brand Name | Chitwing |
| Certification | ISO 9001:2015 |
| Model Number | Armamentarium |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | The mold is packaged with a wooden box and placed on a wood pallet. |
| Delivery Time | 30 day(s) |
| Payment Terms | L/C, T/T |
| Supply Ability | 200 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size | 320.000 X 350.000 X 326.000 | IMM Tonnage | 100T |
|---|---|---|---|
| Mold Weight | 225kg | Part Weight | 0.12g |
| Type | Three-plates Mold | Slide | 2 |
| Gate | Pin Point Gate | Steel Of Cavity And Core | Harden With 1*4/S136 |
| Harden With 1*4/S136 | PC | ||
| High Light | Medical Instrument Three Plates Mold,Medical Instrument Precision Injection Molding |
||
Product Description
Medical Instrument PN-2105 (1*4)
No.21071-B

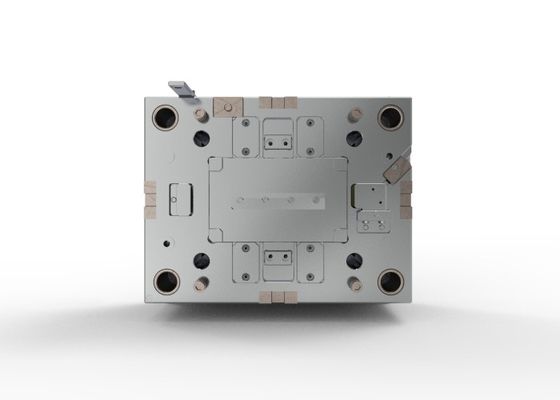

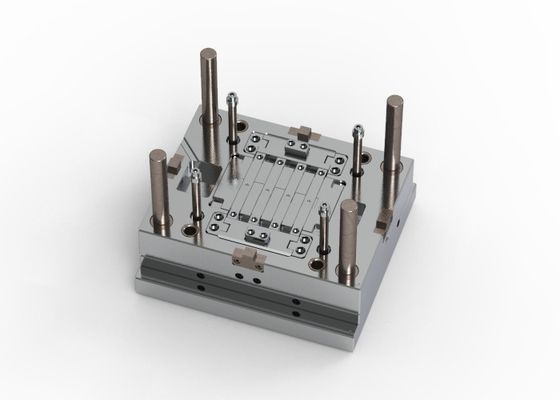

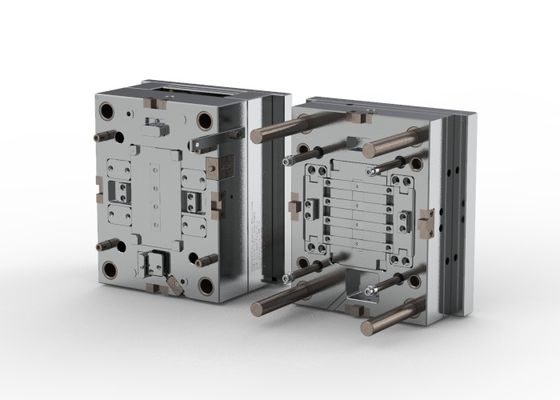

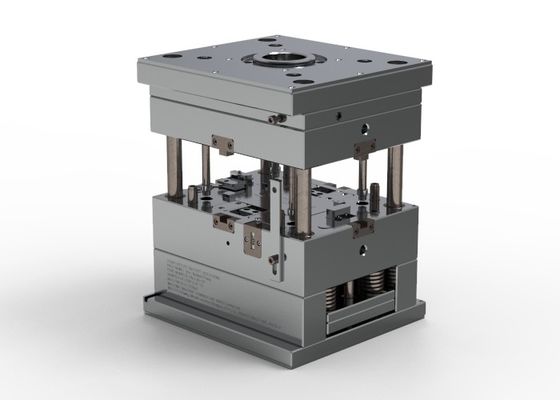

| This product is a three-plate mold with a hot runner, designed for short cycle times and minimal material loss. The mold base is standard (P/N: FCI2735 609080) and adheres to the LKM standard. The mold size is [Length]: 320mm, [Width]: 350mm, [Height]: 326mm and it features 2 slides. The hot runner ensures the melt fills the cavity evenly, resulting in parts with stable quality, low demolding residual stress, and minimal part deformation. The tool life is up to 500k shots, making it suitable for automatic mass production. |

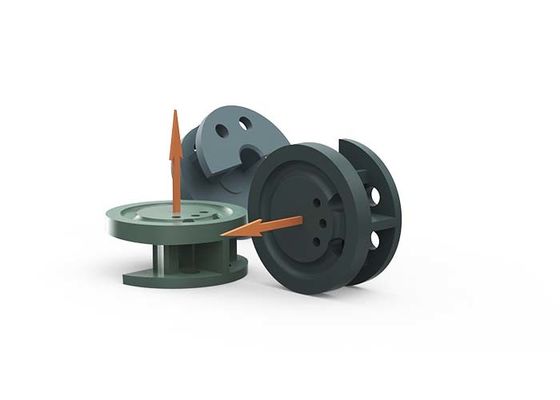

| This product features a pinpoint gate and requires a 100T injection molding machine (IMM) tonnage. The part material is PC, and the surface is polished to SPI B-2 standard. The cavity and core of the mold are hardened with 1*4/S136. The mold has a net weight of 225 kg, while the part weight is 0.12g. The part size measures 9.24 X 9.24 X 4.00mm. |

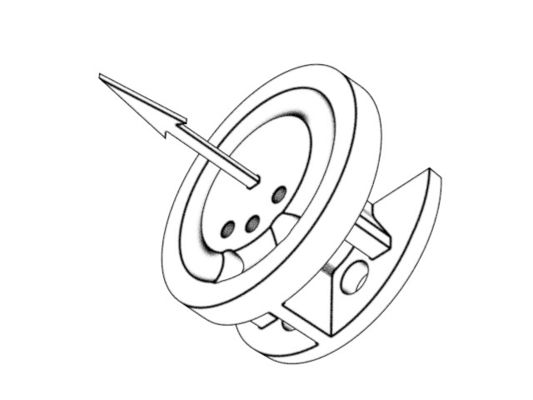

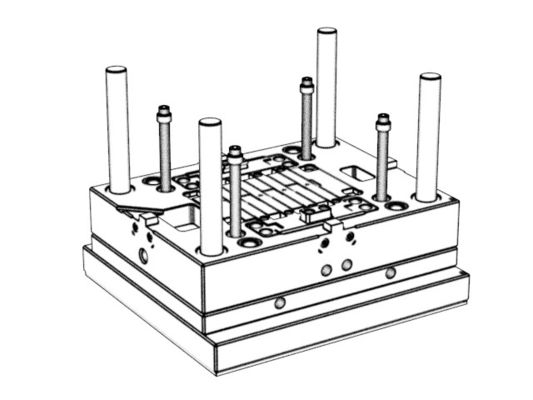

Display diagram
